EAQL029ML
LED safety luminaire for surface mounting on the ceiling and illuminating escape and emergency routes in accordance with DIN EN 60598-1, DIN EN 60598-222 and DIN EN 1838.
The discreet zinc aluminium ceiling luminaire inconspicuously adapts to the ceiling. The use of diffuser lenses and powerful LED ERT technology achieves optimum light distribution and escape and emergency route illumination. The innovative integrated lens holder with a rapid fitting fixture permits the flexible use of various lens types depending on the specific application.
Control and monitoring via central power supply system. The innovative integrated lens holder with a rapid fitting fixture permits the flexible use of various lens types. Using the right lens allows the distribution of light to be matched perfectly to the application and simplifies illumination which satisfies all relevant standards. A round lens and hall lens are supplied with every luminaire, allowing it to be adapted perfectly to the respective mounting situation. Other lenses, such as a spotlight lens, beam lens or H lens, are available as options.
Product data
Recommended areas of application
DOWNLOADS
Accessories

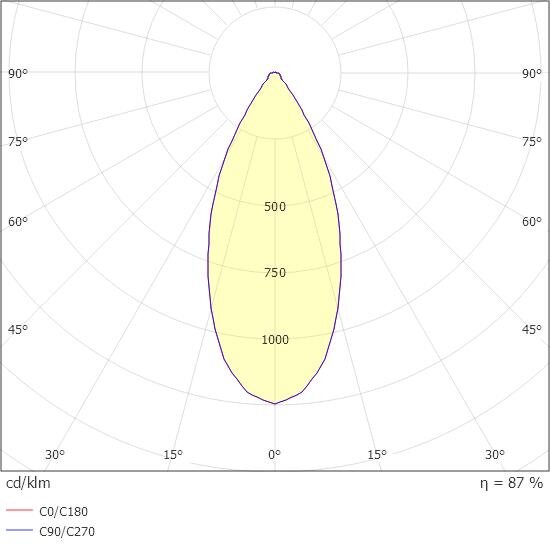

text.product-details.lighting-technologie-data
| Mounting height |  |
 |
 |
 |
|---|---|---|---|---|
| 2.5 | 2.30 | 4.60 | 4.60 | 2.30 |
| 3 | 2.70 | 5.40 | 5.40 | 2.70 |
| 3.5 | 3.00 | 6.20 | 6.20 | 3.00 |
| 4 | 3.30 | 7.20 | 7.20 | 3.30 |
| 4.5 | 3.50 | 7.80 | 7.80 | 3.50 |
| 5 | 3.70 | 8.40 | 8.40 | 3.70 |
| 5.5 | 3.90 | 9.00 | 9.00 | 3.90 |
| 6 | 4.10 | 9.60 | 9.60 | 4.10 |
| 6.5 | 4.30 | 10.00 | 10.00 | 4.30 |
| 7 | 4.50 | 10.40 | 10.40 | 4.50 |
| 7.5 | 4.70 | 10.80 | 10.80 | 4.70 |
| 8 | 4.80 | 11.20 | 11.20 | 4.80 |
| 8.5 | 4.90 | 11.60 | 11.60 | 4.90 |
| 9 | 5.00 | 12.00 | 12.00 | 5.00 |
| 9.5 | 5.00 | 12.40 | 12.40 | 5.00 |
| 10 | 5.10 | 12.80 | 12.80 | 5.10 |
| 10.5 | 5.10 | 13.00 | 13.00 | 5.10 |
| 11 | 5.10 | 13.40 | 13.40 | 5.10 |
| 11.5 | 5.10 | 13.60 | 13.60 | 5.10 |
| 12 | 5.00 | 13.80 | 13.80 | 5.00 |
| 12.5 | 5.00 | 14.00 | 14.00 | 5.00 |
| 13 | 4.90 | 14.20 | 14.20 | 4.90 |
| 13.5 | 4.80 | 14.20 | 14.20 | 4.80 |
| 14 | 4.70 | 14.40 | 14.40 | 4.70 |
| 14.5 | 4.50 | 14.40 | 14.40 | 4.50 |
| 15 | 4.40 | 14.40 | 14.40 | 4.40 |
| 15.5 | 4.20 | 14.40 | 14.40 | 4.20 |
| 16 | 3.90 | 14.40 | 14.40 | 3.90 |
| 16.5 | 3.60 | 14.20 | 14.20 | 3.60 |
| 17 | 3.30 | 14.20 | 14.20 | 3.30 |
| 17.5 | 3.00 | 14.00 | 14.00 | 3.00 |
| 18 | 2.40 | 14.00 | 14.00 | 2.40 |
| 18.5 | 1.70 | 13.80 | 13.80 | 1.70 |
| 19 | 0.00 | 13.60 | 13.60 | 0.00 |
| 19.5 | 0.00 | 13.40 | 13.40 | 0.00 |
| 20 | 0.00 | 13.00 | 13.00 | 0.00 |
