WFXW519CC

Exit sign Centralised power supply systems
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Modern emergency exit sign wall luminaire in a square format.

For identifying escape and emergency routes. As an option, the luminaire can be used to identify other adjoining rooms.

The high level of protection can be ensured thanks to the easy-to-mount bayonet catch, making the luminaire suitable for varied use.

Control and monitoring via central 24 V low-power system. The requested pictogram (arrow to the right, left, up or down) is supplied as standard.


Product data

Luminaire type
Exit sign
Insulation class
3
Mounting
Wall mounting
Supply
Centralised power supply systems
Recognition distance
30 m
Monitoring
CoreCompact 24 (CC)
Pictograph
acc. to Specification
Bridging time
CPS
Illuminant
LED
Battery
/
Housing material
Polycarbonate
Operating mode
Non-maintained / maintained
Housing color
White
Input voltageAC
24 V
Protection type (IP)
IP65
Power max.
5,1 W
Impact resistance (IK)
4
Power maintained
5,1 W
Certification
WEEE, CE, D-Sign
Power non-maintained
0,4 W
Ambient temperature maintained mode
-5 °C to 40 °C
Ambient temperature non-maintained mode
-5 °C to 40 °C

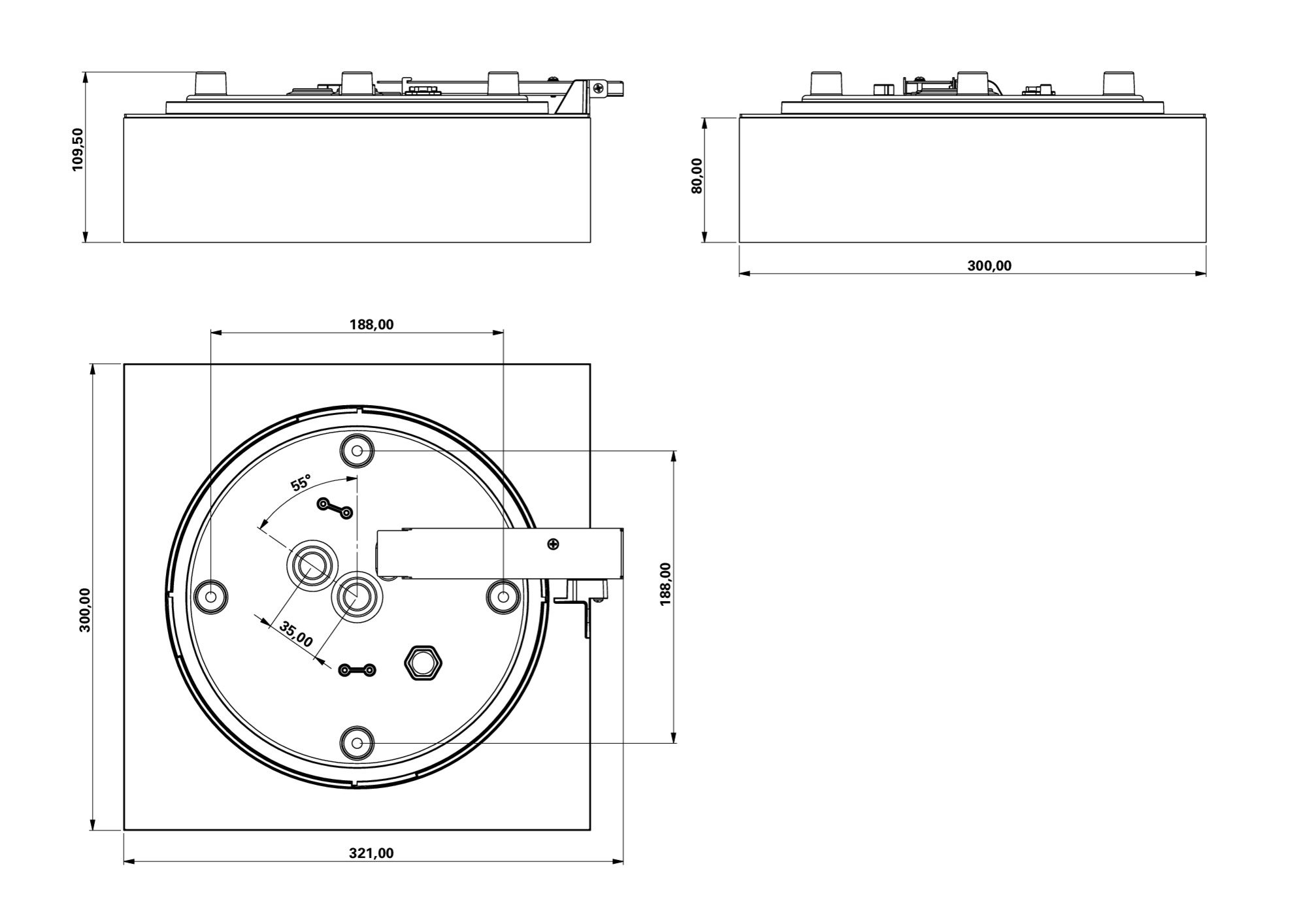

Depth
300 mm
Width
300 mm
Height
110 mm
Weight
1.3
Weight incl. packaging
1.55
Connection cross-section
2.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
No
Luminous flux mains
520 lm
Luminous flux emergency
520 lm
Customs tariff number
94056180
EAN
4260682157706
Luminaire type
Exit sign
Mounting
Wall mounting
Recognition distance
30 m
Pictograph
acc. to Specification
Illuminant
LED
Housing material
Polycarbonate
Housing color
White
Protection type (IP)
IP65
Impact resistance (IK)
4
Certification
WEEE, CE, D-Sign
Insulation class
3
Supply
Centralised power supply systems
Monitoring
CoreCompact 24 (CC)
Bridging time
CPS
Battery
/
Operating mode
Non-maintained / maintained
Input voltageAC
24 V
Power max.
5,1 W
Power maintained
5,1 W
Power non-maintained
0,4 W
Ambient temperature maintained mode
-5 °C to 40 °C
Ambient temperature non-maintained mode
-5 °C to 40 °C
Depth
300 mm
Width
300 mm
Height
110 mm
Weight
1.3
Weight incl. packaging
1.55
Connection cross-section
2.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
No
Luminous flux mains
520 lm
Luminous flux emergency
520 lm
Customs tariff number
94056180
EAN
4260682157706

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
