LSW418SC

Exit sign
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Robust emergency exit sign luminaire made from slim aluminium profile, for wall mounting.

The additional downward light emission helps to illuminate emergency and escape routes.

Automatic monitoring of safety luminaire with SelfControl. The requested pictogram (arrow to the right, left, up or down) is supplied as standard.


Product data

Luminaire type
Exit sign
Insulation class
1
Mounting
Wall mounting
Monitoring
SelfControl (SC)
Recognition distance
56 m
Bridging time
8 h
Pictograph
acc. to Specification
Battery
LiFePO4 6,4 V/1,2 Ah
Illuminant
LED
Power max.
2,6 W
Housing material
Aluminium
Power DS
1,7 W
Housing color
Anodised aluminium
Power BS
0,9 W
Protection type (IP)
IP40
Ambient temperature DS
-5 °C to 40 °C
Impact resistance (IK)
≥ 3
Ambient temperature BS
-5 °C to 40 °C
Certification
WEEE, CE, 5 earys warranty

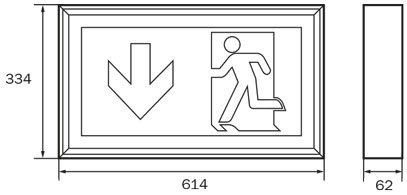

Depth
62 mm
Width
614 mm
Height
334 mm
Weight
2.92
Weight incl. packaging
2.92
Customs tariff number
94056180
EAN
4262483022948
Luminaire type
Exit sign
Mounting
Wall mounting
Recognition distance
56 m
Pictograph
acc. to Specification
Illuminant
LED
Housing material
Aluminium
Housing color
Anodised aluminium
Protection type (IP)
IP40
Impact resistance (IK)
≥ 3
Certification
WEEE, CE, 5 earys warranty
Insulation class
1
Monitoring
SelfControl (SC)
Bridging time
8 h
Battery
LiFePO4 6,4 V/1,2 Ah
Power max.
2,6 W
Power DS
1,7 W
Power BS
0,9 W
Ambient temperature DS
-5 °C to 40 °C
Ambient temperature BS
-5 °C to 40 °C
Depth
62 mm
Width
614 mm
Height
334 mm
Weight
2.92
Weight incl. packaging
2.92
Customs tariff number
94056180
EAN
4262483022948

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
