AXWA509CC-AZ

Exit sign Centralised power supply systems
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Modern zinc die-cast emergency exit sign luminaire for surface mounting on the wall. Thanks to the wall bracket, the escape and emergency routes are identified at right angles to the wall. This can be done on either one or two sides.

It is part of the A series luminaire family, which provides solutions for any mounting and has won the German Design Award for its uniform, straight-line design.

Control and monitoring via central 24 V low-power system. Planning certainty is provided by tool-free, variable use of the pictograms on site. A set of pictograms corresponding to DIN ISO 7010 (arrow to the right, left, up and down) is supplied as standard.


Product data

Luminaire type
Exit sign
Insulation class
2
Mounting
Wall construction flag
Supply
Centralised power supply systems
Recognition distance
30 m
Monitoring
CoreCompact 24 (CC)
Pictograph
Set
Bridging time
CPS
Illuminant
LED
Battery
/
Housing material
Zinc die-cast
Operating mode
Standby circuit / permanent circuit
Housing color
Anthracite
Input voltageAC
24 V
Protection type (IP)
IP40
Power max.
3,4 W
Impact resistance (IK)
≥ 3
Power DS
3,4 W
Certification
WEEE, CE
Power BS
0,4 W
Ambient temperature DS
-5 °C to 40 °C
Ambient temperature BS
-5 °C to 40 °C

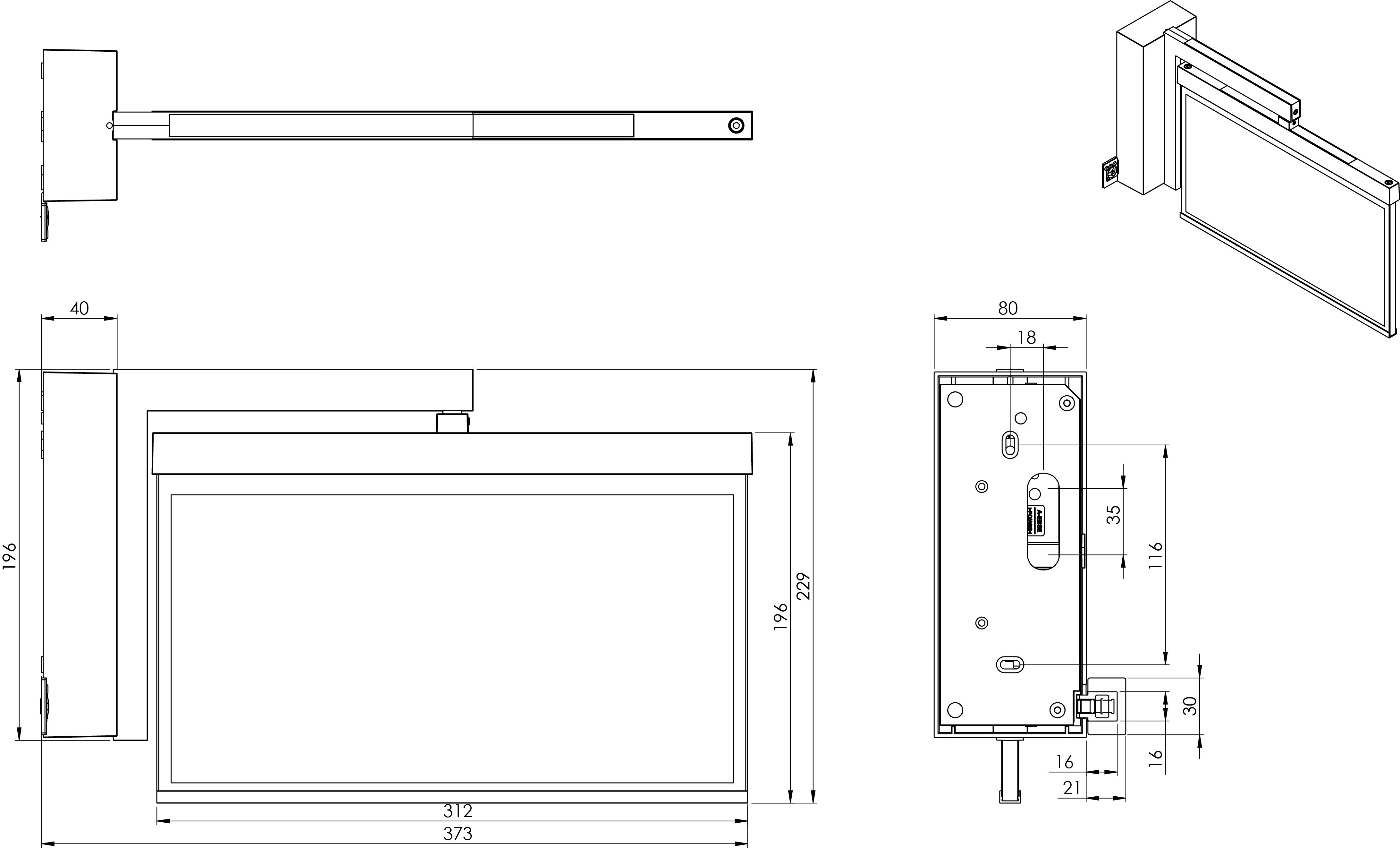

Depth
80 mm
Width
372 mm
Height
229 mm
Weight
1.66
Weight incl. packaging
2.15
Connection cross-section
2.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
No
Luminous flux mains
230 lm
Luminous flux emergency
230 lm
Customs tariff number
94056180
EAN
4260682157003
Luminaire type
Exit sign
Mounting
Wall construction flag
Recognition distance
30 m
Pictograph
Set
Illuminant
LED
Housing material
Zinc die-cast
Housing color
Anthracite
Protection type (IP)
IP40
Impact resistance (IK)
≥ 3
Certification
WEEE, CE
Insulation class
2
Supply
Centralised power supply systems
Monitoring
CoreCompact 24 (CC)
Bridging time
CPS
Battery
/
Operating mode
Standby circuit / permanent circuit
Input voltageAC
24 V
Power max.
3,4 W
Power DS
3,4 W
Power BS
0,4 W
Ambient temperature DS
-5 °C to 40 °C
Ambient temperature BS
-5 °C to 40 °C
Depth
80 mm
Width
372 mm
Height
229 mm
Weight
1.66
Weight incl. packaging
2.15
Connection cross-section
2.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
No
Luminous flux mains
230 lm
Luminous flux emergency
230 lm
Customs tariff number
94056180
EAN
4260682157003

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic


Accessories

  • AM-X-APA
    Surface-mounted adapter AM/AX
