AMR509CC-AZ

Exit sign Centralised power supply systems
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Modern zinc die-cast emergency exit sign luminaire for recessed mounting in the wall and for identifying emergency and escape routes.

It is part of the A series luminaire family, which provides solutions for any mounting and has won the German Design Award for its uniform, straight-line design.

Control and monitoring via central 24 V low-power system. The innovative integrated lens holder with a rapid fitting fixture permits the flexible use of various lens types. Using the right lens allows the distribution of light to be matched perfectly to the application and simplifies illumination which satisfies all relevant standards. A round lens and hall lens are supplied with every luminaire, allowing it to be adapted perfectly to the respective mounting situation. Other lenses, such as a spotlight lens, beam lens or H lens, are available as options.


Product data

Luminaire type
Exit sign
Insulation class
2
Mounting
Recessed wall mounting
Supply
Centralised power supply systems
Recognition distance
22 m
Monitoring
CoreCompact 24 (CC)
Pictograph
Set
Bridging time
CPS
Illuminant
LED
Battery
/
Housing material
Zinc die-cast
Operating mode
Standby circuit / permanent circuit
Housing color
Anthracite
Input voltageAC
24 V
Protection type (IP)
IP40
Power max.
2,8 W
Impact resistance (IK)
≥ 3
Power DS
2,8 W
Certification
WEEE, CE, ENEC
Power BS
0,4 W
Ambient temperature DS
-5 °C - 40 °C
Ambient temperature BS
-5 °C - 40 °C

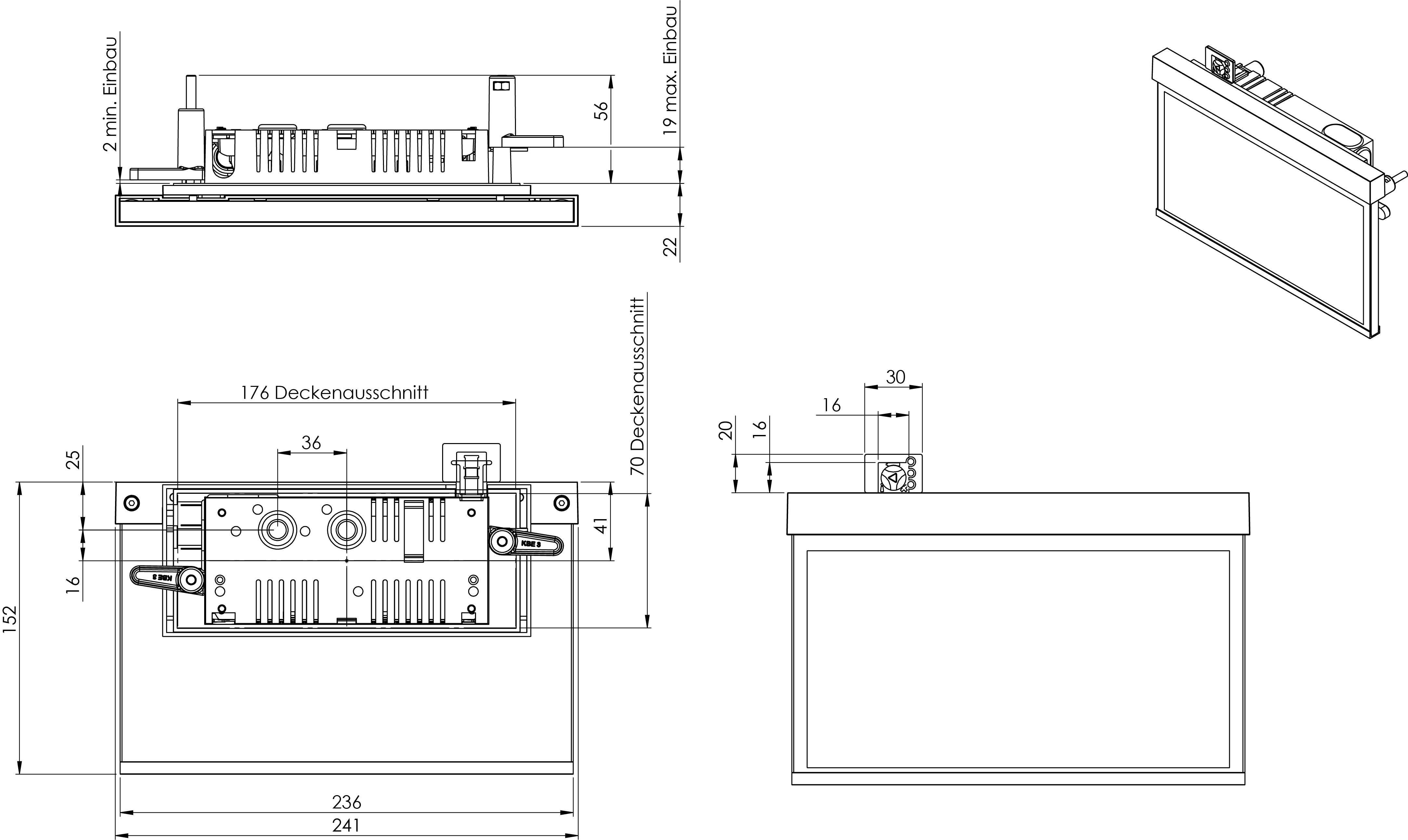

Depth
79 mm
Width
236 mm
Height
151 mm
Installation length
176 mm
Installation width
68 mm
Installation height
40 mm
Weight
0.95
Weight incl. packaging
1.31
Connection cross-section
2.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
No
Luminous flux mains
165 lm
Luminous flux emergency
165 lm
Customs tariff number
94056180
EAN
4260682156464
Luminaire type
Exit sign
Mounting
Recessed wall mounting
Recognition distance
22 m
Pictograph
Set
Illuminant
LED
Housing material
Zinc die-cast
Housing color
Anthracite
Protection type (IP)
IP40
Impact resistance (IK)
≥ 3
Certification
WEEE, CE, ENEC
Insulation class
2
Supply
Centralised power supply systems
Monitoring
CoreCompact 24 (CC)
Bridging time
CPS
Battery
/
Operating mode
Standby circuit / permanent circuit
Input voltageAC
24 V
Power max.
2,8 W
Power DS
2,8 W
Power BS
0,4 W
Ambient temperature DS
-5 °C - 40 °C
Ambient temperature BS
-5 °C - 40 °C
Depth
79 mm
Width
236 mm
Height
151 mm
Installation length
176 mm
Installation width
68 mm
Installation height
40 mm
Weight
0.95
Weight incl. packaging
1.31
Connection cross-section
2.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
No
Luminous flux mains
165 lm
Luminous flux emergency
165 lm
Customs tariff number
94056180
EAN
4260682156464

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic


Accessories

  • BALLPLX-AM
    PRODUCT
  • AM-XBE
    PRODUCT
