or

NOTE

This product has been discontinued and is therefore no longer available. If you have any questions about alternative products, please do not hesitate to contact us.

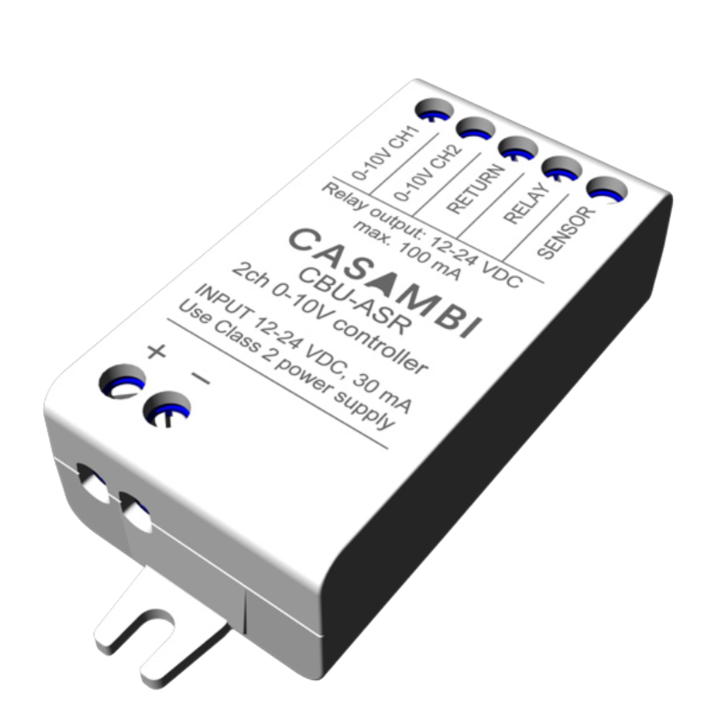

YMOCA-ASR-01

CASAMBI® ASR module

YMOCA ASR 01 is a Casambi-compatible 2-channel 0–10 control unit for LED loads and luminaires which can be dimmed. It can be controlled via Bluetooth. This device is intended for installation in luminaires. It must be supplied by an external 12–24 VDC power supply. If 0-10V drivers are connected to the two outputs, the YMOCA ASR 01 can be used to control the colour temperature of luminaires in addition to standard applications. Has two 0-10V channels in addition to a control connection for an external relay as well as a sensor input. Developed for installation in luminaires and should only be used in a closed system


Product data

Product dimensions Length
72.6 mm
Ambient temperature (Max)
75 °C
Product dimensions Width
30 mm
Connection cross-section
1.5 mm²
Product dimensions Height
18 mm
Type of dimming
CASAMBI
Product weight
23 g
Ambient temperature (Min)
-25 °C
Weight incl. packaging
24 g
Ambient temperature (Max)
45 °C
Color
white
Communication type
Bluetooth
Storage temperature range (Min)
-25 °C
Customs tariff number
85365005
Storage temperature range (Max)
75 °C
EAN
4250835513305
Product dimensions Length
72.6 mm
Product dimensions Width
30 mm
Product dimensions Height
18 mm
Product weight
23 g
Weight incl. packaging
24 g
Color
white
Storage temperature range (Min)
-25 °C
Storage temperature range (Max)
75 °C
Ambient temperature (Max)
75 °C
Connection cross-section
1.5 mm²
Type of dimming
CASAMBI
Ambient temperature (Min)
-25 °C
Ambient temperature (Max)
45 °C
Communication type
Bluetooth
Customs tariff number
85365005
EAN
4250835513305
