AGDC009-AZ

Exit sign Centralised power supply systems
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

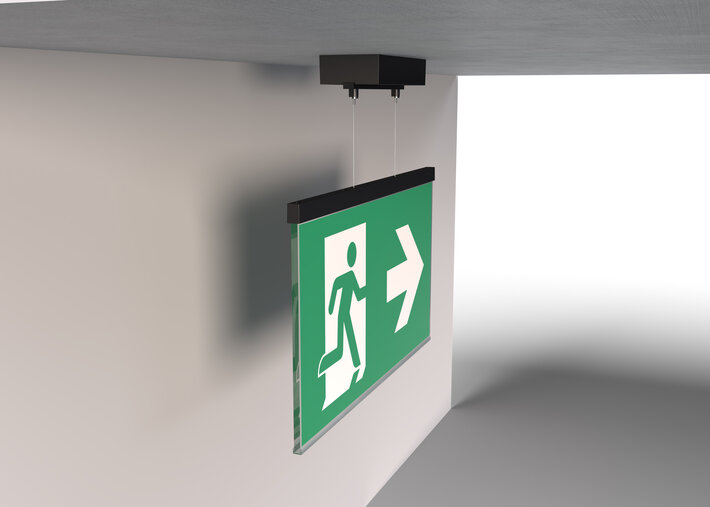

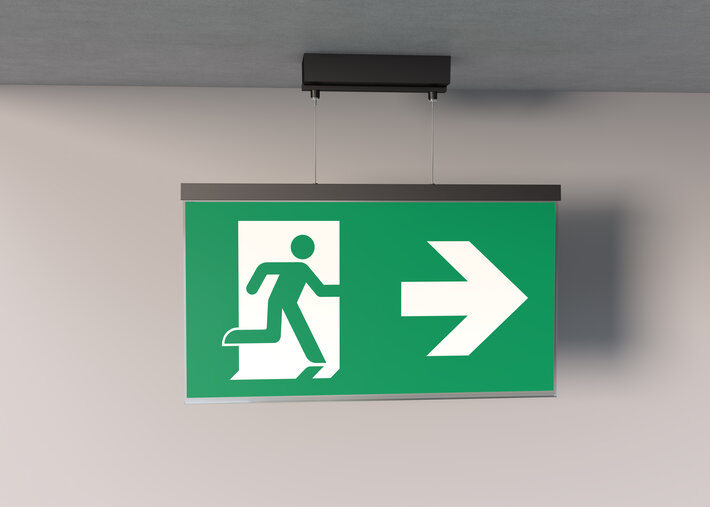

Modern zinc die-cast emergency exit sign luminaire with wire suspension for surface mounting on the ceiling. Escape and emergency routes can be identified on either one or two sides.

It is part of the A series luminaire family, which provides solutions for any mounting and has won the German Design Award for its uniform, straight-line design.

Zwei gewünschte Piktogramme (Pfeil rechts, links, oben, unten oder weiß) sind standardmäßig im Lieferumfang enthalten.


Product data

Luminaire type
Rettungszeichenleuchte
Insulation class
2
Mounting
Seil Deckenaufbau
Supply
zentrale Stromversorgungssysteme
Recognition distance
50m
Monitoring
Ohne Überwachung
Pictograph
Einzeln n.A.
Bridging time
CPS
Illuminant
LED
Battery
/
Housing material
Zink-Druckguss
Operating mode
Dauerschaltung
Housing color
Anthrazit
Input voltageAC
230 V
Protection type (IP)
IP40
Input frequency
50 / 60 Hz
Impact resistance (IK)
≥ 3
Input voltage DC
100-254 V
Certification
WEEE, CE
Power max.
5,2 W
Power maintained
5,2 W
Power non-maintained
0 W
Ambient temperature maintained mode
-5 °C bis 40 °C
Ambient temperature non-maintained mode
-5 °C bis 40 °C
Depth
80 mm
Width
512 mm
Height
338 mm
Weight
2.64
Weight incl. packaging
3.29
Connection cross-section
1.5 mm²
Switching input
Nein
Emergency light blocking
Nein
Battery connection
Nein
Dimming function
Nein
Customs tariff number
94056180
EAN
4260659565398
Luminaire type
Rettungszeichenleuchte
Mounting
Seil Deckenaufbau
Recognition distance
50m
Pictograph
Einzeln n.A.
Illuminant
LED
Housing material
Zink-Druckguss
Housing color
Anthrazit
Protection type (IP)
IP40
Impact resistance (IK)
≥ 3
Certification
WEEE, CE
Insulation class
2
Supply
zentrale Stromversorgungssysteme
Monitoring
Ohne Überwachung
Bridging time
CPS
Battery
/
Operating mode
Dauerschaltung
Input voltageAC
230 V
Input frequency
50 / 60 Hz
Input voltage DC
100-254 V
Power max.
5,2 W
Power maintained
5,2 W
Power non-maintained
0 W
Ambient temperature maintained mode
-5 °C bis 40 °C
Ambient temperature non-maintained mode
-5 °C bis 40 °C
Depth
80 mm
Width
512 mm
Height
338 mm
Weight
2.64
Weight incl. packaging
3.29
Connection cross-section
1.5 mm²
Switching input
Nein
Emergency light blocking
Nein
Battery connection
Nein
Dimming function
Nein
Customs tariff number
94056180
EAN
4260659565398

Recommended areas of application

Bildungseinrichtungen
Versammlungsstätten
Sportstätten
Parkhaus
Einzelhandel
Hotel & Gastronomie
Bürogebäude
Industrie
Medizin- & Pflegeeinrichtungen
Transport & Verkehr
