WGW019ML

Exit sign Centralised power supply systems
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Square emergency exit sign cube luminaire for wall mounting for illuminating escape and emergency routes.

The cube shape means that this plastic luminaire is easily recognisable from three sides. Ideal for large-scale applications, e.g. in large stores.

Control and monitoring via central power supply system.


Product data

Luminaire type
Exit sign
Insulation class
1
Mounting
Wall mounting
Supply
Centralised power supply systems
Recognition distance
46 m
Monitoring
Central power supply (ML)
Pictograph
Set
Bridging time
CPS
Illuminant
LED
Battery
/
Housing material
Metal
Operating mode
single luminaire switching
Housing color
White
Input voltageAC
230 V
Protection type (IP)
IP20
Input frequency
50 / 60 Hz
Impact resistance (IK)
≥ 3
Input voltage DC
216 V
Certification
WEEE, CE
Power max.
5,2 W
Power maintained
5,2 W
Power non-maintained
1,1 W
Ambient temperature maintained mode
-20 °C to 40 °C
Ambient temperature non-maintained mode
-20 °C to 40 °C

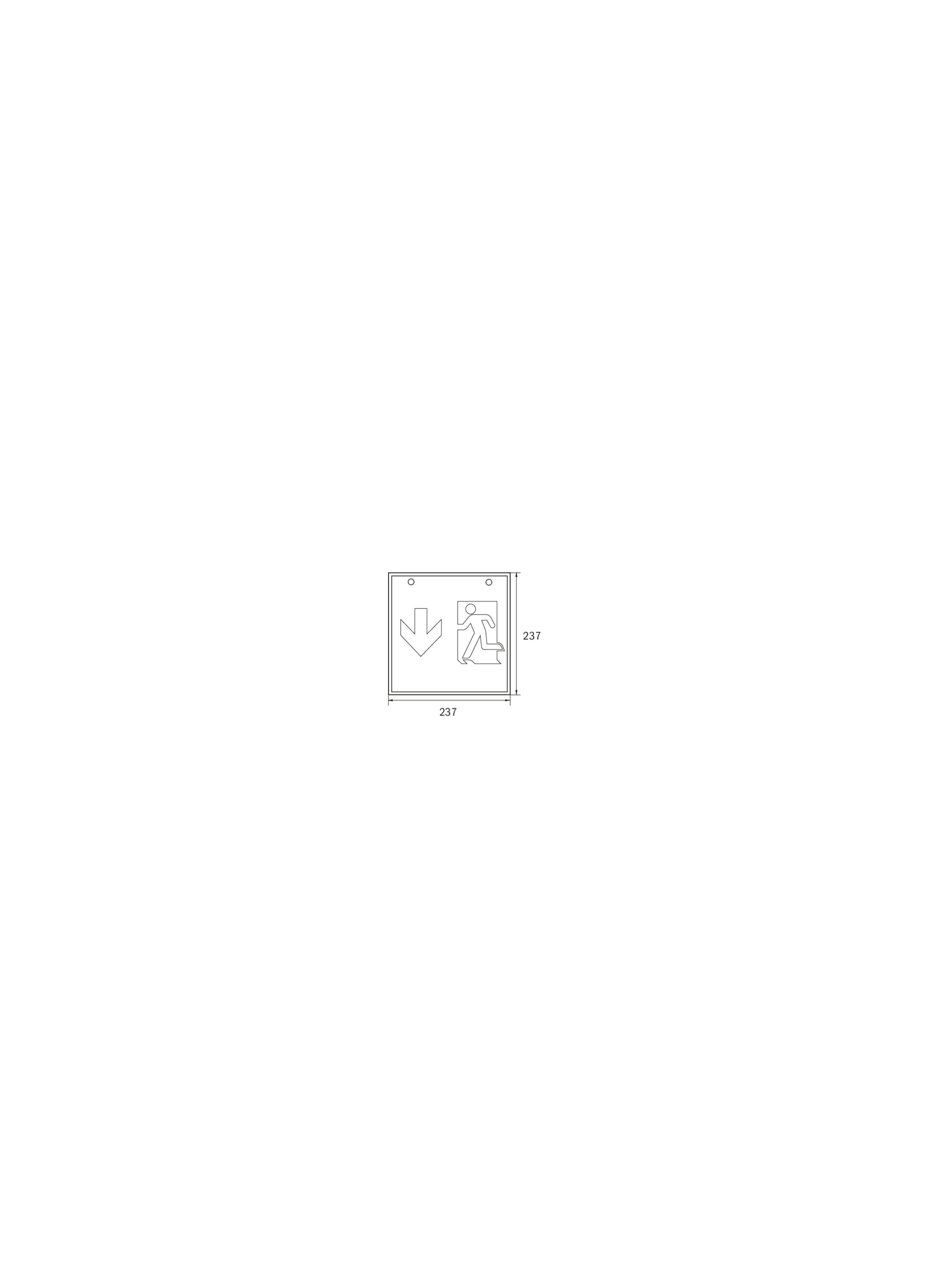

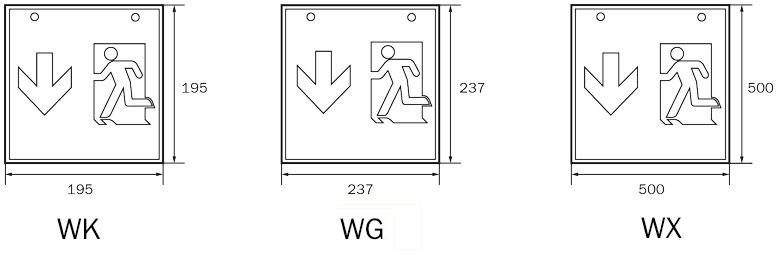

Depth
237 mm
Width
237 mm
Height
237 mm
Weight
1.19
Weight incl. packaging
1.33
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
No
Dimming function
Yes
Luminous flux mains
250 lm
Luminous flux emergency
250 lm
Customs tariff number
94056120
EAN
4260659564179
Luminaire type
Exit sign
Mounting
Wall mounting
Recognition distance
46 m
Pictograph
Set
Illuminant
LED
Housing material
Metal
Housing color
White
Protection type (IP)
IP20
Impact resistance (IK)
≥ 3
Certification
WEEE, CE
Insulation class
1
Supply
Centralised power supply systems
Monitoring
Central power supply (ML)
Bridging time
CPS
Battery
/
Operating mode
single luminaire switching
Input voltageAC
230 V
Input frequency
50 / 60 Hz
Input voltage DC
216 V
Power max.
5,2 W
Power maintained
5,2 W
Power non-maintained
1,1 W
Ambient temperature maintained mode
-20 °C to 40 °C
Ambient temperature non-maintained mode
-20 °C to 40 °C
Depth
237 mm
Width
237 mm
Height
237 mm
Weight
1.19
Weight incl. packaging
1.33
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
No
Dimming function
Yes
Luminous flux mains
250 lm
Luminous flux emergency
250 lm
Customs tariff number
94056120
EAN
4260659564179

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
