WER529CC-E

Emergency light Centralised power supply systems
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

High-grade and discreet zinc die-cast safety luminaire for recessed mounting in the wall.

This is intended for mounting in conventional switch boxes where the mounting frame can be aligned to the box. The zinc die-cast ornamental cover is locked using a fastener that cannot be seen from the outside.

Control and monitoring via central 24 V low-power system.


Product data

Luminaire type
Emergency light
Supply
Centralised power supply systems
Mounting
Recessed wall mounting
Monitoring
CoreCompact 24 (CC)
Pictograph
No
Bridging time
CPS
Illuminant
LED
Battery
/
Housing material
Zinc die-cast
Operating mode
Non-maintained / maintained
Housing color
Stainless steel
Input voltageAC
24 V
Protection type (IP)
IP20
Power max.
1,5 W
Impact resistance (IK)
≥ 3
Power maintained
1,5 W
Certification
WEEE, CE
Power non-maintained
0,4 W
Insulation class
3
Ambient temperature maintained mode
-5 °C to 40 °C
Ambient temperature non-maintained mode
-5 °C to 40 °C

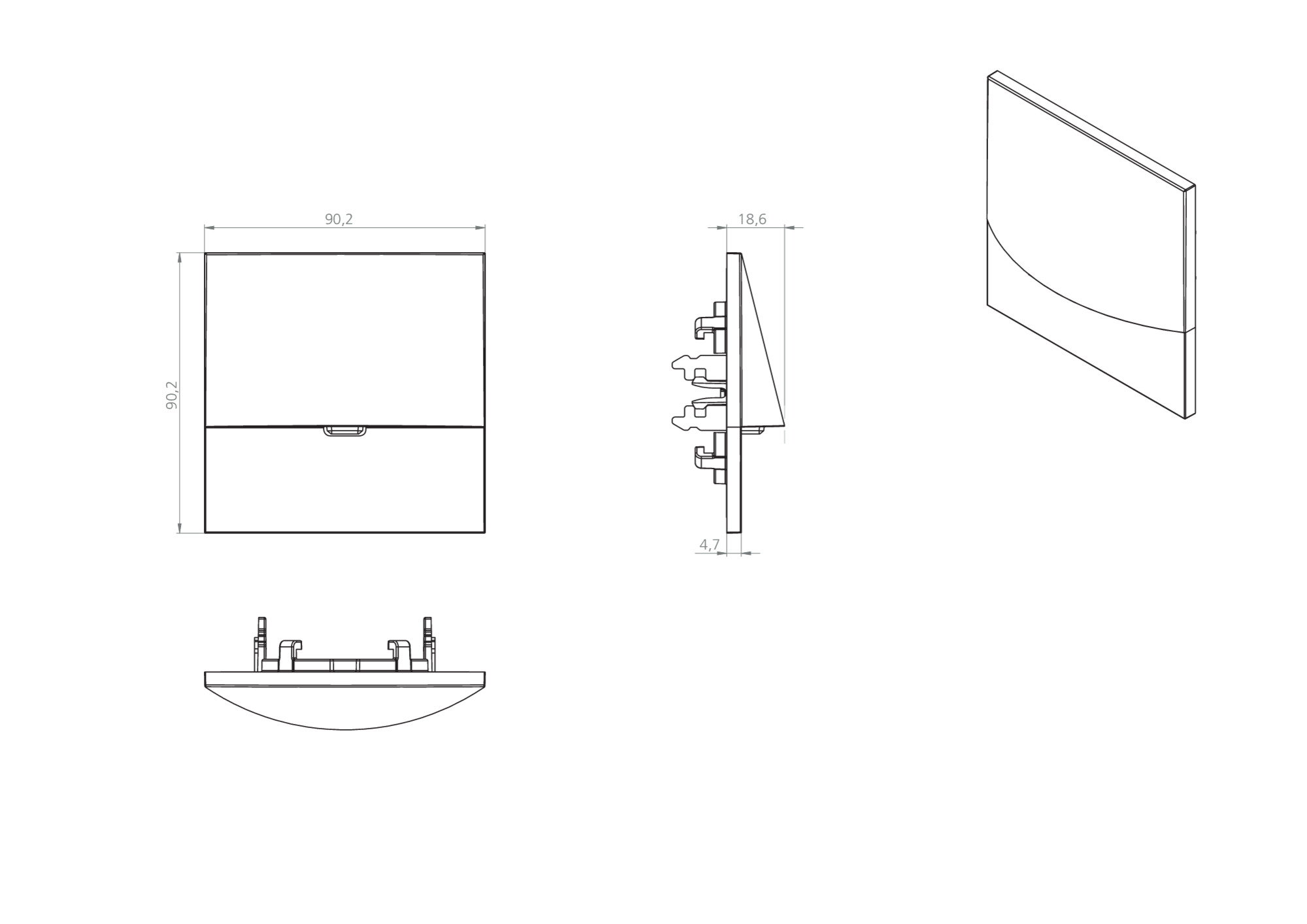

Depth
20 mm
Width
90 mm
Height
90 mm
Installation dimensions Diameter
68 mm
Weight
0.66
Weight incl. packaging
0.69
Connection cross-section
2.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
No
Dimming function
Yes
Luminous flux mains
140 lm
Luminous flux emergency
140 lm
Customs tariff number
94056180
EAN
4260682157669
Luminaire type
Emergency light
Mounting
Recessed wall mounting
Pictograph
No
Illuminant
LED
Housing material
Zinc die-cast
Housing color
Stainless steel
Protection type (IP)
IP20
Impact resistance (IK)
≥ 3
Certification
WEEE, CE
Insulation class
3
Supply
Centralised power supply systems
Monitoring
CoreCompact 24 (CC)
Bridging time
CPS
Battery
/
Operating mode
Non-maintained / maintained
Input voltageAC
24 V
Power max.
1,5 W
Power maintained
1,5 W
Power non-maintained
0,4 W
Ambient temperature maintained mode
-5 °C to 40 °C
Ambient temperature non-maintained mode
-5 °C to 40 °C
Depth
20 mm
Width
90 mm
Height
90 mm
Installation dimensions Diameter
68 mm
Weight
0.66
Weight incl. packaging
0.69
Connection cross-section
2.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
No
Dimming function
Yes
Luminous flux mains
140 lm
Luminous flux emergency
140 lm
Customs tariff number
94056180
EAN
4260682157669

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
