SKS2301SC

Emergency light Self-contained
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Compact emergency floodlight equipped with two freely adjustable metal safety luminaires. Suited to use indoors and, subject to certain conditions, to use outdoors.

Automatic monitoring of safety luminaire with SelfControl.


Product data

Luminaire type
Emergency light
Supply
Self-contained
Mounting
Wall mounting
Monitoring
SelfControl (SC)
Pictograph
No
Bridging time
1 h
Illuminant
LED
Battery
AGM - OGIV 12V 12 V/12,8 Ah
Housing material
Metal
Operating mode
Non-maintained
Housing color
Light grey
Input voltageAC
230 V
Protection type (IP)
IP54
Input frequency
50 / 60 Hz
Impact resistance (IK)
≥ 3
Input voltage DC
12 V
Certification
WEEE, CE
Power max.
11,5 W
Insulation class
1
Power maintained
- W
Power non-maintained
9,2 W
Ambient temperature maintained mode
-5 °C to 40 °C
Ambient temperature non-maintained mode
-5 °C to 40 °C

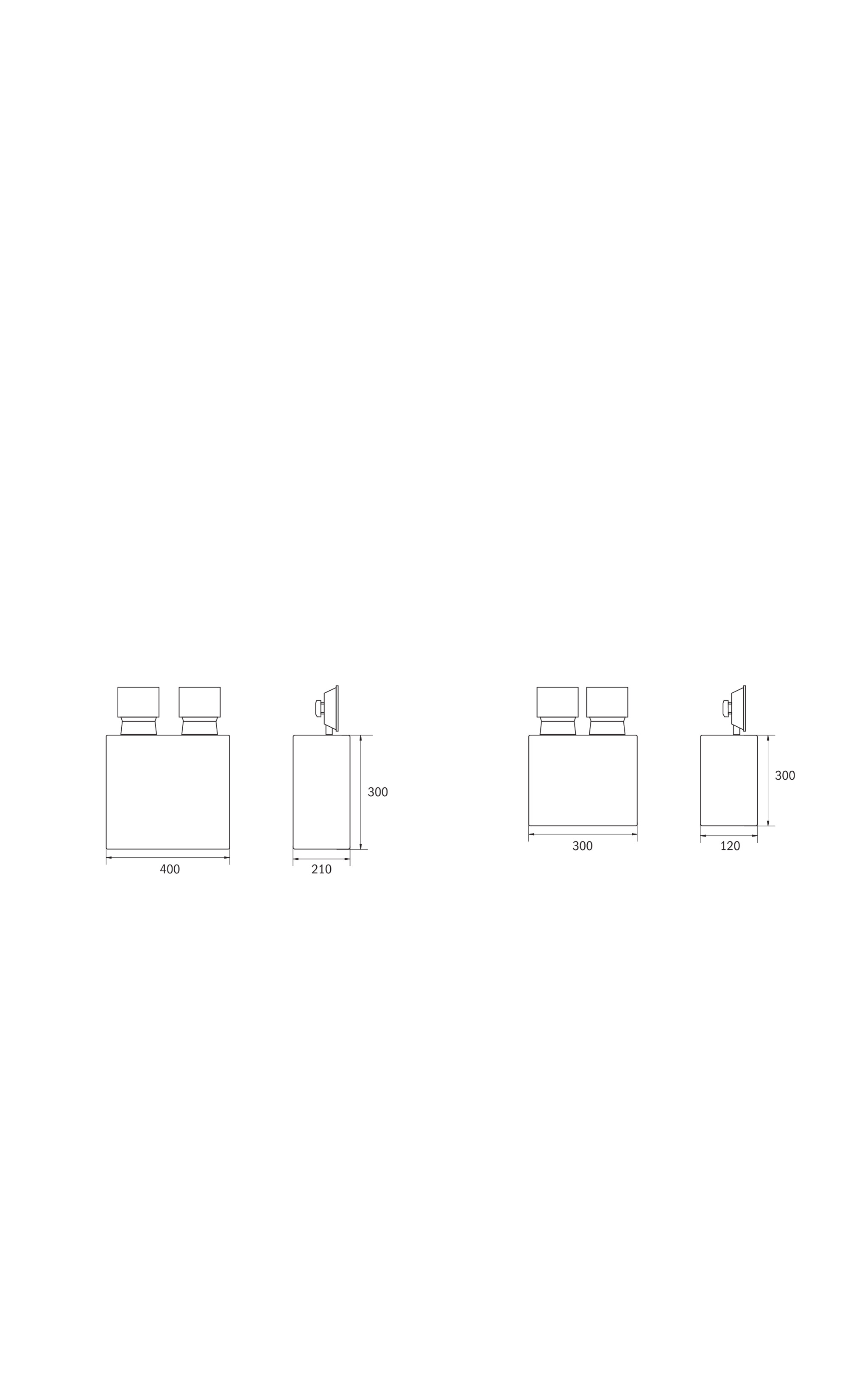

Depth
120 mm
Width
300 mm
Height
300 mm
Weight
14.67
Weight incl. packaging
15.42
Connection cross-section
2.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
Clip
Dimming function
No
Luminous flux mains
- lm
Luminous flux emergency
2 x 2500 lm
Customs tariff number
94054239
EAN
4262483026069
Luminaire type
Emergency light
Mounting
Wall mounting
Pictograph
No
Illuminant
LED
Housing material
Metal
Housing color
Light grey
Protection type (IP)
IP54
Impact resistance (IK)
≥ 3
Certification
WEEE, CE
Insulation class
1
Supply
Self-contained
Monitoring
SelfControl (SC)
Bridging time
1 h
Battery
AGM - OGIV 12V 12 V/12,8 Ah
Operating mode
Non-maintained
Input voltageAC
230 V
Input frequency
50 / 60 Hz
Input voltage DC
12 V
Power max.
11,5 W
Power maintained
- W
Power non-maintained
9,2 W
Ambient temperature maintained mode
-5 °C to 40 °C
Ambient temperature non-maintained mode
-5 °C to 40 °C
Depth
120 mm
Width
300 mm
Height
300 mm
Weight
14.67
Weight incl. packaging
15.42
Connection cross-section
2.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
Clip
Dimming function
No
Luminous flux mains
- lm
Luminous flux emergency
2 x 2500 lm
Customs tariff number
94054239
EAN
4262483026069

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
