QBW421WL-BM

General light, Emergency light Self-contained
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Round plastic luminaire for general-purpose lighting with integrated motion detector. To illuminate escape and emergency routes in accordance with DIN EN 60598-1, DIN EN 60598-2-22 and DIN EN 1838.

In a timeless design, suited to indoor use. When mounting, the emergency light LED can be swung out without the need for tools, to perfectly illuminate the escape and emergency routes when mounted on a wall, for example. By means of the motion detector, which cannot be seen from the outside, the general-purpose light is switched independently of the emergency light.

Wireless central control and monitoring for large installations of up to 50,000 luminaires with Wireless Professional.


Product data

Luminaire type
General light, Emergency light
Supply
Self-contained
Mounting
Universal
Monitoring
Wireless Professional (WL)
Pictograph
No
Bridging time
1 h
Illuminant
LED
Battery
LiFePO4 6,4 V/1,2 Ah
Housing material
Polycarbonate
Operating mode
Non-maintained / maintained
Housing color
White
Input voltageAC
230 V
Protection type (IP)
IP44
Input frequency
50 Hz
Impact resistance (IK)
6
Power max.
20 W
Certification
WEEE, CE, 5 years warranty
Power maintained
17,5 W
Insulation class
2
Power non-maintained
0,9 W
Ambient temperature maintained mode
-5 °C to 40 °C
Ambient temperature non-maintained mode
-5 °C to 40 °C

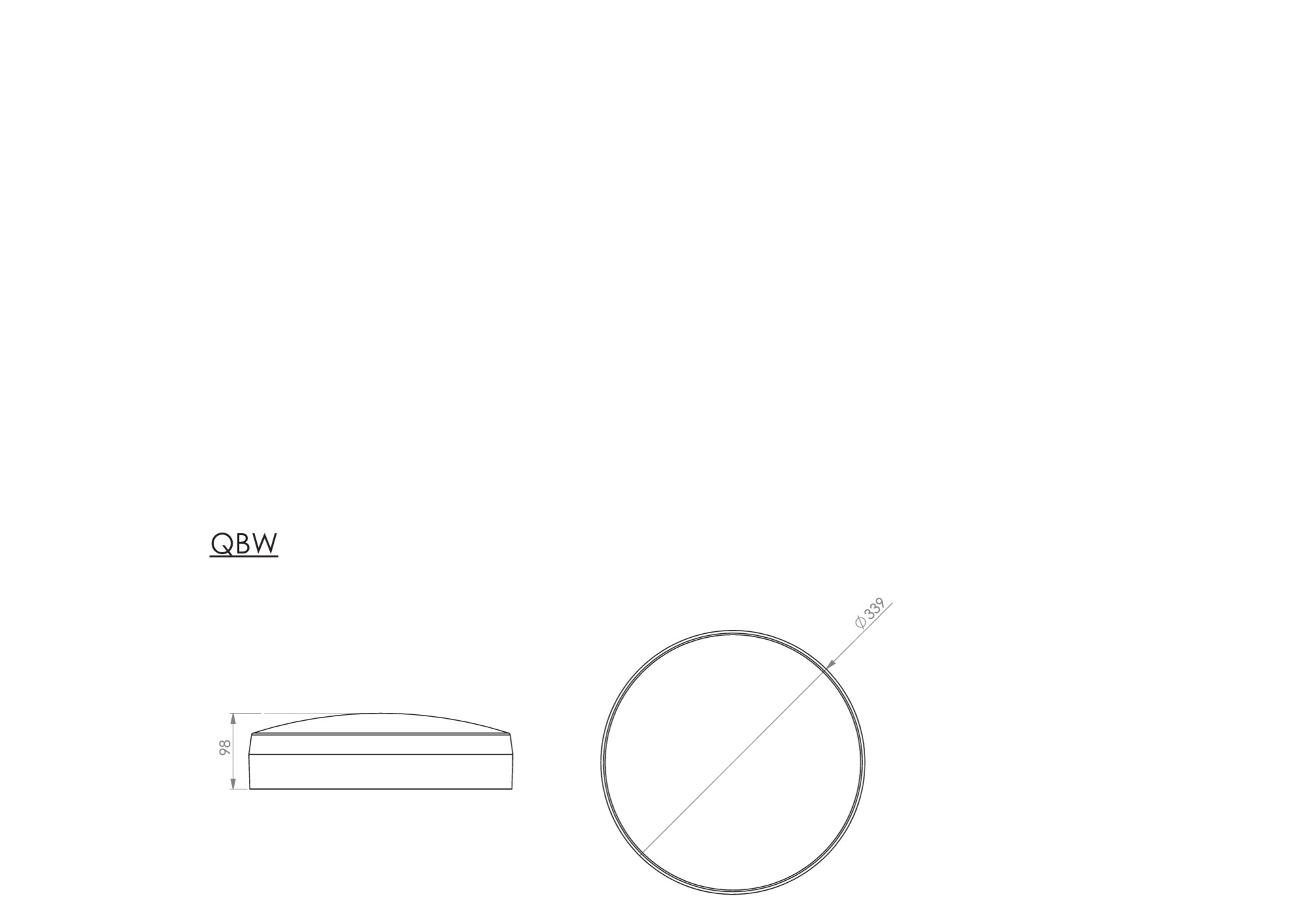

Height
98 mm
Diameter
339 mm
Weight
1.62
Weight incl. packaging
1.84
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
Yes
Battery connection
Connector
Dimming function
Yes
Luminous flux mains
1800 lm
Luminous flux emergency
470 lm
Customs tariff number
94056180
EAN
4260766552625
Luminaire type
General light, Emergency light
Mounting
Universal
Pictograph
No
Illuminant
LED
Housing material
Polycarbonate
Housing color
White
Protection type (IP)
IP44
Impact resistance (IK)
6
Certification
WEEE, CE, 5 years warranty
Insulation class
2
Supply
Self-contained
Monitoring
Wireless Professional (WL)
Bridging time
1 h
Battery
LiFePO4 6,4 V/1,2 Ah
Operating mode
Non-maintained / maintained
Input voltageAC
230 V
Input frequency
50 Hz
Power max.
20 W
Power maintained
17,5 W
Power non-maintained
0,9 W
Ambient temperature maintained mode
-5 °C to 40 °C
Ambient temperature non-maintained mode
-5 °C to 40 °C
Height
98 mm
Diameter
339 mm
Weight
1.62
Weight incl. packaging
1.84
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
Yes
Battery connection
Connector
Dimming function
Yes
Luminous flux mains
1800 lm
Luminous flux emergency
470 lm
Customs tariff number
94056180
EAN
4260766552625

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
