Round plastic luminaire for general-purpose lighting with integrated motion detector. To illuminate escape and emergency routes in accordance with DIN EN 60598-1, DIN EN 60598-2-22 and DIN EN 1838.
In a timeless design, suited to indoor use. When mounting, the emergency light LED can be swung out without the need for tools, to perfectly illuminate the escape and emergency routes when mounted on a wall, for example. By means of the motion detector, which cannot be seen from the outside, the general-purpose light is switched independently of the emergency light.
Control and monitoring via central power supply system. Our motion detector (BM) reliably detects movements and automatically turns on the light in mains operation.
Product data
Recommended areas of application
DOWNLOADS

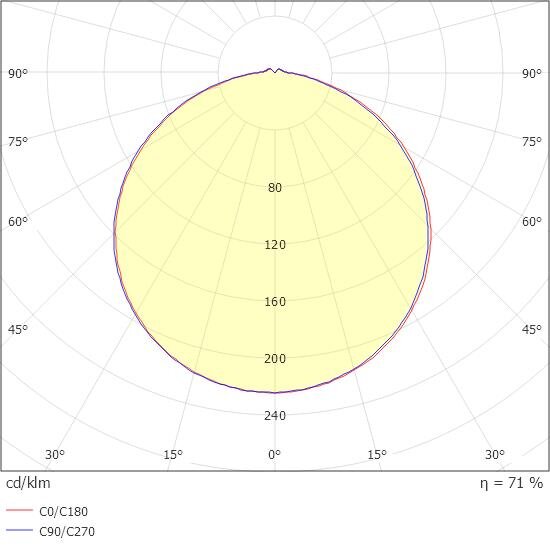

text.product-details.lighting-technologie-data
The spacing table is based on the following parameters:
- l Maintenance factor: 0.80
- l Emergency lighting factor: 1.00
- l Minimum illuminance on centre line: 1.00 lx
- l Minimum illuminance on half of escape route width: 0.50 lx
- l Diversity on the centre line max. 40 : 1
- l Width of escape route: 2.00 m
| Mounting height |  |
 |
 |
 |
|---|---|---|---|---|
| 2.5 | 5.60 | 11.20 | 11.20 | 5.60 |
| 3 | 6.50 | 13.40 | 13.60 | 6.60 |
| 3.5 | 6.90 | 15.60 | 15.80 | 7.00 |
| 4 | 7.30 | 17.80 | 18.00 | 7.40 |
| 4.5 | 7.60 | 19.00 | 19.00 | 7.70 |
| 5 | 7.90 | 19.80 | 20.00 | 7.90 |
| 5.5 | 8.10 | 20.60 | 20.60 | 8.20 |
| 6 | 8.30 | 21.20 | 21.40 | 8.40 |
| 6.5 | 8.50 | 21.80 | 22.00 | 8.60 |
| 7 | 8.60 | 22.40 | 22.40 | 8.70 |
| 7.5 | 8.70 | 23.00 | 23.00 | 8.80 |
| 8 | 8.80 | 23.40 | 23.40 | 8.90 |
| 8.5 | 8.80 | 23.80 | 23.80 | 8.90 |
| 9 | 8.90 | 24.00 | 24.20 | 8.90 |
| 9.5 | 8.80 | 24.40 | 24.40 | 8.90 |
| 10 | 8.80 | 24.60 | 24.60 | 8.90 |
| 10.5 | 8.70 | 24.80 | 25.00 | 8.80 |
| 11 | 8.60 | 25.00 | 25.00 | 8.70 |
| 11.5 | 8.50 | 25.20 | 25.20 | 8.60 |
| 12 | 8.40 | 25.20 | 25.20 | 8.40 |
| 12.5 | 8.20 | 25.20 | 25.40 | 8.30 |
| 13 | 7.90 | 25.20 | 25.40 | 8.00 |
| 13.5 | 7.70 | 25.20 | 25.20 | 7.80 |
| 14 | 7.40 | 25.20 | 25.20 | 7.40 |
| 14.5 | 7.00 | 25.00 | 25.20 | 7.10 |
| 15 | 6.60 | 25.00 | 25.00 | 6.70 |
| 15.5 | 6.10 | 24.80 | 24.80 | 6.20 |
| 16 | 5.60 | 24.40 | 24.60 | 5.60 |
| 16.5 | 4.90 | 24.20 | 24.20 | 4.90 |
| 17 | 4.00 | 23.80 | 24.00 | 4.10 |
| 17.5 | 2.80 | 23.60 | 23.60 | 2.90 |
| 18 | 0.00 | 23.00 | 23.20 | 0.00 |
| 18.5 | 0.00 | 22.60 | 22.60 | 0.00 |
| 19 | 0.00 | 22.00 | 22.20 | 0.00 |
| 19.5 | 0.00 | 21.40 | 21.60 | 0.00 |
| 20 | 0.00 | 20.80 | 20.80 | 0.00 |
