PMW423SC

Safety luminaire Single Battery
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Plastic safety luminaire with convex shaped surround.

To help with mounting, levelling screws are integrated to compensate for uneven surfaces.

The luminaire can be mounted by fitting on the wall and ceiling as well as fitting in the ceiling in conjunction with the mounting frame available.

Automatic monitoring of safety luminaire with SelfControl. The luminaire is fitted with the innovative flexible plug-in system for rapid use of the right lens. The hall lens is supplied with every luminaire. A round lens, spotlight lens and beam lens are available as options.


Product data

Luminaire type
Safety luminaire
Supply
Single Battery
Mounting
Universal
Monitoring
SelfControl (SC)
Pictograph
No
Bridging time
3 h
Illuminant
LED
Battery
LiFePO4 6,4 V/3,3 Ah
Housing material
Plastic
Operating mode
Standby circuit / permanent circuit
Housing color
white
Input voltageAC
180 V - 250 V
Protection type (IP)
IP65
Input frequency
50 Hz
Impact resistance (IK)
6
Power max.
8,2 W
Certification
WEEE, CE, 5 earys warranty
Power DS
7 W
Insulation class
2
Power BS
2 W
Ambient temperature DS
-5 °C to 40 °C
Ambient temperature BS
-5 °C to 40 °C

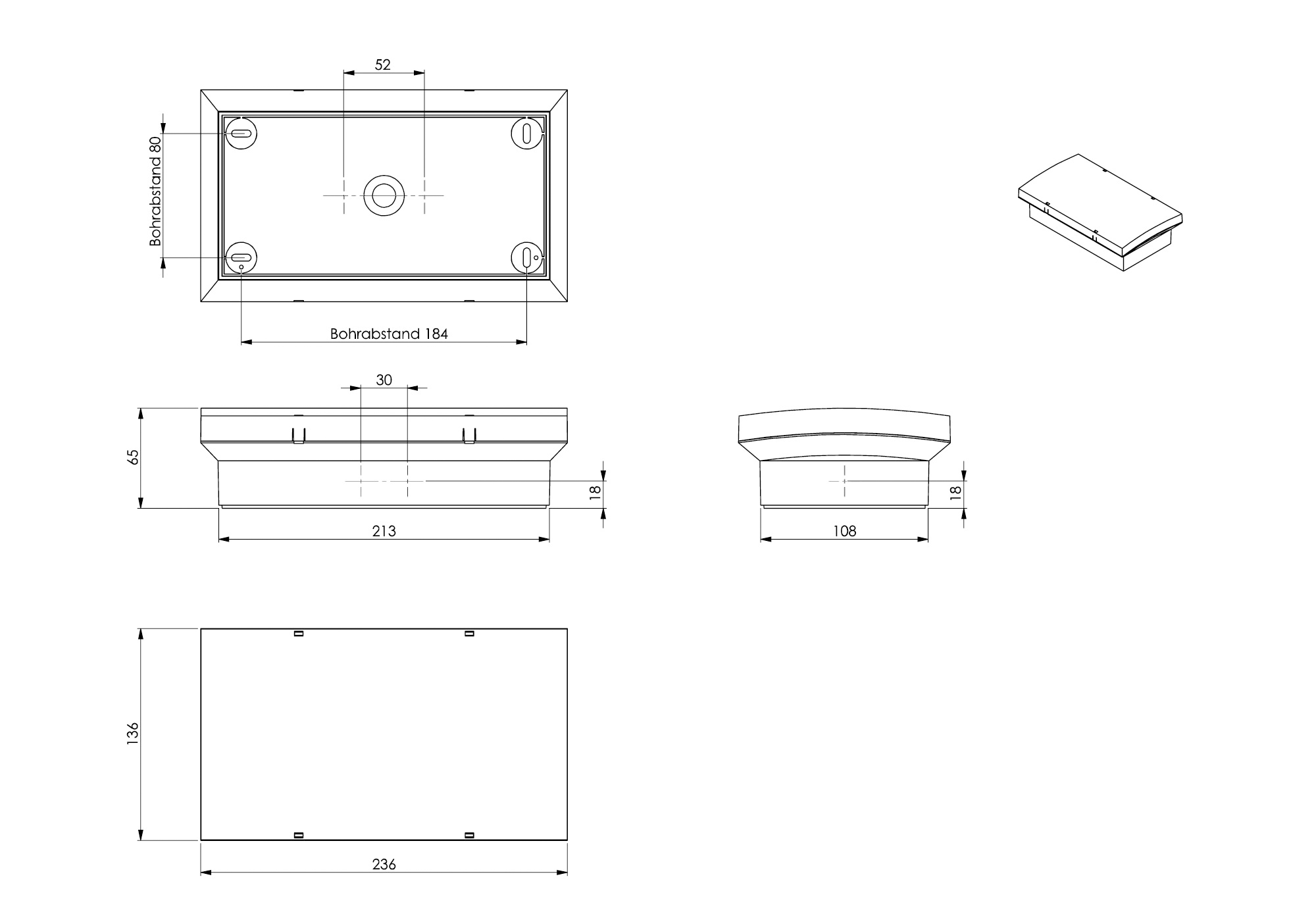

Depth
65 mm
Width
236 mm
Height
136 mm
Weight
0.86
Weight incl. packaging
0.99
Connection cross-section
2,5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
Connector
Dimming function
No
Luminous flux mains
520 lm
Luminous flux emergency
520 lm
Customs tariff number
94056120
EAN
4260766553684
Luminaire type
Safety luminaire
Mounting
Universal
Pictograph
No
Illuminant
LED
Housing material
Plastic
Housing color
white
Protection type (IP)
IP65
Impact resistance (IK)
6
Certification
WEEE, CE, 5 earys warranty
Insulation class
2
Supply
Single Battery
Monitoring
SelfControl (SC)
Bridging time
3 h
Battery
LiFePO4 6,4 V/3,3 Ah
Operating mode
Standby circuit / permanent circuit
Input voltageAC
180 V - 250 V
Input frequency
50 Hz
Power max.
8,2 W
Power DS
7 W
Power BS
2 W
Ambient temperature DS
-5 °C to 40 °C
Ambient temperature BS
-5 °C to 40 °C
Depth
65 mm
Width
236 mm
Height
136 mm
Weight
0.86
Weight incl. packaging
0.99
Connection cross-section
2,5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
Connector
Dimming function
No
Luminous flux mains
520 lm
Luminous flux emergency
520 lm
Customs tariff number
94056120
EAN
4260766553684

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
