PFD418SC-TT

Exit sign Self-contained
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Trapezoid, plastic emergency exit sign luminaire for fitting on the ceiling for inscription on one or two sides with self-adhesive pictogram.

Automatic monitoring of safety luminaire with SelfControl. Planning certainty is provided by tool-free, variable use of the pictograms on site. A set of pictograms corresponding to DIN ISO 7010 (arrow to the right, left, up and down) is supplied as standard.


Product data

Luminaire type
Exit sign
Insulation class
1
Mounting
Surface mounting
Supply
Self-contained
Recognition distance
24 m
Monitoring
SelfControl (SC)
Pictograph
Set
Bridging time
8 h
Illuminant
LED
Battery
LiFePO4 6,4 V/3,3 Ah
Housing material
Polycarbonate
Operating mode
Non-maintained / maintained
Housing color
White
Input voltageAC
180 V - 250 V
Protection type (IP)
IP65
Input frequency
50 Hz
Impact resistance (IK)
6
Power max.
5 W
Certification
WEEE, CE, 5 years warranty
Power maintained
3,8 W
Power non-maintained
2 W
Ambient temperature maintained mode
-15 °C to 40 °C
Ambient temperature non-maintained mode
-15 °C to 40 °C

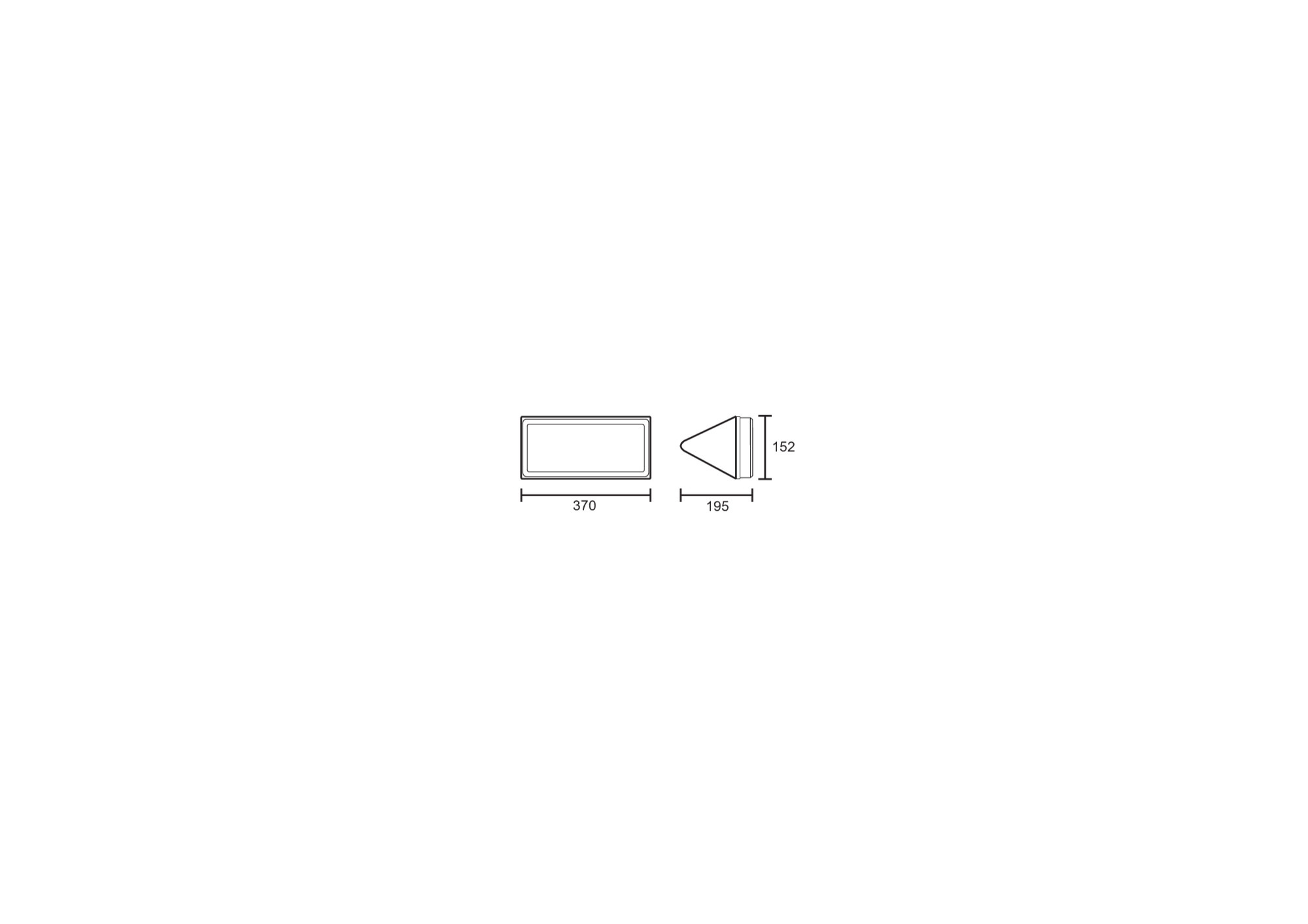

Depth
152 mm
Width
370 mm
Height
195 mm
Weight
1.08
Weight incl. packaging
1.21
Connection cross-section
2,5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
Connector
Dimming function
No
Luminous flux mains
150 lm
Luminous flux emergency
150 lm
Customs tariff number
94056120
EAN
4262483025512
Luminaire type
Exit sign
Mounting
Surface mounting
Recognition distance
24 m
Pictograph
Set
Illuminant
LED
Housing material
Polycarbonate
Housing color
White
Protection type (IP)
IP65
Impact resistance (IK)
6
Certification
WEEE, CE, 5 years warranty
Insulation class
1
Supply
Self-contained
Monitoring
SelfControl (SC)
Bridging time
8 h
Battery
LiFePO4 6,4 V/3,3 Ah
Operating mode
Non-maintained / maintained
Input voltageAC
180 V - 250 V
Input frequency
50 Hz
Power max.
5 W
Power maintained
3,8 W
Power non-maintained
2 W
Ambient temperature maintained mode
-15 °C to 40 °C
Ambient temperature non-maintained mode
-15 °C to 40 °C
Depth
152 mm
Width
370 mm
Height
195 mm
Weight
1.08
Weight incl. packaging
1.21
Connection cross-section
2,5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
Connector
Dimming function
No
Luminous flux mains
150 lm
Luminous flux emergency
150 lm
Customs tariff number
94056120
EAN
4262483025512

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
