KWIW413WL

Exit sign, Safety luminaire Single Battery
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Classic, robust, plastic, beam-like emergency exit sign luminaire with a high level of protection and self-adhesive pictogram for versatile use.

Intended for wall mounting when used as an emergency exit sign luminaire. Without the use of pictograms, it can be used as a safety luminaire, preferably for ceiling mounting.

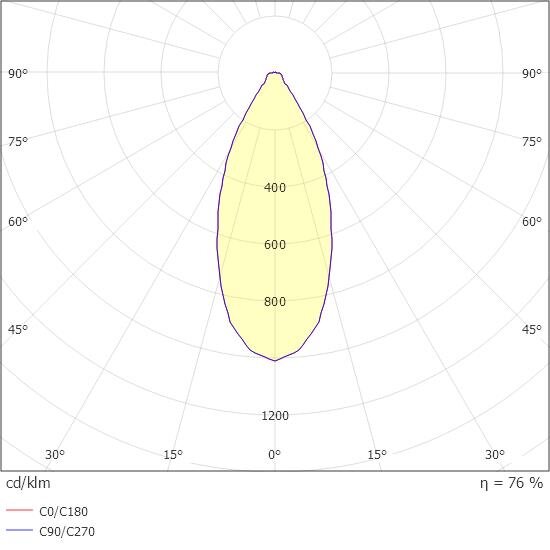

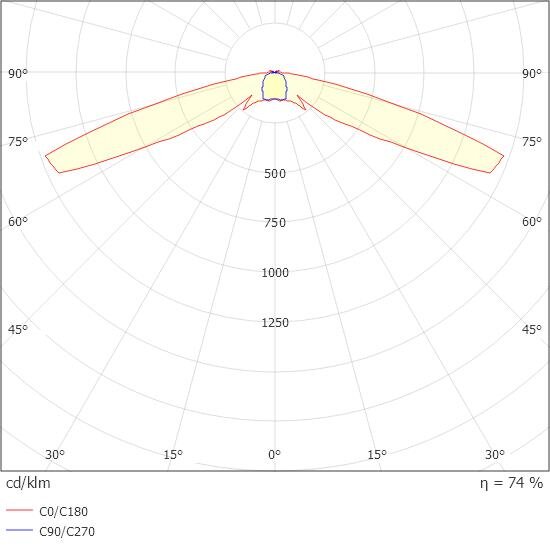

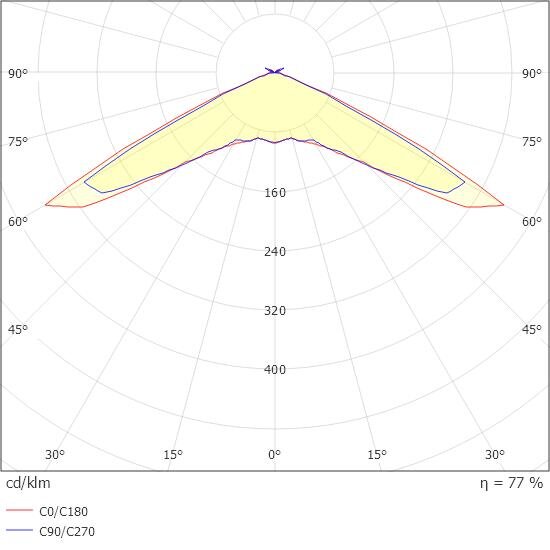

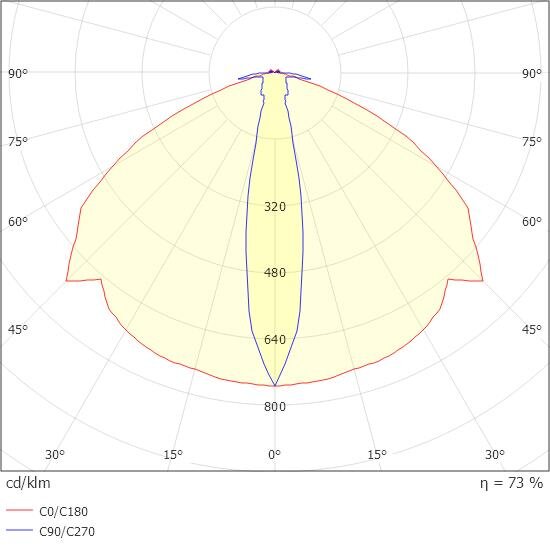

Wireless central control and monitoring for large installations of up to 50,000 luminaires with Wireless Professional. The innovative integrated lens holder with a rapid fitting fixture permits the flexible use of various lens types. Using the right lens allows the distribution of light to be matched perfectly to the application and simplifies illumination which satisfies all relevant standards. A round lens and hall lens are supplied with every luminaire, allowing it to be adapted perfectly to the respective mounting situation. Other lenses, such as a spotlight lens, beam lens or H lens, are available as options.


Product data

Luminaire type
Exit sign, Safety luminaire
Insulation class
2
Mounting
Wall mounting
Supply
Single Battery
Recognition distance
16 m
Monitoring
Wireless Professional (WL)
Pictograph
Set
Bridging time
3 h
Illuminant
LED
Battery
LiFePO4 6,4 V/1,2 Ah
Housing material
Plastic
Operating mode
Standby circuit / permanent circuit
Housing color
white
Input voltageAC
230 V
Protection type (IP)
IP65
Input frequency
50 Hz
Impact resistance (IK)
6
Power max.
5,3 W
Certification
CE, WEEE, D-Sign
Power DS
4,3 W
Power BS
0,7 W
Ambient temperature DS
-5 °C - 35 °C
Ambient temperature BS
-5 °C - 35 °C

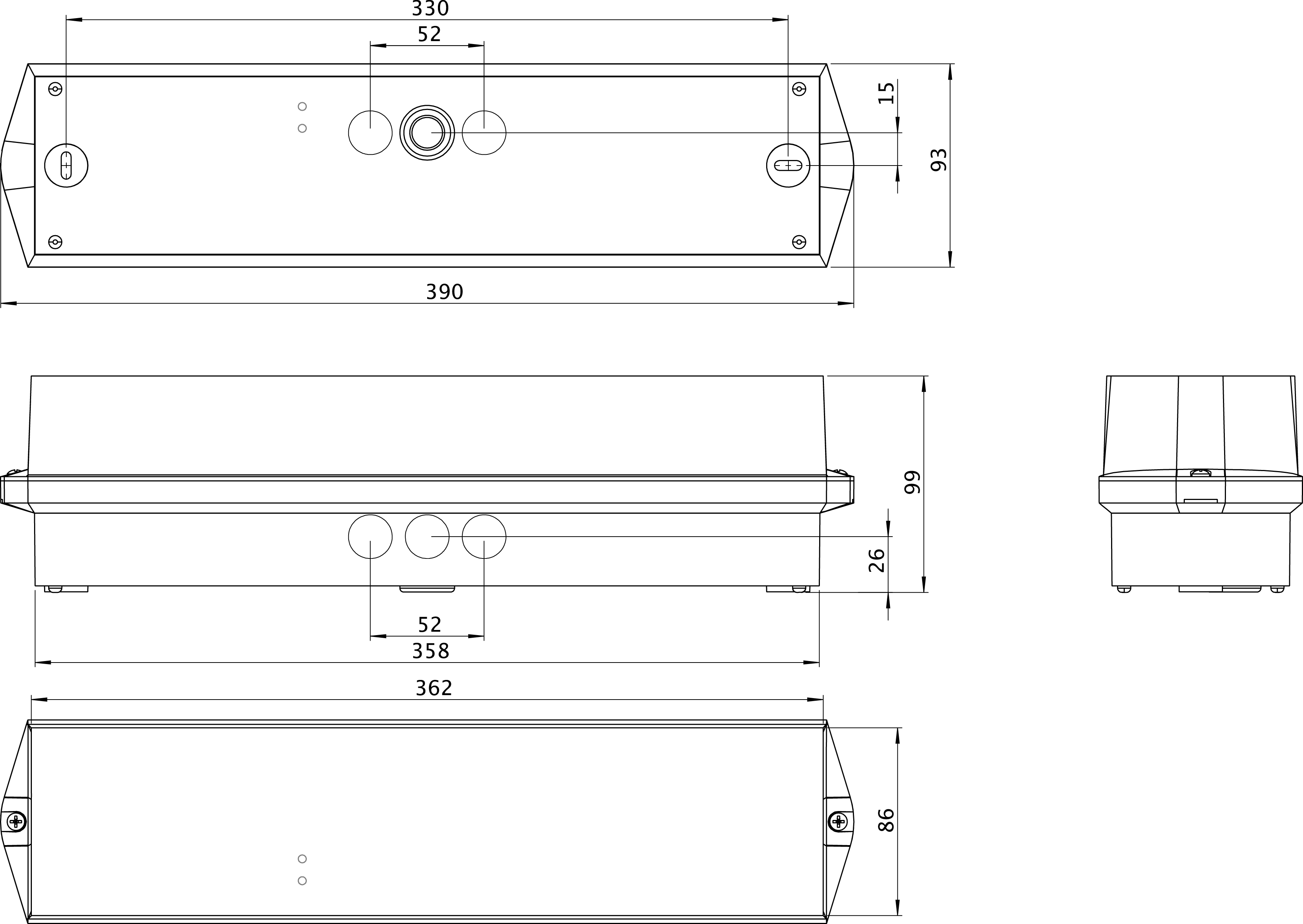

Depth
86 mm
Width
390 mm
Height
99 mm
Weight
0.82
Weight incl. packaging
0.92
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
Yes
Battery connection
Connector
Dimming function
Yes
Luminous flux mains
305 lm
Luminous flux emergency
180 lm
Customs tariff number
94056120
EAN
4260766550423
Luminaire type
Exit sign, Safety luminaire
Mounting
Wall mounting
Recognition distance
16 m
Pictograph
Set
Illuminant
LED
Housing material
Plastic
Housing color
white
Protection type (IP)
IP65
Impact resistance (IK)
6
Certification
CE, WEEE, D-Sign
Insulation class
2
Supply
Single Battery
Monitoring
Wireless Professional (WL)
Bridging time
3 h
Battery
LiFePO4 6,4 V/1,2 Ah
Operating mode
Standby circuit / permanent circuit
Input voltageAC
230 V
Input frequency
50 Hz
Power max.
5,3 W
Power DS
4,3 W
Power BS
0,7 W
Ambient temperature DS
-5 °C - 35 °C
Ambient temperature BS
-5 °C - 35 °C
Depth
86 mm
Width
390 mm
Height
99 mm
Weight
0.82
Weight incl. packaging
0.92
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
Yes
Battery connection
Connector
Dimming function
Yes
Luminous flux mains
305 lm
Luminous flux emergency
180 lm
Customs tariff number
94056120
EAN
4260766550423

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic


Accessories
