KWIW039ML-OP

Emergency light Centralised power supply systems
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Classic, robust, plastic, beam-like safety luminaire with a high level of protection and for versatile use.

Control and monitoring via central power supply system. The luminaire is fitted with the innovative flexible plug-in system for rapid use of the right lens. The hall lens is supplied with every luminaire. A round lens, spotlight lens and beam lens are available as options.


Product data

Luminaire type
Emergency light
Supply
Centralised power supply systems
Mounting
Universal
Monitoring
Central power supply (ML)
Pictograph
No
Bridging time
CPS
Illuminant
LED
Battery
/
Housing material
Polycarbonate
Operating mode
single luminaire switching
Housing color
White
Input voltageAC
230 V
Protection type (IP)
IP65
Input frequency
50 / 60 Hz
Impact resistance (IK)
6
Input voltage DC
216 V
Certification
CE, WEEE, D-Sign
Power max.
9,7 W
Insulation class
2
Power maintained
9,7 W
Power non-maintained
1,1 W
Ambient temperature maintained mode
-5 °C to 40 °C
Ambient temperature non-maintained mode
-5 °C to 40 °C

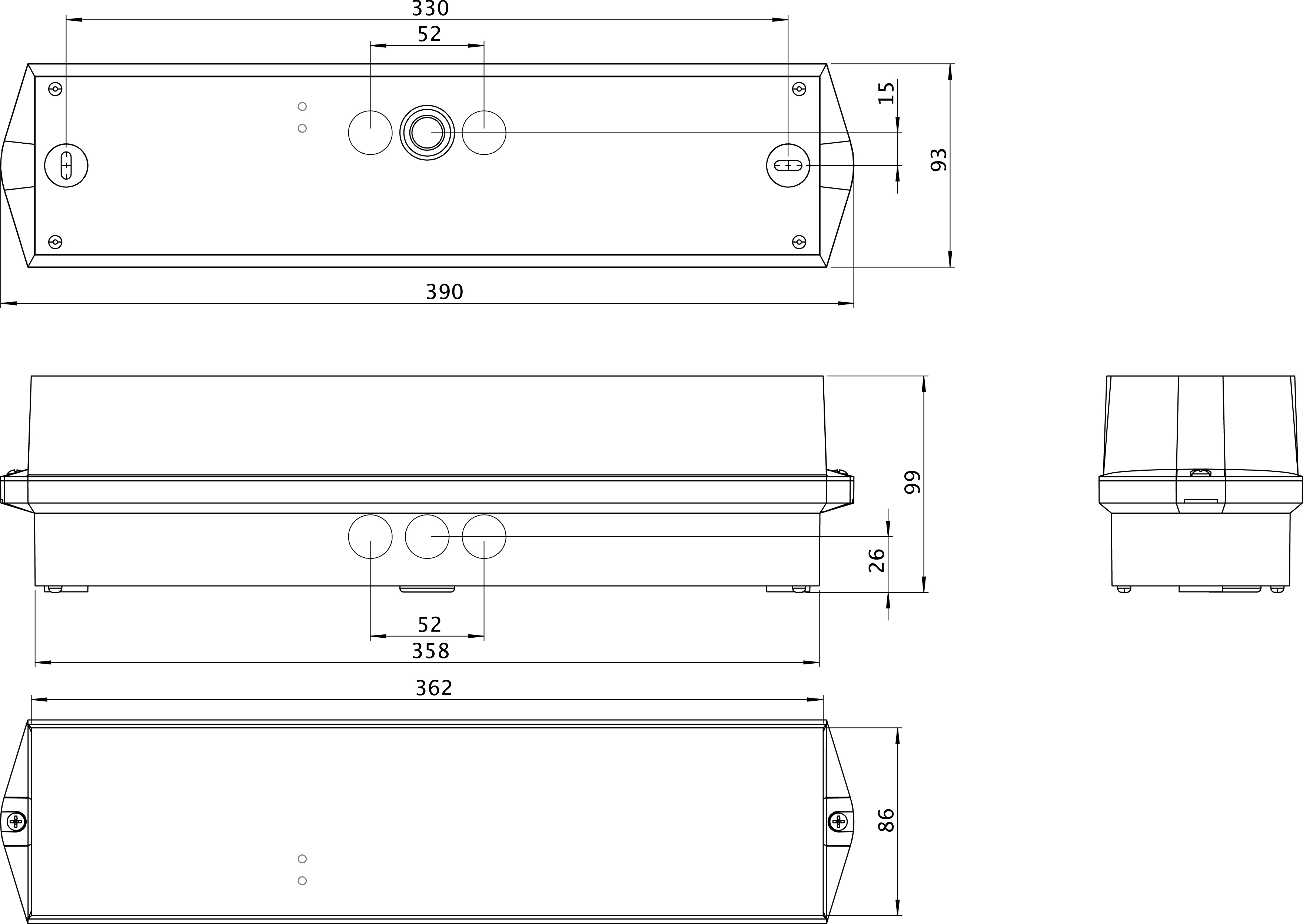

Depth
86 mm
Width
390 mm
Height
99 mm
Weight
0.67
Weight incl. packaging
0.77
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
No
Dimming function
Yes
Luminous flux mains
1050 lm
Luminous flux emergency
1050 lm
Customs tariff number
94056120
EAN
4260682149343
Luminaire type
Emergency light
Mounting
Universal
Pictograph
No
Illuminant
LED
Housing material
Polycarbonate
Housing color
White
Protection type (IP)
IP65
Impact resistance (IK)
6
Certification
CE, WEEE, D-Sign
Insulation class
2
Supply
Centralised power supply systems
Monitoring
Central power supply (ML)
Bridging time
CPS
Battery
/
Operating mode
single luminaire switching
Input voltageAC
230 V
Input frequency
50 / 60 Hz
Input voltage DC
216 V
Power max.
9,7 W
Power maintained
9,7 W
Power non-maintained
1,1 W
Ambient temperature maintained mode
-5 °C to 40 °C
Ambient temperature non-maintained mode
-5 °C to 40 °C
Depth
86 mm
Width
390 mm
Height
99 mm
Weight
0.67
Weight incl. packaging
0.77
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
No
Dimming function
Yes
Luminous flux mains
1050 lm
Luminous flux emergency
1050 lm
Customs tariff number
94056120
EAN
4260682149343

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
