KWID019ML

Exit sign Centralised power supply systems
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Classic, robust, plastic, beam-like emergency exit sign luminaire with a high level of protection and self-adhesive pictogram for versatile use.

Intended for ceiling mounting when used as an emergency exit sign luminaire. Without the use of pictograms, it can be used as a safety luminaire, preferably for ceiling mounting.

Control and monitoring via central power supply system. Planning certainty is provided by tool-free, variable use of the pictograms on site. A set of pictograms corresponding to DIN ISO 7010 (arrow to the right, left, up and down) is supplied as standard.


Product data

Luminaire type
Exit sign
Insulation class
2
Mounting
Recessed mounting
Supply
Centralised power supply systems
Recognition distance
16 m
Monitoring
Central power supply (ML)
Pictograph
Set
Bridging time
CPS
Illuminant
LED
Battery
/
Housing material
Plastic
Operating mode
single luminaire switching
Housing color
white
Input voltageAC
230 V
Protection type (IP)
IP65
Input frequency
50 / 60 Hz
Impact resistance (IK)
6
Input voltage DC
216 V
Certification
WEEE, CE, D-Sign, TÜV Rheinland Type approved, ENEC
Power max.
5,2 W
Power DS
5,2 W
Power BS
1,1 W
Ambient temperature DS
-30 °C to 40 °C
Ambient temperature BS
-20 °C to 40 °C

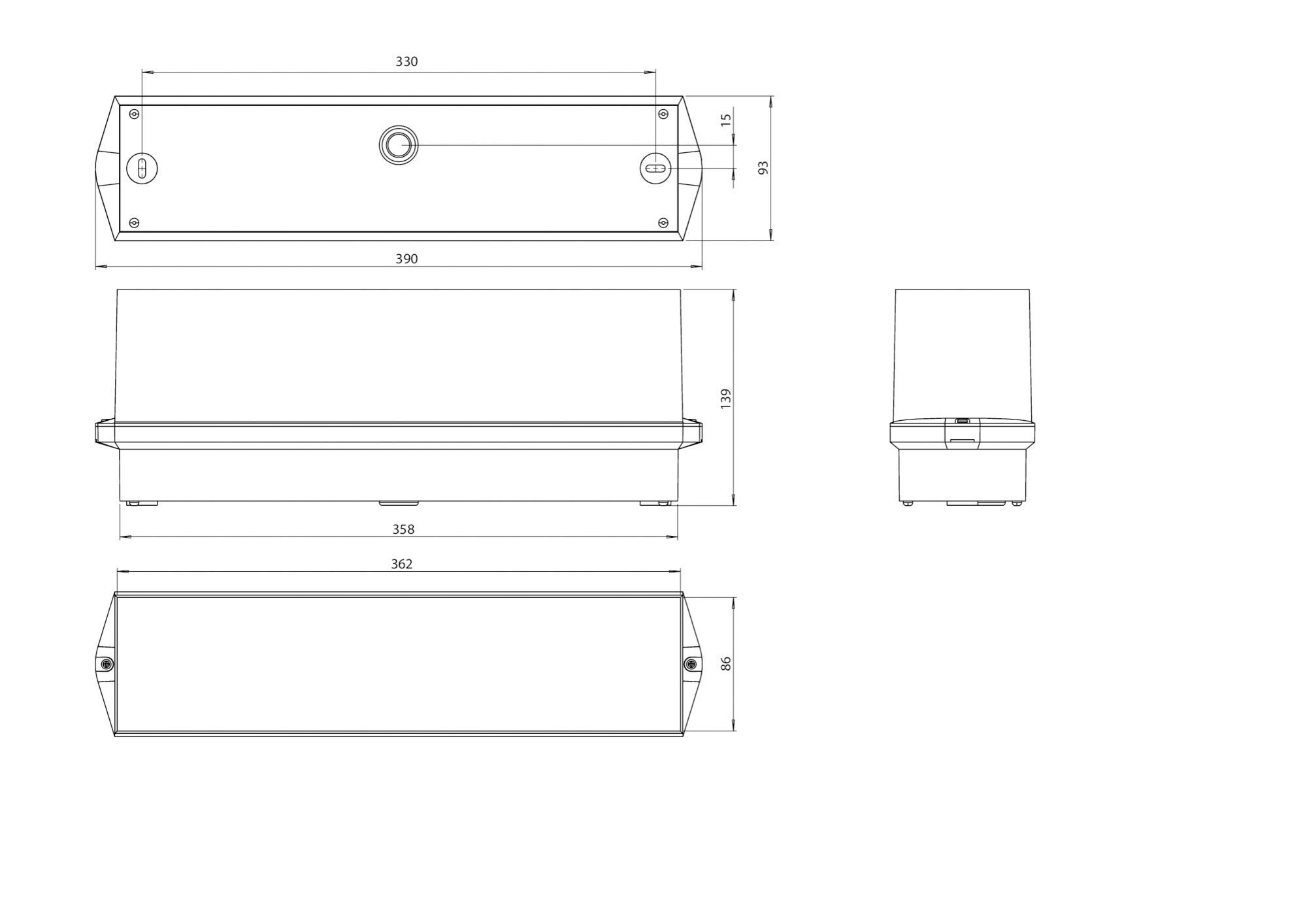

Depth
93 mm
Width
390 mm
Height
139 mm
Weight
0.77
Weight incl. packaging
0.87
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
No
Dimming function
Yes
Luminous flux mains
335 lm
Luminous flux emergency
335 lm
Customs tariff number
94056120
EAN
4260659566272
Luminaire type
Exit sign
Mounting
Recessed mounting
Recognition distance
16 m
Pictograph
Set
Illuminant
LED
Housing material
Plastic
Housing color
white
Protection type (IP)
IP65
Impact resistance (IK)
6
Certification
WEEE, CE, D-Sign, TÜV Rheinland Type approved, ENEC
Insulation class
2
Supply
Centralised power supply systems
Monitoring
Central power supply (ML)
Bridging time
CPS
Battery
/
Operating mode
single luminaire switching
Input voltageAC
230 V
Input frequency
50 / 60 Hz
Input voltage DC
216 V
Power max.
5,2 W
Power DS
5,2 W
Power BS
1,1 W
Ambient temperature DS
-30 °C to 40 °C
Ambient temperature BS
-20 °C to 40 °C
Depth
93 mm
Width
390 mm
Height
139 mm
Weight
0.77
Weight incl. packaging
0.87
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
No
Dimming function
Yes
Luminous flux mains
335 lm
Luminous flux emergency
335 lm
Customs tariff number
94056120
EAN
4260659566272

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
