GAXW403SC

Exit sign
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Emergency exit sign luminaire with plastic pane for surface mounting on the wall and for identifying emergency and escape routes. It is based on the design of the A series luminaire family, which provides solutions for any mounting and has won the German Design Award for its uniform, straight-line design. The luminaires are equipped with modern LED illuminants and provide flexibility through their interchangeable pictograms.

Automatic monitoring of safety luminaire with SelfControl. Display edge luminaire with integrated light distribution for even pictogram illumination. Suited to inscription on one or two sides. Planning certainty is provided by tool-free, variable use of the pictograms on site. A set of pictograms corresponding to DIN ISO 7010 (arrow to the right, left, up and down) is supplied as standard.


Product data

Luminaire type
Exit sign
Insulation class
2
Mounting
Wall mounting
Monitoring
SelfControl (SC)
Recognition distance
30 m
Bridging time
3 h
Pictograph
Set
Battery
LiFePO4 6,4 V/1,2 Ah
Illuminant
LED
Power max.
4,2 W
Housing material
Plastic
Power DS
3,3 W
Housing color
white
Power BS
0,9 W
Protection type (IP)
IP40
Ambient temperature DS
-5 °C to 40 °C
Impact resistance (IK)
5
Ambient temperature BS
-5 °C to 40 °C
Certification
WEEE, CE, 5 earys warranty

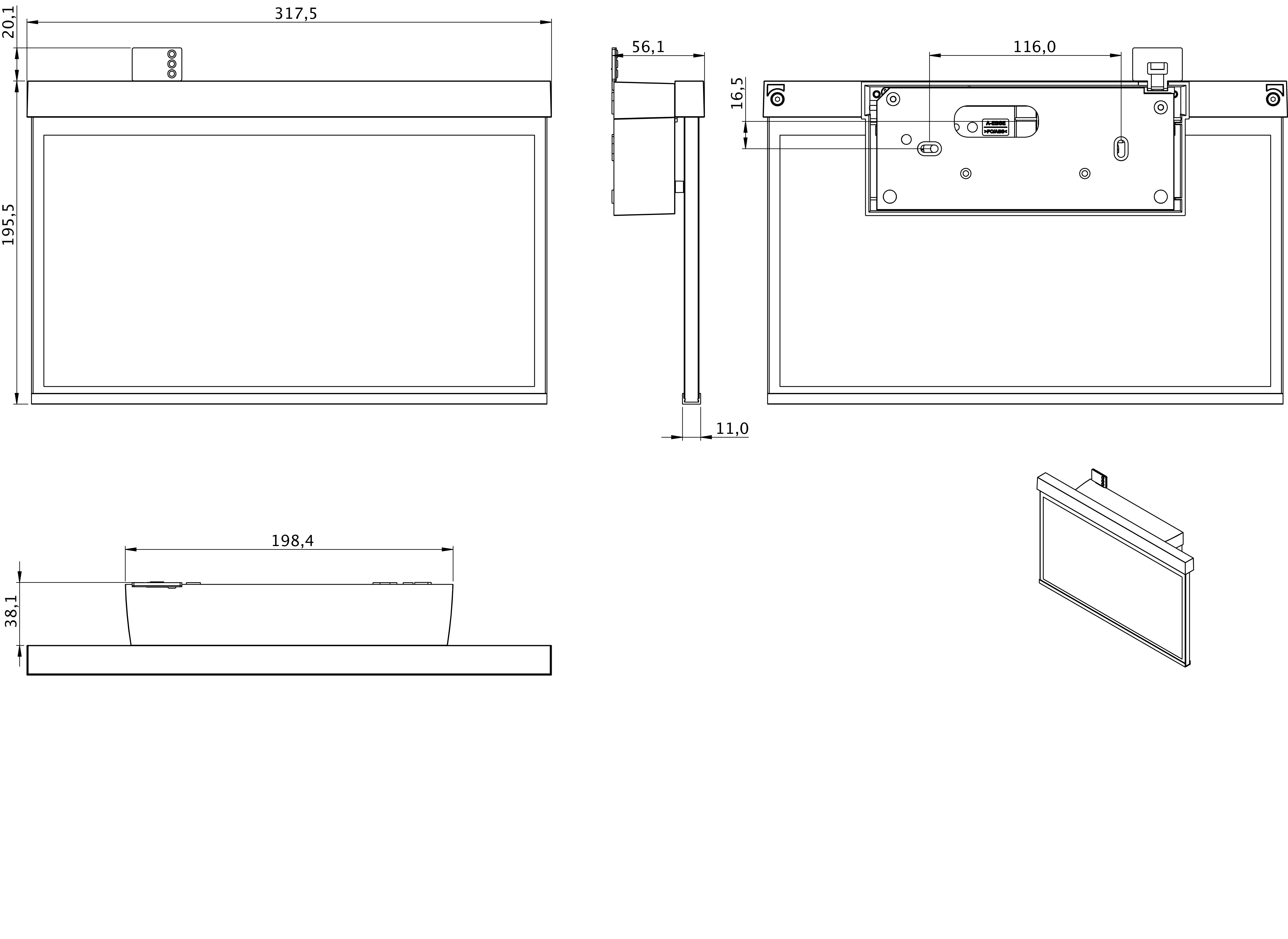

Depth
56.1 mm
Width
317.5 mm
Height
195.5 mm
Weight
0.96
Weight incl. packaging
1.45
Customs tariff number
94056120
EAN
4260766556241
Luminaire type
Exit sign
Mounting
Wall mounting
Recognition distance
30 m
Pictograph
Set
Illuminant
LED
Housing material
Plastic
Housing color
white
Protection type (IP)
IP40
Impact resistance (IK)
5
Certification
WEEE, CE, 5 earys warranty
Insulation class
2
Monitoring
SelfControl (SC)
Bridging time
3 h
Battery
LiFePO4 6,4 V/1,2 Ah
Power max.
4,2 W
Power DS
3,3 W
Power BS
0,9 W
Ambient temperature DS
-5 °C to 40 °C
Ambient temperature BS
-5 °C to 40 °C
Depth
56.1 mm
Width
317.5 mm
Height
195.5 mm
Weight
0.96
Weight incl. packaging
1.45
Customs tariff number
94056120
EAN
4260766556241

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
