GAMW403SC

Exit sign Self-contained
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Emergency exit sign luminaire with plastic pane for surface mounting on the wall and for identifying emergency and escape routes. It is based on the design of the A series luminaire family, which provides solutions for any mounting and has won the German Design Award for its uniform, straight-line design. The luminaires are equipped with modern LED illuminants and provide flexibility through their interchangeable pictograms.

Automatic monitoring of safety luminaire with SelfControl. Display edge luminaire with integrated light distribution for even pictogram illumination. Suited to inscription on one or two sides. Planning certainty is provided by tool-free, variable use of the pictograms on site. A set of pictograms corresponding to DIN ISO 7010 (arrow to the right, left, up and down) is supplied as standard.


Product data

Luminaire type
Exit sign
Insulation class
2
Mounting
Wall mounting
Supply
Self-contained
Recognition distance
22 m
Monitoring
SelfControl (SC)
Pictograph
Set
Bridging time
3 h
Illuminant
LED
Battery
LiFePO4 6,4 V/1,2 Ah
Housing material
Polycarbonate
Operating mode
Non-maintained / maintained
Housing color
White
Input voltageAC
180 V - 250 V
Protection type (IP)
IP40
Input frequency
50 Hz
Impact resistance (IK)
5
Power max.
4,2 W
Certification
WEEE, CE, 5 years warranty
Power maintained
3,3 W
Power non-maintained
0,9 W
Ambient temperature maintained mode
-5 °C to 40 °C
Ambient temperature non-maintained mode
-5 °C to 40 °C

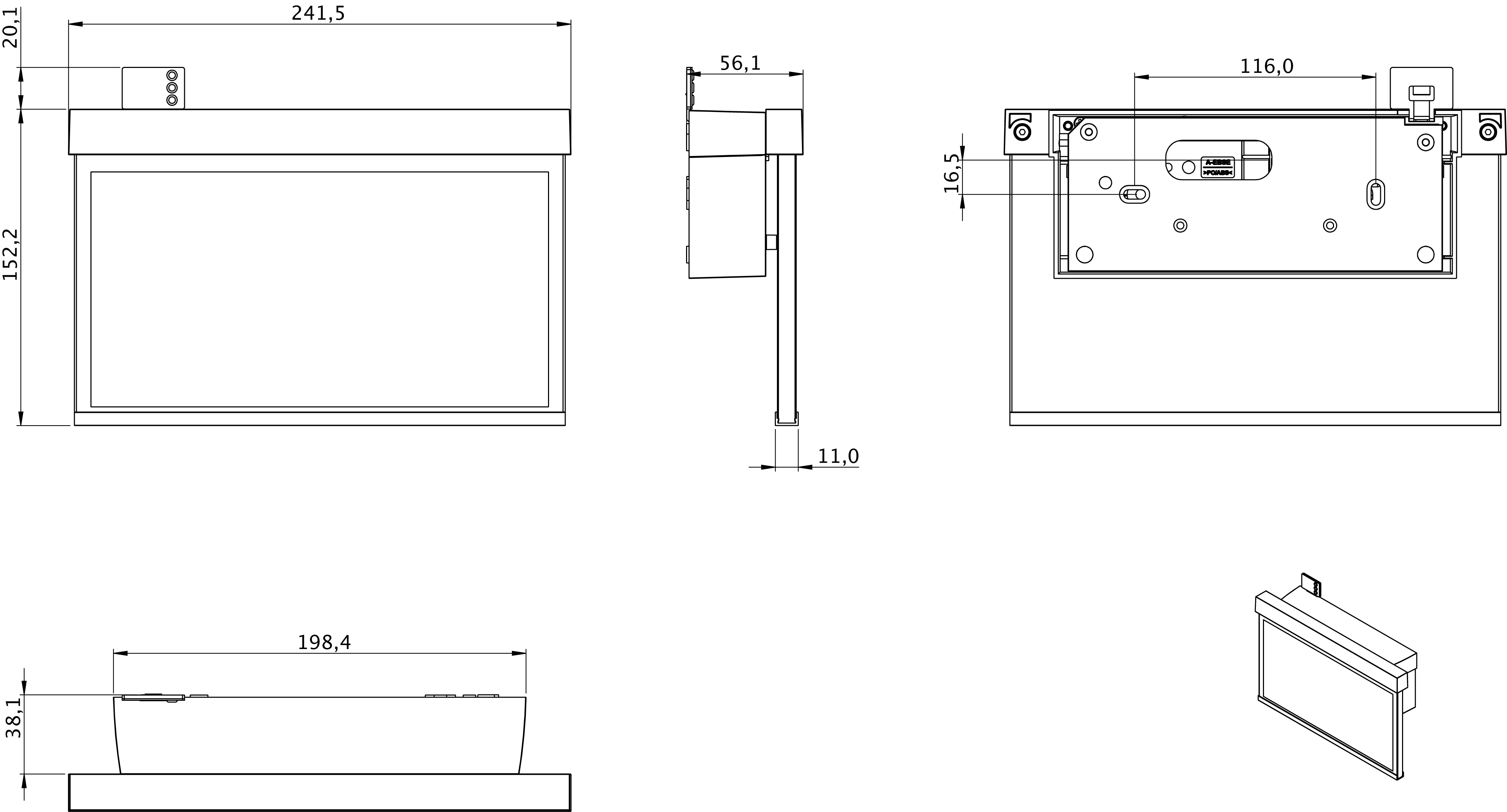

Depth
56.1 mm
Width
241.5 mm
Height
152.2 mm
Weight
0.83
Weight incl. packaging
1.19
Switching input
Yes
Emergency light blocking
No
Battery connection
Connector
Dimming function
No
Customs tariff number
94056120
EAN
4260766556203
Luminaire type
Exit sign
Mounting
Wall mounting
Recognition distance
22 m
Pictograph
Set
Illuminant
LED
Housing material
Polycarbonate
Housing color
White
Protection type (IP)
IP40
Impact resistance (IK)
5
Certification
WEEE, CE, 5 years warranty
Insulation class
2
Supply
Self-contained
Monitoring
SelfControl (SC)
Bridging time
3 h
Battery
LiFePO4 6,4 V/1,2 Ah
Operating mode
Non-maintained / maintained
Input voltageAC
180 V - 250 V
Input frequency
50 Hz
Power max.
4,2 W
Power maintained
3,3 W
Power non-maintained
0,9 W
Ambient temperature maintained mode
-5 °C to 40 °C
Ambient temperature non-maintained mode
-5 °C to 40 °C
Depth
56.1 mm
Width
241.5 mm
Height
152.2 mm
Weight
0.83
Weight incl. packaging
1.19
Switching input
Yes
Emergency light blocking
No
Battery connection
Connector
Dimming function
No
Customs tariff number
94056120
EAN
4260766556203

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
