GABW509CC

Exit sign Centralised power supply systems
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Emergency exit sign luminaire with plastic pane for surface mounting on the wall and for identifying emergency and escape routes. It is based on the design of the A series luminaire family, which provides solutions for any mounting and has won the German Design Award for its uniform, straight-line design. The luminaires are equipped with modern LED illuminants and provide flexibility through their interchangeable pictograms.

Control and monitoring via central 24 V low-power system. The requested pictogram (arrow to the right, left, up or down) is supplied as standard.


Product data

Luminaire type
Exit sign
Insulation class
2
Mounting
Wall mounting
Supply
Centralised power supply systems
Recognition distance
40 m
Monitoring
CoreCompact 24 (CC)
Pictograph
acc. to Specification
Bridging time
CPS
Illuminant
LED
Battery
/
Housing material
Plastic
Operating mode
Standby circuit / permanent circuit
Housing color
white
Input voltageAC
24 V
Protection type (IP)
IP40
Power max.
3,7 W
Impact resistance (IK)
5
Power DS
3,7 W
Certification
WEEE, CE
Power BS
0,4 W
Ambient temperature DS
-5 °C to 40 °C
Ambient temperature BS
-5 °C to 40 °C

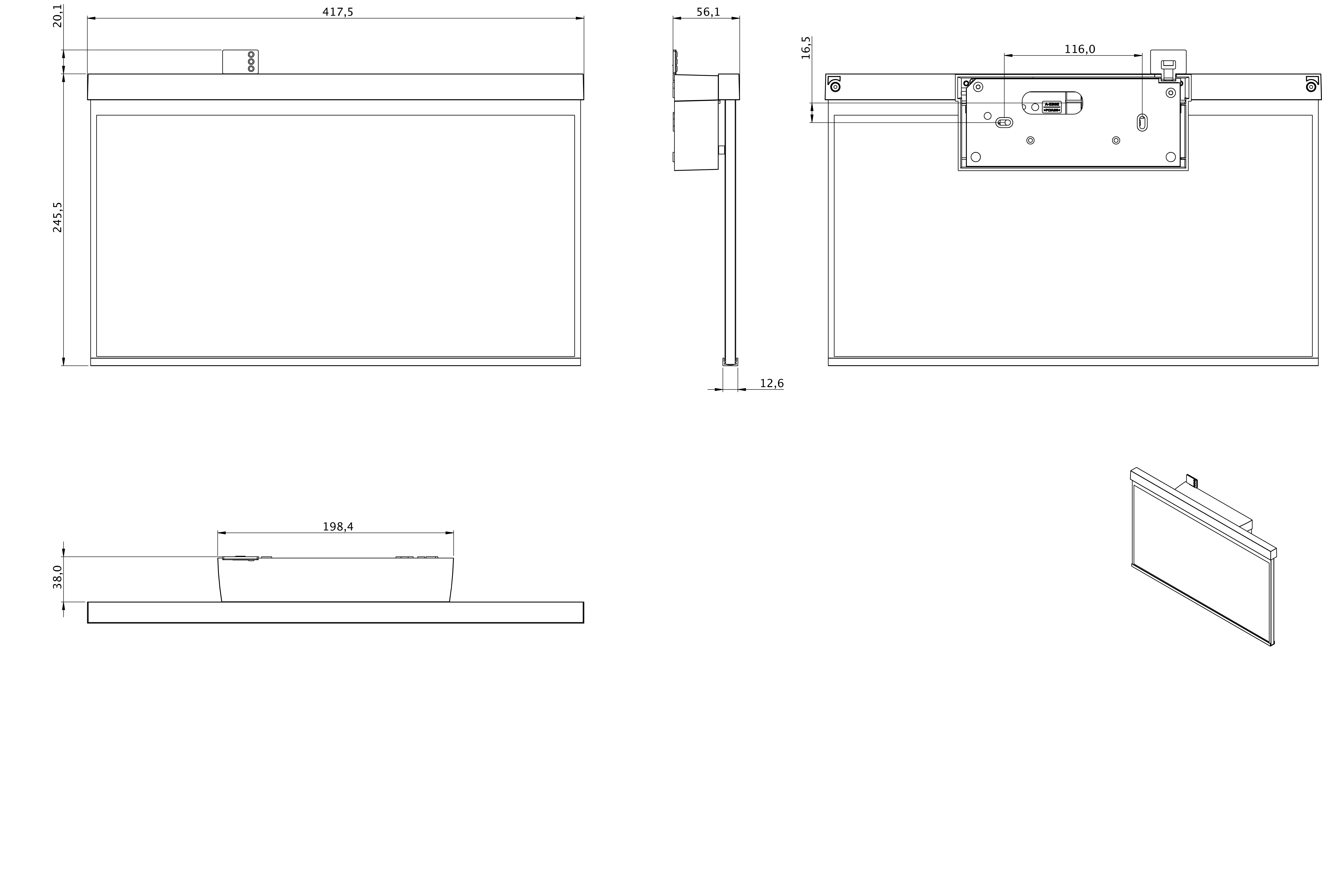

Depth
80.9 mm
Width
417.5 mm
Height
245.5 mm
Weight
1.2
Weight incl. packaging
1.85
Connection cross-section
2.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
No
Customs tariff number
94056120
EAN
4260766551413
Luminaire type
Exit sign
Mounting
Wall mounting
Recognition distance
40 m
Pictograph
acc. to Specification
Illuminant
LED
Housing material
Plastic
Housing color
white
Protection type (IP)
IP40
Impact resistance (IK)
5
Certification
WEEE, CE
Insulation class
2
Supply
Centralised power supply systems
Monitoring
CoreCompact 24 (CC)
Bridging time
CPS
Battery
/
Operating mode
Standby circuit / permanent circuit
Input voltageAC
24 V
Power max.
3,7 W
Power DS
3,7 W
Power BS
0,4 W
Ambient temperature DS
-5 °C to 40 °C
Ambient temperature BS
-5 °C to 40 °C
Depth
80.9 mm
Width
417.5 mm
Height
245.5 mm
Weight
1.2
Weight incl. packaging
1.85
Connection cross-section
2.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
No
Customs tariff number
94056120
EAN
4260766551413

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
