FMDS529CC-AZ

Safety luminaire Centralised power supply systems
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Robust zinc die-cast safety luminaire for mounting on the ceiling and for illuminating escape and emergency routes.

Control and monitoring via central 24 V low-power system.


Product data

Luminaire type
Safety luminaire
Supply
Centralised power supply systems
Mounting
Recessed mounting
Monitoring
CoreCompact 24 (CC)
Pictograph
No
Bridging time
CPS
Illuminant
LED
Battery
/
Housing material
Zinc die-cast
Operating mode
Standby circuit / permanent circuit
Housing color
Anthracite
Input voltageAC
24 V
Protection type (IP)
IP65
Power max.
5,1 W
Impact resistance (IK)
8
Power DS
5,1 W
Certification
WEEE, CE, D-Sign
Power BS
0,4 W
Insulation class
3
Ambient temperature DS
-5 °C - 40 °C
Ambient temperature BS
-5 °C - 40 °C

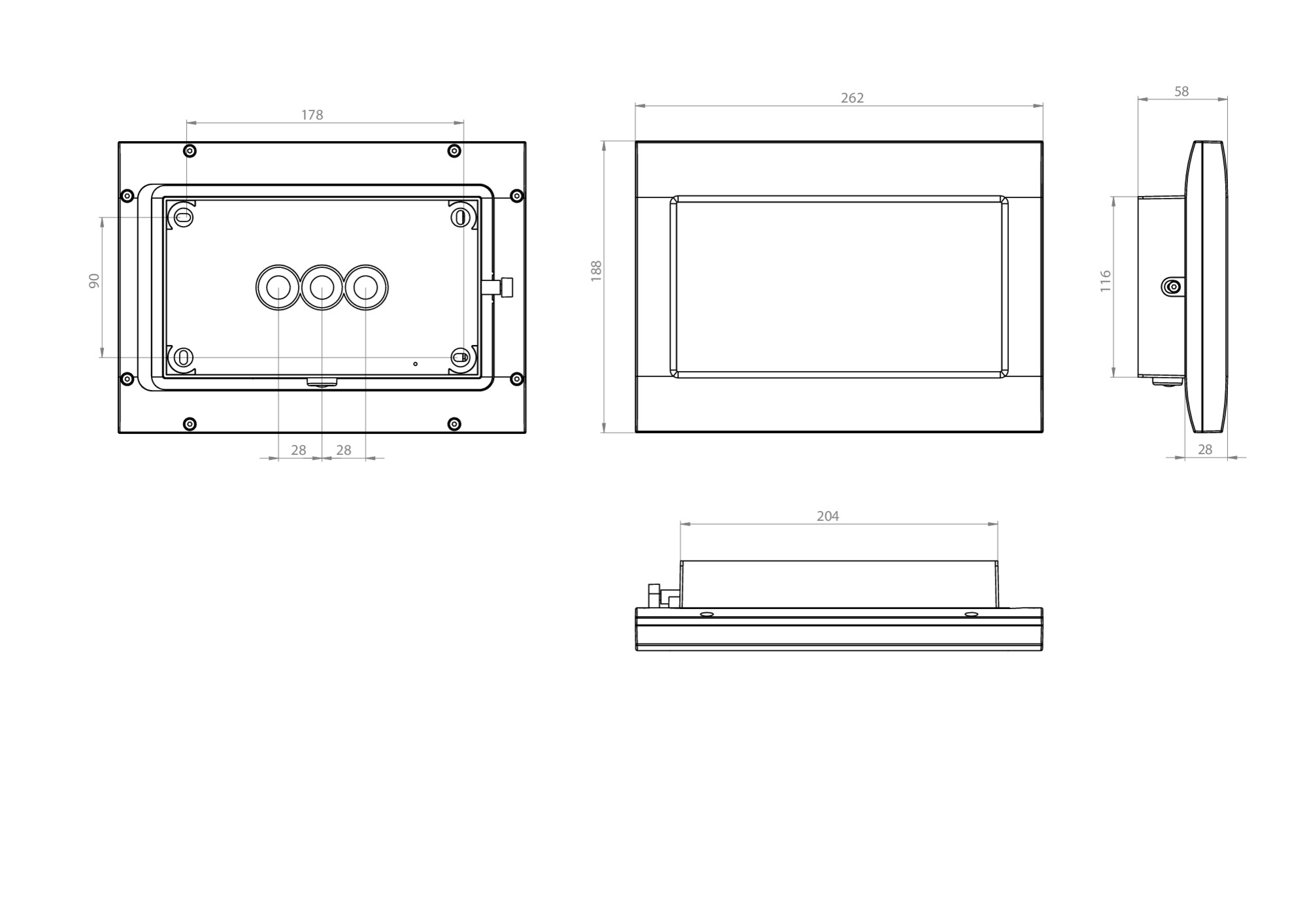

Depth
58 mm
Width
262 mm
Height
188 mm
Weight
1.92
Weight incl. packaging
2.02
Connection cross-section
2.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
No
Luminous flux mains
520 lm
Luminous flux emergency
520 lm
Customs tariff number
94056180
EAN
4260682157126
Luminaire type
Safety luminaire
Mounting
Recessed mounting
Pictograph
No
Illuminant
LED
Housing material
Zinc die-cast
Housing color
Anthracite
Protection type (IP)
IP65
Impact resistance (IK)
8
Certification
WEEE, CE, D-Sign
Insulation class
3
Supply
Centralised power supply systems
Monitoring
CoreCompact 24 (CC)
Bridging time
CPS
Battery
/
Operating mode
Standby circuit / permanent circuit
Input voltageAC
24 V
Power max.
5,1 W
Power DS
5,1 W
Power BS
0,4 W
Ambient temperature DS
-5 °C - 40 °C
Ambient temperature BS
-5 °C - 40 °C
Depth
58 mm
Width
262 mm
Height
188 mm
Weight
1.92
Weight incl. packaging
2.02
Connection cross-section
2.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
No
Luminous flux mains
520 lm
Luminous flux emergency
520 lm
Customs tariff number
94056180
EAN
4260682157126

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
