YMOBM-RE-SWISSPIR-BAT

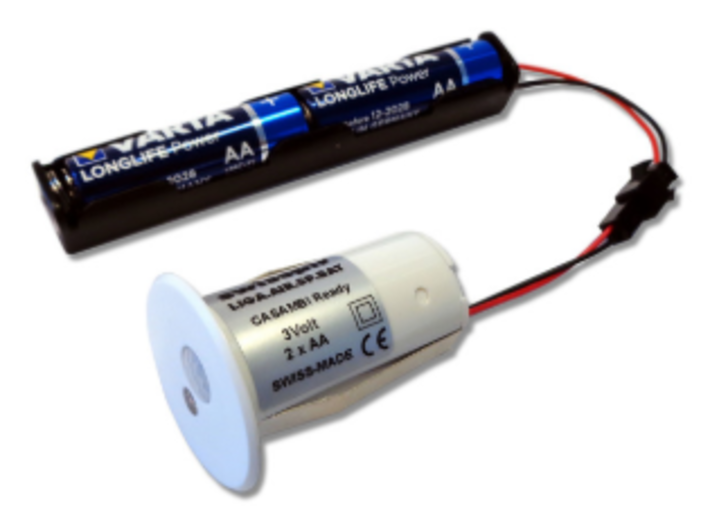

CASAMBI® Swisspir motion detector
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

CASAMBI® motion detectors consist of integrated CASAMBI® technology and make it possible to control luminaires without wiring work. Use the CASAMBI® app to configure parameters such as brightness and automatically switching on and off at dusk or in the event of movement. This can result in savings of up to 90%. The sensors are available in various designs for ceiling mounting or recessed installation and with various detection zones from 5 to 28 m.

Our SWISSPIR is the smallest in the series and can be discreetly integrated in room designs.


Product data

Diameter
25 mm
Ambient temperature (Max)
+50 °C
Product dimensions Height
48 mm
Communication type
Bluetooth
Product weight
0.07 kg
Max. transmission power
+4 dBm
Color
white
Sensor technology
Infrared
Housing material
Plastic
Angle of coverage
100 °
Certification
CE
Sensor range
7 m
Protection type (IP)
IP44
Mounting
Ceiling mounting
Storage temperature range (Min)
-25 °C
Customs tariff number
85371098
Storage temperature range (Max)
+65 °C
EAN
4250835520068
Ambient temperature (Min)
-20 °C
Diameter
25 mm
Product dimensions Height
48 mm
Product weight
0.07 kg
Color
white
Housing material
Plastic
Certification
CE
Protection type (IP)
IP44
Storage temperature range (Min)
-25 °C
Storage temperature range (Max)
+65 °C
Ambient temperature (Min)
-20 °C
Ambient temperature (Max)
+50 °C
Communication type
Bluetooth
Max. transmission power
+4 dBm
Sensor technology
Infrared
Angle of coverage
100 °
Sensor range
7 m
Mounting
Ceiling mounting
Customs tariff number
85371098
EAN
4250835520068
