MDS3

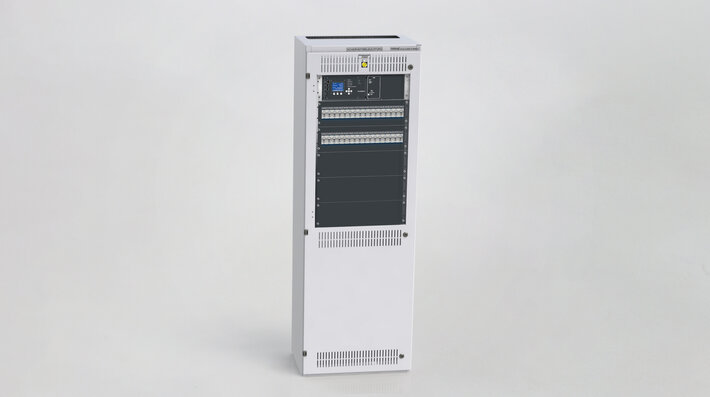

MDS series standalone housing without battery compartment

The MDS system (standalone housing without battery compartment) is a centralised power supply system for universal use in accordance with DIN EN 50171, which can be equipped with circuits of various power ranges.

Individual luminaire / circuit monitoring is not possible with this system. The circuits can also only be switched in combination with the respective switching device and/or restrictions apply to switching
. It goes without saying that the MDC can be networked and also monitored via web interface.

Up to 32 MDC substations can be connected to one MDC main station by means of an Ethernet network connection and several subdistributors. The system can be configured using the keyboard on the device itself or via a TCP/IP network connection to a remote PC.


Product data

Number of DCM modules
0 pcs.
Input voltageAC
230 V V
Number of circuits
max. 80
Depth
450 mm
Number of charging modules
3 pcs.
Width
600 mm
Battery compartment
No
Height
1800 mm
Supply power 1 h
22800 W
Weight
157 kg
Supply power 3 h
7600 W
Weight
157
Supply power 8 h
2800 W
Customs tariff number
85371098
Number of DCM modules
0 pcs.
Number of circuits
max. 80
Number of charging modules
3 pcs.
Battery compartment
No
Supply power 1 h
22800 W
Supply power 3 h
7600 W
Supply power 8 h
2800 W
Input voltageAC
230 V V
Depth
450 mm
Width
600 mm
Height
1800 mm
Weight
157 kg
Weight
157
Customs tariff number
85371098


Accessories

  • PRUEFBUCH-BELEUCHTUNGSANLAGEN
