ZPMR029

Emergency light Centralised power supply systems
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

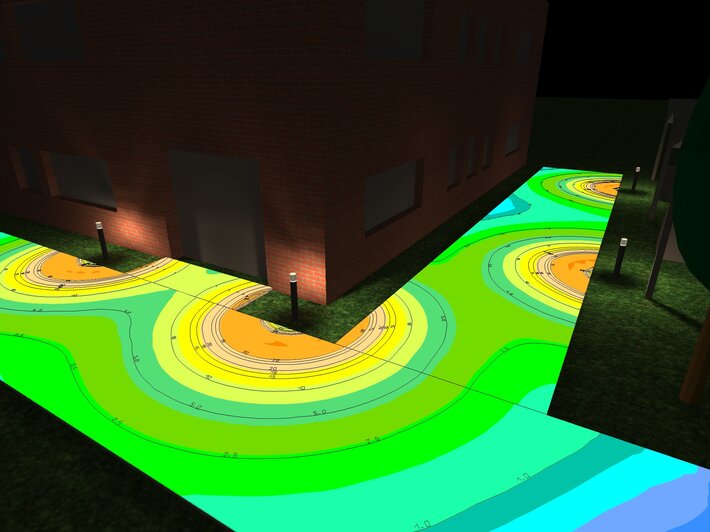

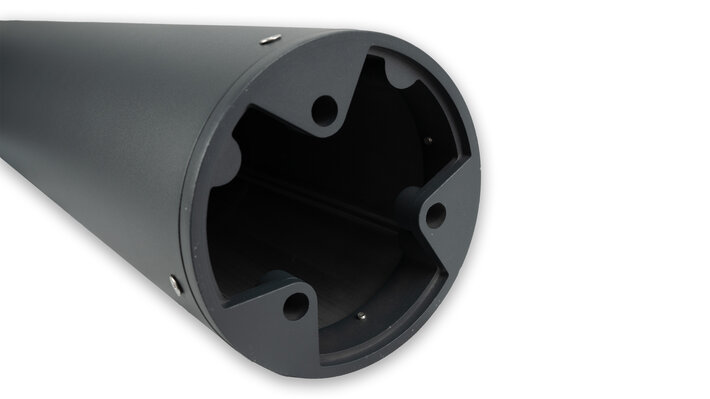

The bollard light has a smooth cylindrical body with no protruding parts. It is made of die-cast aluminum with an anthracite surface. The light outlet is made of robust, transparent polycarbonate and enables even light distribution around the lamp.

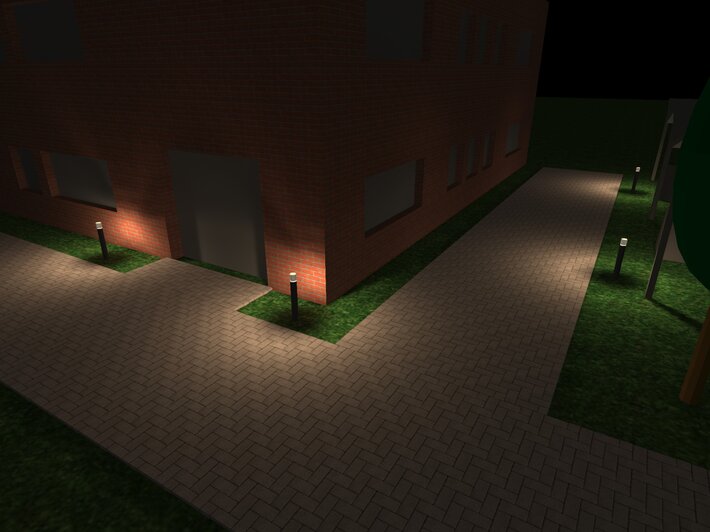

The luminaire is particularly suitable for illuminating outside areas, as well as escape and rescue routes outside the building to a safe area. The color temperature on the lamp can be set to 2700K, 3500K or 4000K.

Optionally, the luminaire can be supplied with an emergency lighting supply unit type NVGS in the event of a power failure and thus be integrated into a wireless professional installation, for example, with radio monitoring.


Product data

Luminaire type
Emergency light
Monitoring
Without monitoring
Pictograph
No
Bridging time
CPS
Illuminant
LED
Battery
/
Housing material
Zinc die-cast
Operating mode
Permanent circuit
Housing color
Anthracite
Input voltageAC
230 V
Protection type (IP)
IP65
Input frequency
50 / 60 Hz
Impact resistance (IK)
10
Input voltage DC
216 V
Certification
CE, WEEE
Power max.
10 W
Insulation class
1
Power maintained
10 W
Supply
Centralised power supply systems
Ambient temperature maintained mode
-20 °C to 50 °C
Ambient temperature non-maintained mode
-20 °C to 50 °C

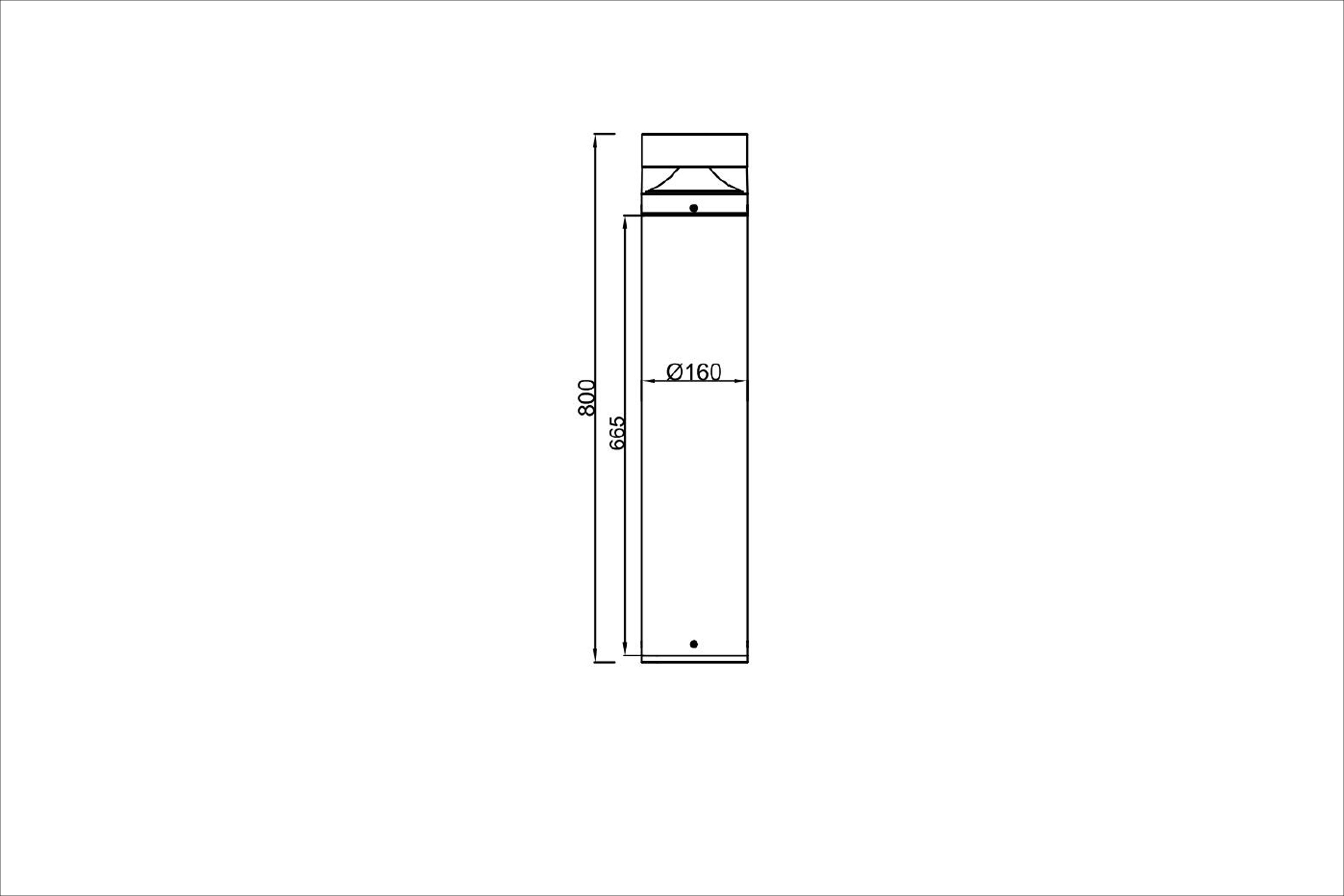

Height
800 mm
Diameter
160 mm
Weight
5.6
Weight incl. packaging
6.2
Switching input
No
Emergency light blocking
No
Battery connection
No
Dimming function
No
Luminous flux mains
610 lm
Luminous flux emergency
610 lm
Customs tariff number
94056180
EAN
4262483027066
Luminaire type
Emergency light
Pictograph
No
Illuminant
LED
Housing material
Zinc die-cast
Housing color
Anthracite
Protection type (IP)
IP65
Impact resistance (IK)
10
Certification
CE, WEEE
Insulation class
1
Supply
Centralised power supply systems
Monitoring
Without monitoring
Bridging time
CPS
Battery
/
Operating mode
Permanent circuit
Input voltageAC
230 V
Input frequency
50 / 60 Hz
Input voltage DC
216 V
Power max.
10 W
Power maintained
10 W
Ambient temperature maintained mode
-20 °C to 50 °C
Ambient temperature non-maintained mode
-20 °C to 50 °C
Height
800 mm
Diameter
160 mm
Weight
5.6
Weight incl. packaging
6.2
Switching input
No
Emergency light blocking
No
Battery connection
No
Dimming function
No
Luminous flux mains
610 lm
Luminous flux emergency
610 lm
Customs tariff number
94056180
EAN
4262483027066

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
