ZAW411WL-TT-AZ

Emergency light Self-contained
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Robust, zinc die-cast wall surface-mounted luminaire for illuminating escape and emergency routes near exits in accordance with DIN EN 60598-1, DIN EN 60598-2-22 and DIN EN 1838.
Concealed screw connection for an attractive design. Available as luminaire with a central battery system or LED single battery.

Wireless central control and monitoring for large installations of up to 50,000 luminaires with Wireless Professional.


Product data

Luminaire type
Emergency light
Supply
Self-contained
Mounting
Wall mounting
Monitoring
Wireless Professional (WL)
Pictograph
No
Bridging time
1 h
Illuminant
LED
Battery
LiFePO4 3,2 V/3,3 Ah
Housing material
Zinc die-cast
Operating mode
Non-maintained / maintained
Housing color
Anthracite
Input voltageAC
230 V
Protection type (IP)
IP65
Input frequency
50 / 60 Hz
Impact resistance (IK)
8
Input voltage DC
- V
Certification
WEEE, CE, 5 years warranty
Power max.
5,3 W
Insulation class
1
Power maintained
3,9 W
Power non-maintained
1,5 W
Ambient temperature maintained mode
-25 °C to 40 °C
Ambient temperature non-maintained mode
-25 °C to 40 °C

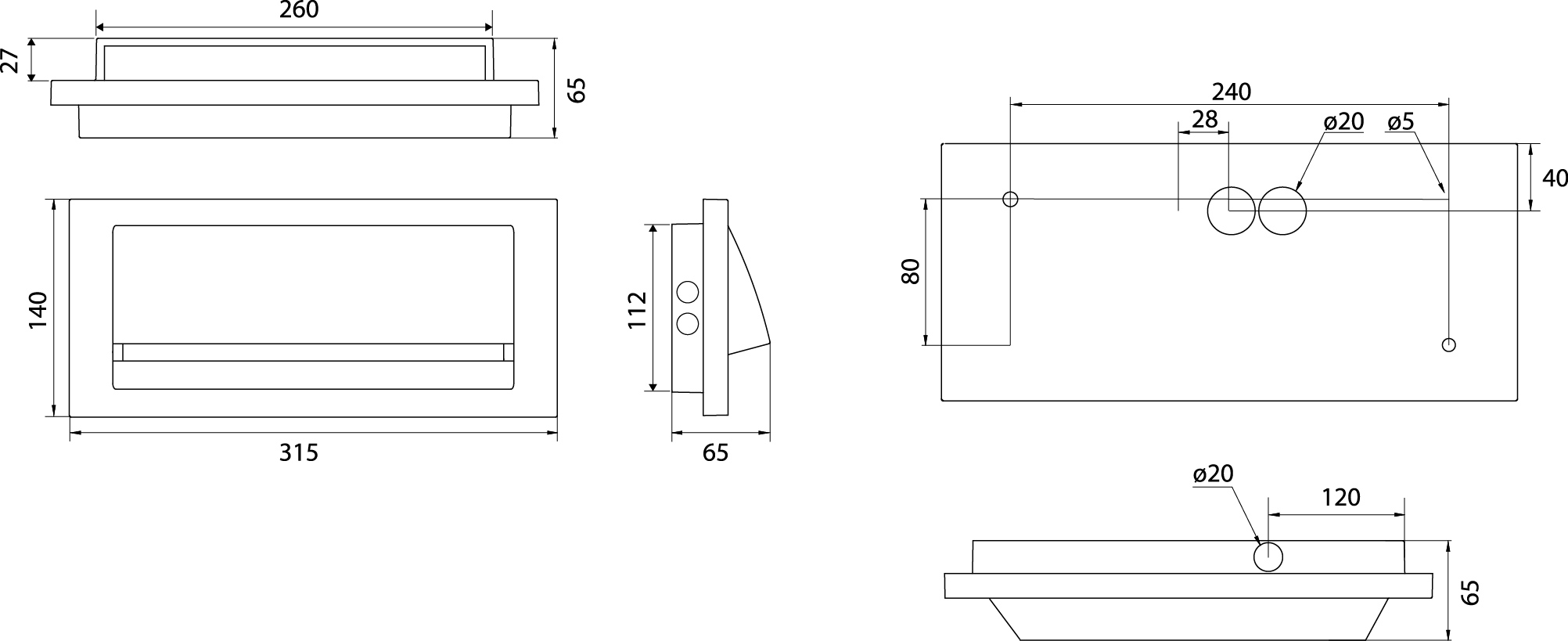

Depth
65 mm
Width
315 mm
Height
140 mm
Weight
2.11
Weight incl. packaging
2.23
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
Connector
Dimming function
No
Luminous flux mains
190 lm
Luminous flux emergency
190 lm
Customs tariff number
94056180
EAN
4260766557934
Luminaire type
Emergency light
Mounting
Wall mounting
Pictograph
No
Illuminant
LED
Housing material
Zinc die-cast
Housing color
Anthracite
Protection type (IP)
IP65
Impact resistance (IK)
8
Certification
WEEE, CE, 5 years warranty
Insulation class
1
Supply
Self-contained
Monitoring
Wireless Professional (WL)
Bridging time
1 h
Battery
LiFePO4 3,2 V/3,3 Ah
Operating mode
Non-maintained / maintained
Input voltageAC
230 V
Input frequency
50 / 60 Hz
Input voltage DC
- V
Power max.
5,3 W
Power maintained
3,9 W
Power non-maintained
1,5 W
Ambient temperature maintained mode
-25 °C to 40 °C
Ambient temperature non-maintained mode
-25 °C to 40 °C
Depth
65 mm
Width
315 mm
Height
140 mm
Weight
2.11
Weight incl. packaging
2.23
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
Connector
Dimming function
No
Luminous flux mains
190 lm
Luminous flux emergency
190 lm
Customs tariff number
94056180
EAN
4260766557934

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
