ZAW011WB-COOLIP54

Safety luminaire Single Battery
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Robust wall-mounted Zinc die-cast luminaire for the lighting of escape and rescue routes in exit areas according to DIN EN 60598-1, DIN EN 60598-2-22 and EN 1838. Appealing design with concealed screws.
Available for central power systems or as a LED self-contained emergency luminaire.

The COOL light is equipped with an external battery housing for installation in the building. The installation of the lamp can be done outdoors or in cold stores.

Wireless control and monitoring for small installations of up to 50 luminaires with Wireless Basic.


Product data

Luminaire type
Safety luminaire
Supply
Single Battery
Mounting
Wall mounting
Monitoring
Wireless Basic (WB)
Pictograph
No
Bridging time
1 h
Illuminant
LED
Battery
LiFePO4 3,2 V/3,3 Ah
Housing material
Zinc die-cast
Operating mode
Standby circuit / permanent circuit
Housing color
white
Input voltageAC
230 V
Protection type (IP)
IP65
Input frequency
50 / 60 Hz
Impact resistance (IK)
8
Input voltage DC
- V
Certification
WEEE, CE
Power max.
5,3 W
Insulation class
1
Power DS
3,9 W
Power BS
1,5 W
Ambient temperature DS
-25 °C to 40 °C
Ambient temperature BS
-25 °C to 40 °C

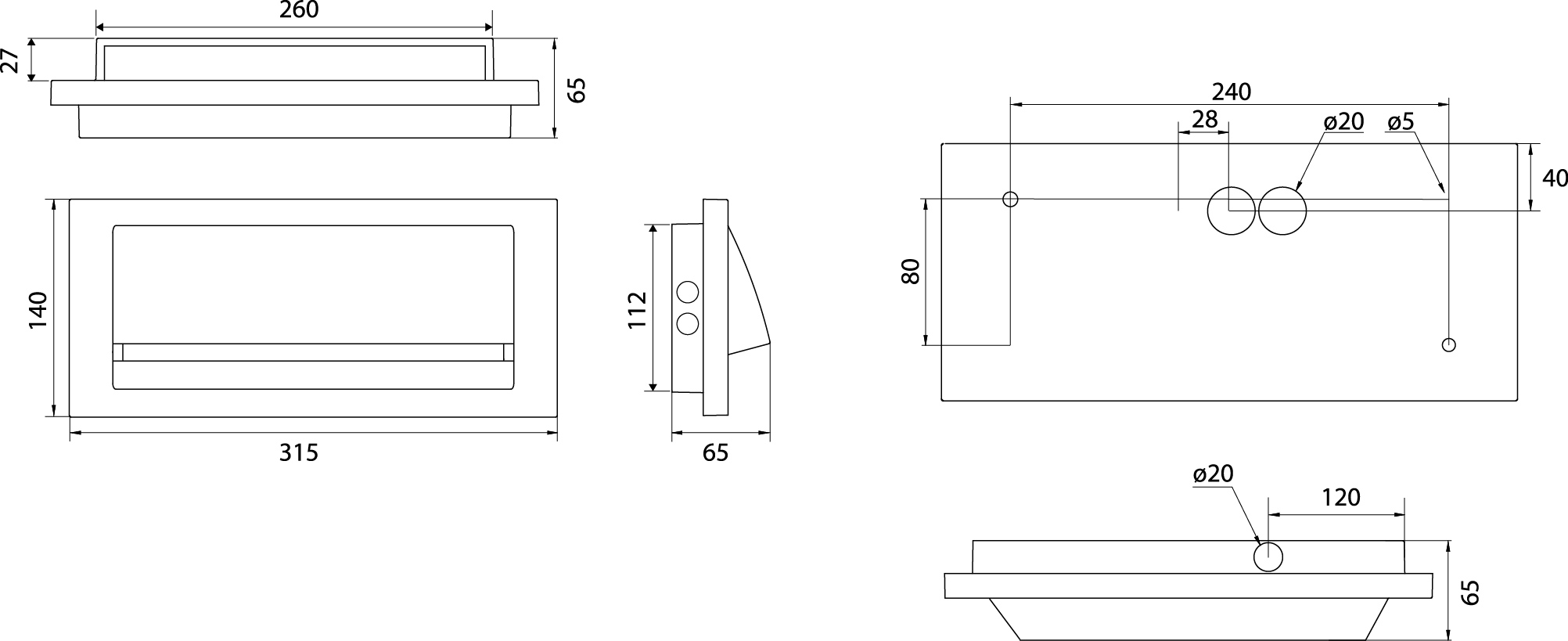

Depth
315 mm
Width
65 mm
Height
140 mm
Weight
2.1
Weight incl. packaging
2.22
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
Connector
Dimming function
No
Luminous flux mains
190 lm
Luminous flux emergency
190 lm
Customs tariff number
94056180
EAN
4260659561260
Luminaire type
Safety luminaire
Mounting
Wall mounting
Pictograph
No
Illuminant
LED
Housing material
Zinc die-cast
Housing color
white
Protection type (IP)
IP65
Impact resistance (IK)
8
Certification
WEEE, CE
Insulation class
1
Supply
Single Battery
Monitoring
Wireless Basic (WB)
Bridging time
1 h
Battery
LiFePO4 3,2 V/3,3 Ah
Operating mode
Standby circuit / permanent circuit
Input voltageAC
230 V
Input frequency
50 / 60 Hz
Input voltage DC
- V
Power max.
5,3 W
Power DS
3,9 W
Power BS
1,5 W
Ambient temperature DS
-25 °C to 40 °C
Ambient temperature BS
-25 °C to 40 °C
Depth
315 mm
Width
65 mm
Height
140 mm
Weight
2.1
Weight incl. packaging
2.22
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
Connector
Dimming function
No
Luminous flux mains
190 lm
Luminous flux emergency
190 lm
Customs tariff number
94056180
EAN
4260659561260

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
