LED ceiling luminaire, ZOLA series, with direct and direct/indirect beam. Housing made from aluminium, white, powder-coated. Parabolic louvre diffuser, matt. Operating unit can be switched or dimmed (DALI dimmer), integrated. UGR < 16 and screen-compliant in accordance with EN 12464-1. Version with CASAMBI Bluetooth control available. DC compatible.
Product data

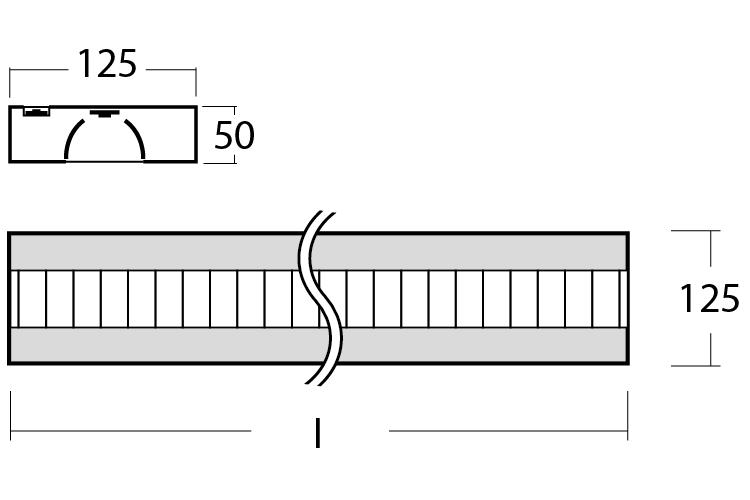

Product dimensions Length
1415 mm
Certification
CE
Product dimensions Width
50 mm
Insulation class
1
Product dimensions Height
125 mm
Protection type (IP)
IP20
Product weight
3.7 kg
Glow wire test
650 °C
Packaging dimensions Length
1550 mm
Connection cross-section
1.5 mm²
Packaging dimensions Width
130 mm
Type of dimming
DALI
Packaging dimensions Height
60 mm
System performance
40 W
Weight incl. packaging
3.9 kg
Input voltage AC
220-240V / 50-60Hz V
Color
white
Starting current
28 A
Housing material
Aluminium
Power factor
0.98 PF
Number of power supply units on LS B10A
14 pcs.
Number of power supply units on LS B16A
23 pcs.
Number of power supply units at LS C10A
23 pcs.
Number of power supply units at LS C16A
38 pcs.
DC suitability
Yes
Electrical design
with internal control gear, Dimmable
Light source
LED
Rated luminous flux
4400 lm
Colour rendering index
> 80 Ra
Colour tolerance
2

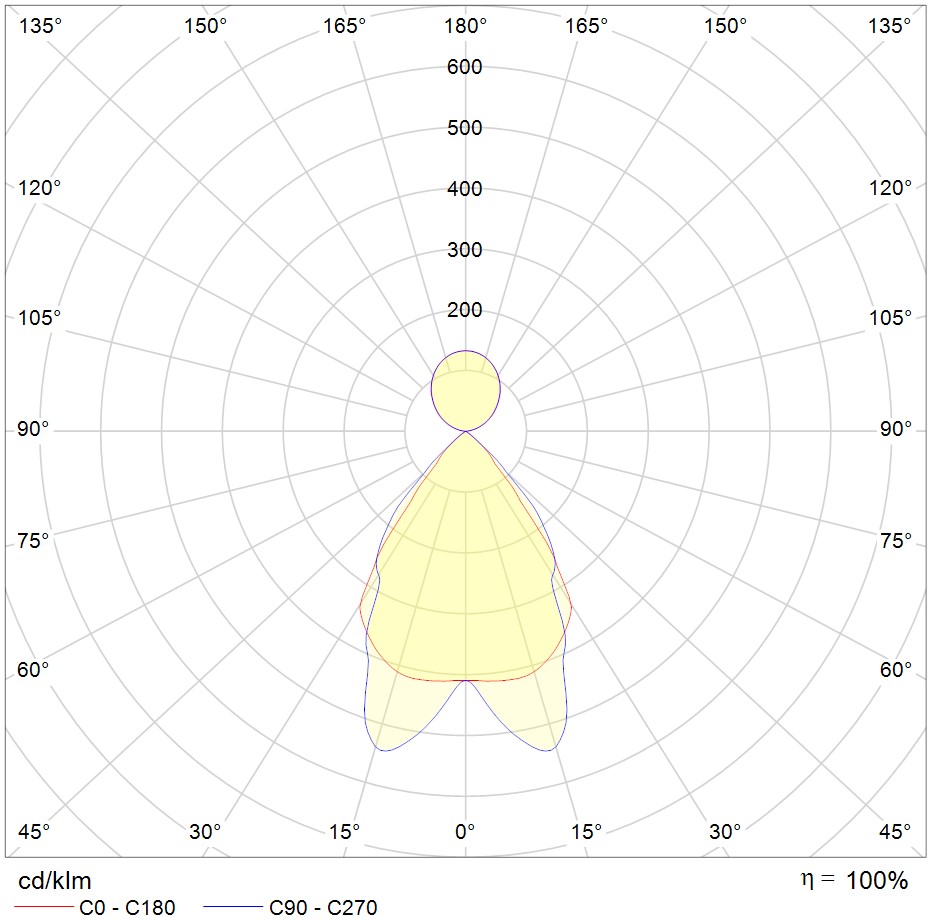

Beam angle
72,8/64,8 °
Color temperature
3000 K
Light color
830
UGR
15.3
Service life
50000 h, L80
Light yield
110 lm/w
Ambient temperature (Min)
0 °C
Ambient temperature (Max)
+25 °C
Mounting
Pendulum ceiling construction
