LED ceiling- and wall-mounted luminaire, RONDO series, with direct/indirect beam, as the basic lighting for rooms in a commercial environment and at home. Housing made from aluminium, white, powder-coated. Diffuser made from plastic (PMMA), opal, UV-stabilised. Operating unit can be switched or dimmed (DALI dimmer), integrated. Version with CASAMBI Bluetooth control available. DC compatible.
Product data
Diameter
600 mm
Insulation class
1
Product dimensions Height
62 mm
Protection type (IP)
IP40
Product weight
5.7 kg
Glow wire test
650 °C
Packaging dimensions Length
610 mm
Connection cross-section
1.5 mm²
Packaging dimensions Width
610 mm
System performance
39 W
Packaging dimensions Height
100 mm
Input voltage AC
220-240V / 50-60Hz V
Weight incl. packaging
5.9 kg
Starting current
33 A
Color
white
Power factor
98 PF
Housing material
Aluminium
Starting time
162 µs
Certification
CE, ENEC
Number of power supply units on LS B10A
13 pcs.
Number of power supply units on LS B16A
21 pcs.
Number of power supply units at LS C10A
22 pcs.
Number of power supply units at LS C16A
36 pcs.
DC suitability
Yes
Electrical design
with internal control gear, Switchable
Light source
LED
Rated luminous flux
5450 lm
Colour rendering index
> 80 Ra
Colour tolerance
3

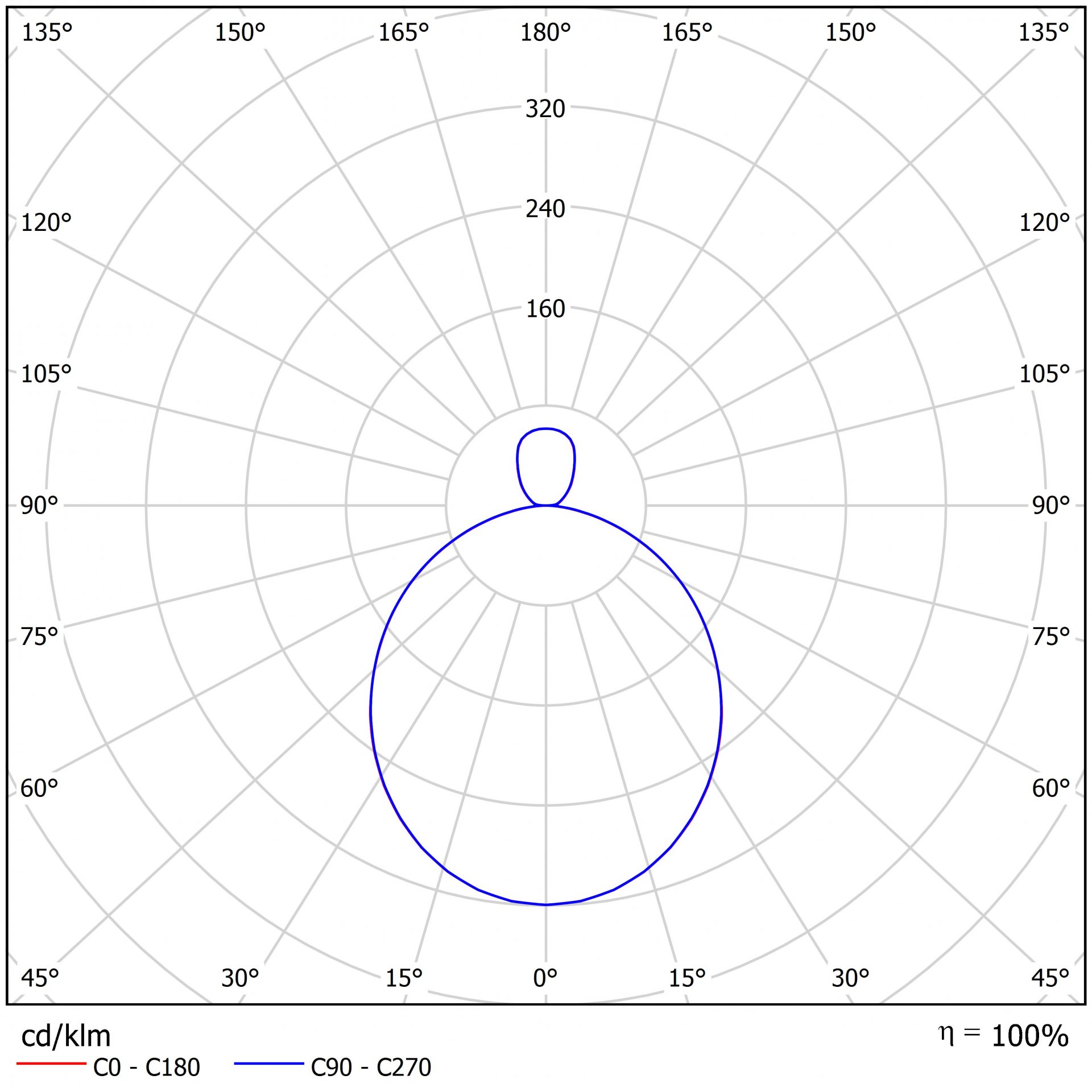

Beam angle
105,6 °
Color temperature
4000 K
Light color
840
UGR
21
Service life
50000 h, L80
Light yield
140 lm/w
Ambient temperature (Min)
0 °C
Ambient temperature (Max)
+25 °C
Mounting
Pendulum ceiling construction
Diameter
600 mm
Product dimensions Height
62 mm
Product weight
5.7 kg
Packaging dimensions Length
610 mm
Packaging dimensions Width
610 mm
Packaging dimensions Height
100 mm
Weight incl. packaging
5.9 kg
Color
white
Housing material
Aluminium
Certification
CE, ENEC
Insulation class
1
Protection type (IP)
IP40
Glow wire test
650 °C
Connection cross-section
1.5 mm²
System performance
39 W
Input voltage AC
220-240V / 50-60Hz V
Starting current
33 A
Power factor
98 PF
Starting time
162 µs
Number of power supply units on LS B10A
13 pcs.
Number of power supply units on LS B16A
21 pcs.
Number of power supply units at LS C10A
22 pcs.
Number of power supply units at LS C16A
36 pcs.
DC suitability
Yes
Electrical design
with internal control gear, Switchable
Light source
LED
Rated luminous flux
5450 lm
Colour rendering index
> 80 Ra
Colour tolerance
3
Beam angle
105,6 °
Color temperature
4000 K
Light color
840
UGR
21
Service life
50000 h, L80
Light yield
140 lm/w
Ambient temperature (Min)
0 °C
Ambient temperature (Max)
+25 °C
Mounting
Pendulum ceiling construction
