LED ceiling- and wall-mounted luminaire, RONDO series, with direct/indirect beam, as the basic lighting for rooms in a commercial environment and at home. Housing made from aluminium, white, powder-coated. Diffuser made from plastic (PMMA), opal, UV-stabilised. Operating unit can be switched or dimmed (DALI dimmer), integrated. Version with CASAMBI® Bluetooth control available. DC compatible.
Product data

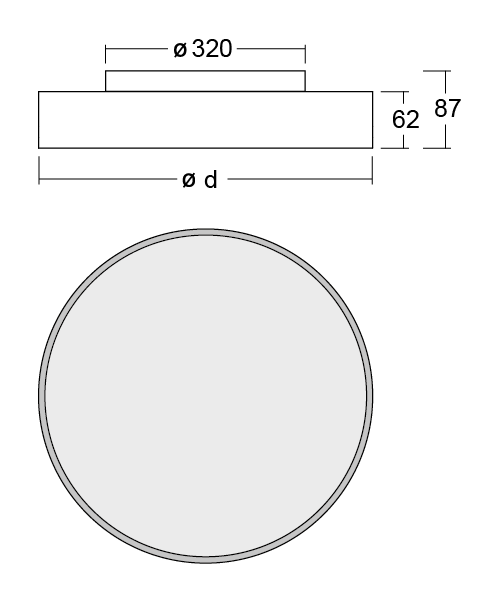

Diameter
400 mm
Insulation class
1
Product dimensions Height
62 mm
Protection type (IP)
IP40
Product weight
3.8 kg
Glow wire test
650 °C
Packaging dimensions Length
505 mm
Connection cross-section
1.5 mm²
Packaging dimensions Width
405 mm
Type of dimming
DALI
Packaging dimensions Height
100 mm
System performance
28 W
Weight incl. packaging
4 kg
Input voltage AC
220-240V / 50-60Hz V
Color
white
Starting current
35 A
Housing material
Aluminium
Power factor
0.98 PF
Certification
CE, ENEC
Starting time
170 µs
Number of power supply units on LS B10A
13 pcs.
Number of power supply units on LS B16A
22 pcs.
Number of power supply units at LS C10A
21 pcs.
Number of power supply units at LS C16A
36 pcs.
DC suitability
Yes
Electrical design
Dimmable, with internal control gear
Light source
LED
Rated luminous flux
3350 lm
Colour rendering index
> 80 Ra
Colour tolerance
3

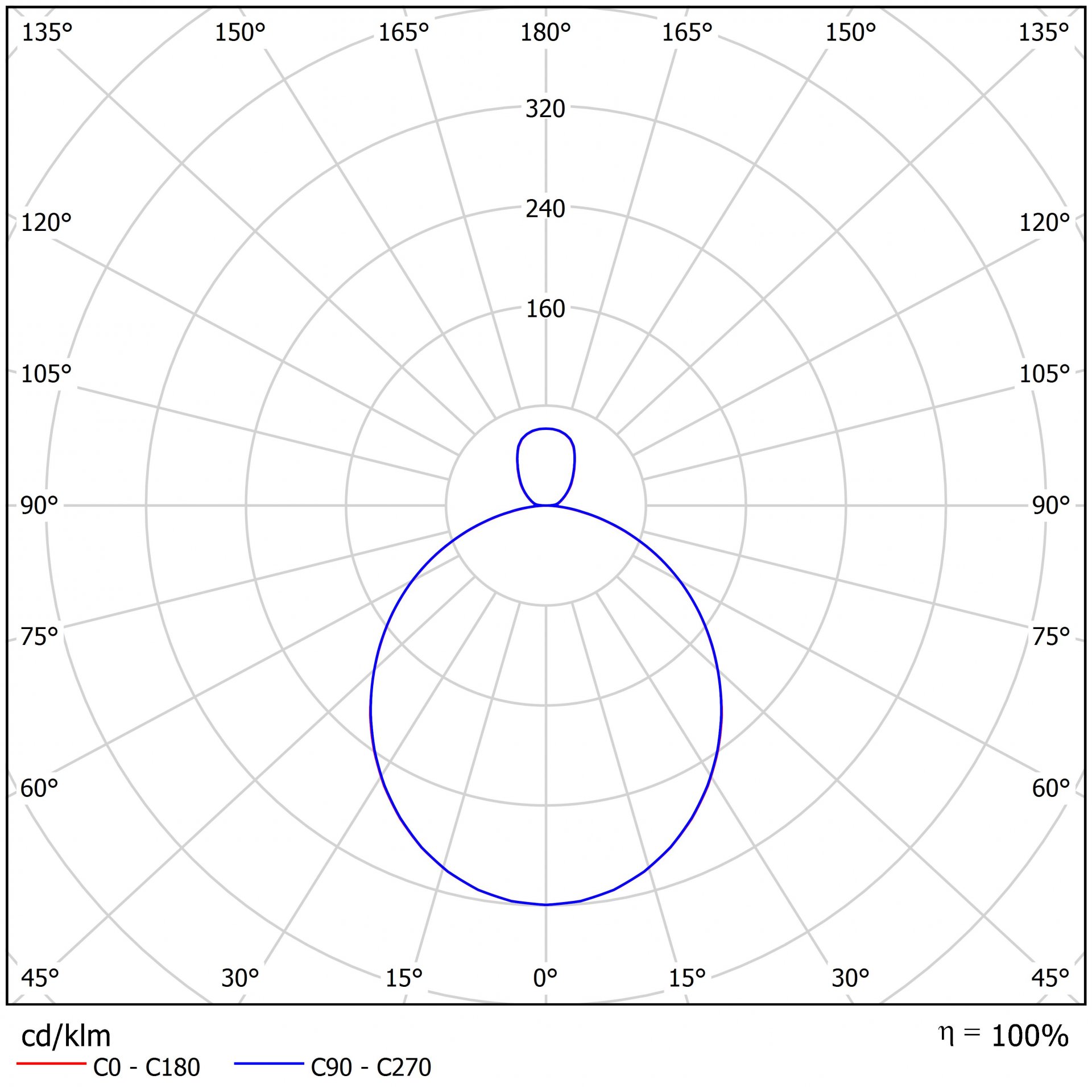

Beam angle
105,6/106 °
Color temperature
3000 K
Light color
830
UGR
23.9
Service life
50000 h, L80
Light yield
120 lm/w
Ambient temperature (Min)
0 °C
Ambient temperature (Max)
+25 °C
Mounting
Recessed mounting
Diameter
400 mm
Product dimensions Height
62 mm
Product weight
3.8 kg
Packaging dimensions Length
505 mm
Packaging dimensions Width
405 mm
Packaging dimensions Height
100 mm
Weight incl. packaging
4 kg
Color
white
Housing material
Aluminium
Certification
CE, ENEC
Insulation class
1
Protection type (IP)
IP40
Glow wire test
650 °C
Connection cross-section
1.5 mm²
Type of dimming
DALI
System performance
28 W
Input voltage AC
220-240V / 50-60Hz V
Starting current
35 A
Power factor
0.98 PF
Starting time
170 µs
Number of power supply units on LS B10A
13 pcs.
Number of power supply units on LS B16A
22 pcs.
Number of power supply units at LS C10A
21 pcs.
Number of power supply units at LS C16A
36 pcs.
DC suitability
Yes
Electrical design
Dimmable, with internal control gear
Light source
LED
Rated luminous flux
3350 lm
Colour rendering index
> 80 Ra
Colour tolerance
3
Beam angle
105,6/106 °
Color temperature
3000 K
Light color
830
UGR
23.9
Service life
50000 h, L80
Light yield
120 lm/w
Ambient temperature (Min)
0 °C
Ambient temperature (Max)
+25 °C
Mounting
Recessed mounting
