LED ceiling- and wall-mounted luminaire, PORIO series, recessed design, as the basic lighting for commercial and residential rooms. Housing made from steel plate, white, powder-coated. Diffuser made from plastic (PMMA), opal, UV-stabilised. Operating unit can be switched or dimmed (DALI dimmer), integrated. Version with CASAMBI Bluetooth control available. DC compatible.
Product data

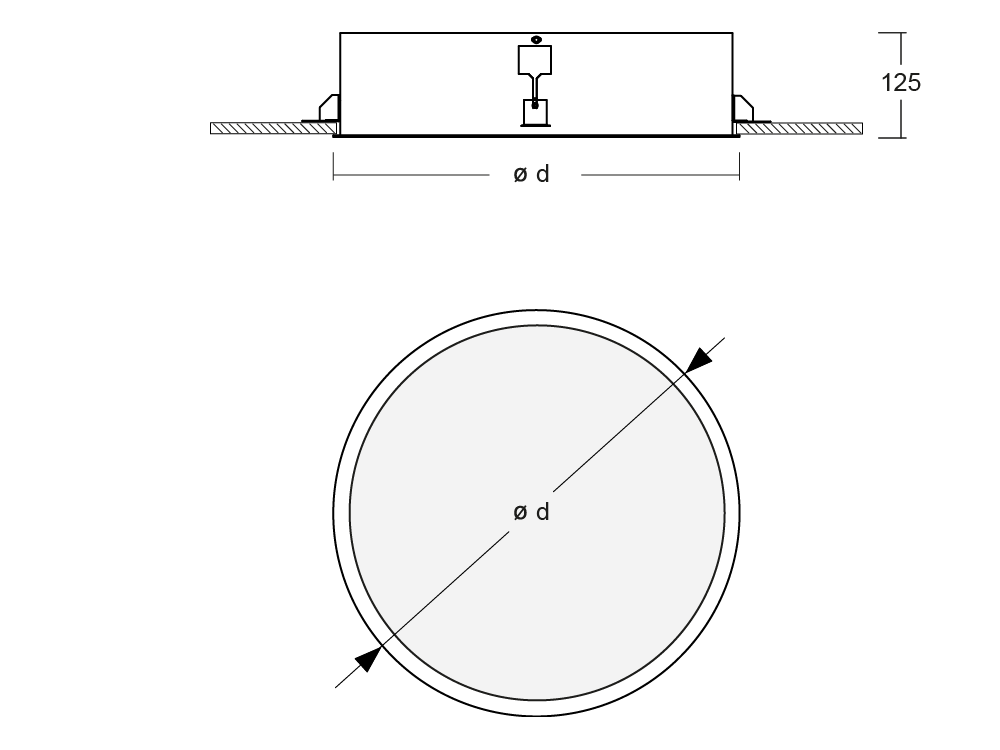

Diameter
464 mm
Insulation class
1
Product dimensions Height
90 mm
Protection type (IP)
IP20
Product weight
4 kg
Glow wire test
650 °C
Packaging dimensions Length
480 mm
Connection cross-section
1.5 mm²
Packaging dimensions Width
480 mm
System performance
33 W
Packaging dimensions Height
140 mm
Input voltage AC
220-240V / 50-60Hz V
Weight incl. packaging
4.2 kg
Power factor
0.95 PF
Color
white
Number of power supply units on LS B10A
16 pcs.
Housing material
Aluminium
Number of power supply units on LS B16A
27 pcs.
Certification
CE
Number of power supply units at LS C10A
27 pcs.
Number of power supply units at LS C16A
45 pcs.
DC suitability
Yes
Electrical design
with internal control gear, Switchable
Light source
LED
Rated luminous flux
2850 lm
Colour rendering index
> 80 Ra
Colour tolerance
3

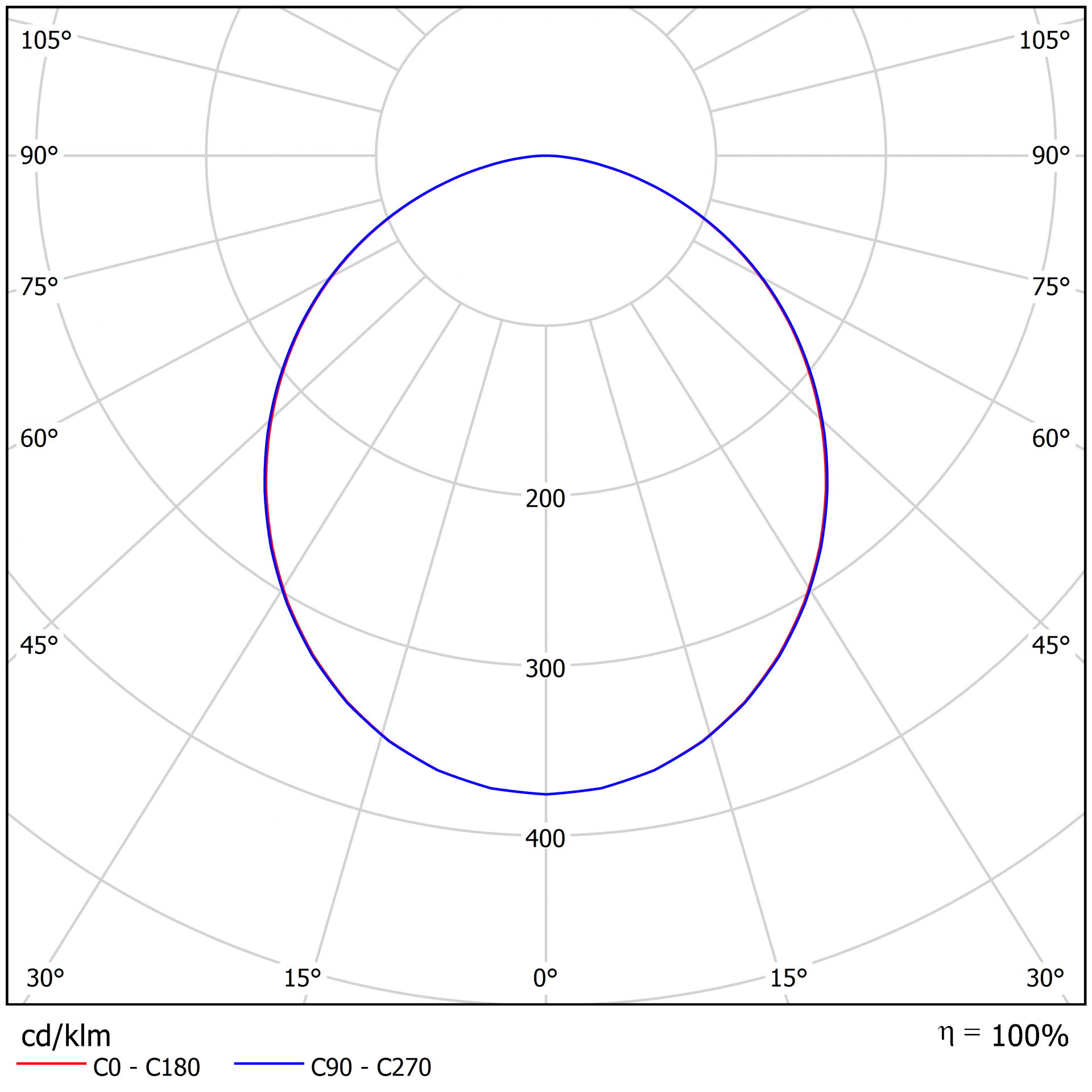

Beam angle
87,6 °
Color temperature
3000 K
Light color
830
UGR
20.4
Service life
50000 h, L80
Light yield
86 lm/w
Ambient temperature (Min)
0 °C
Ambient temperature (Max)
+25 °C
Mounting
Ceiling mounting
