LED ceiling- and wall-mounted luminaire, PORIO series, recessed design, as the basic lighting for commercial and residential rooms. Housing made from steel plate, white, powder-coated. Diffuser made from plastic (PMMA), opal, UV-stabilised. Operating unit can be switched or dimmed (DALI dimmer), integrated. Version with CASAMBI Bluetooth control available. DC compatible.
Product data

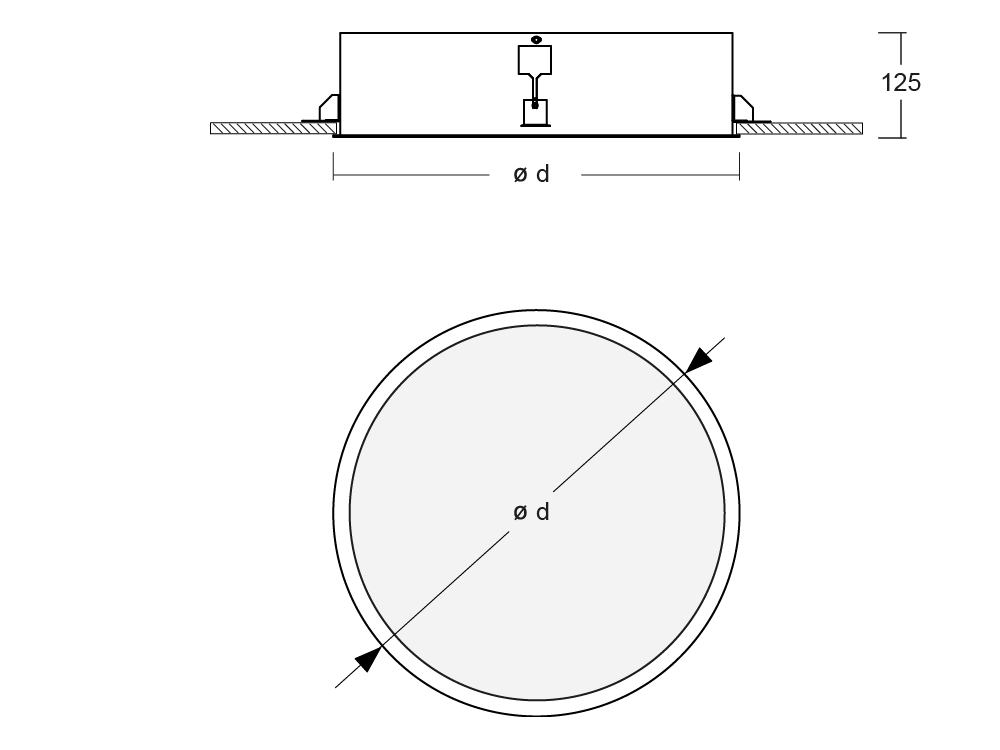

Diameter
464 mm
Insulation class
1
Product dimensions Height
90 mm
Protection type (IP)
IP20
Product weight
4 kg
Glow wire test
650 °C
Packaging dimensions Length
480 mm
Connection cross-section
1.5 mm²
Packaging dimensions Width
480 mm
Type of dimming
DALI
Packaging dimensions Height
140 mm
System performance
33 W
Weight incl. packaging
4.2 kg
Input voltage AC
220-240V / 50-60Hz V
Color
white
Starting current
13.6 A
Housing material
Aluminium
Power factor
0.97 PF
Certification
CE
Starting time
304 µs
Number of power supply units on LS B10A
18 pcs.
Number of power supply units on LS B16A
28 pcs.
Number of power supply units at LS C10A
30 pcs.
Number of power supply units at LS C16A
46 pcs.
DC suitability
Yes
Electrical design
with internal control gear, Dimmable
Light source
LED
Rated luminous flux
3000 lm
Colour rendering index
> 80 Ra
Colour tolerance
3

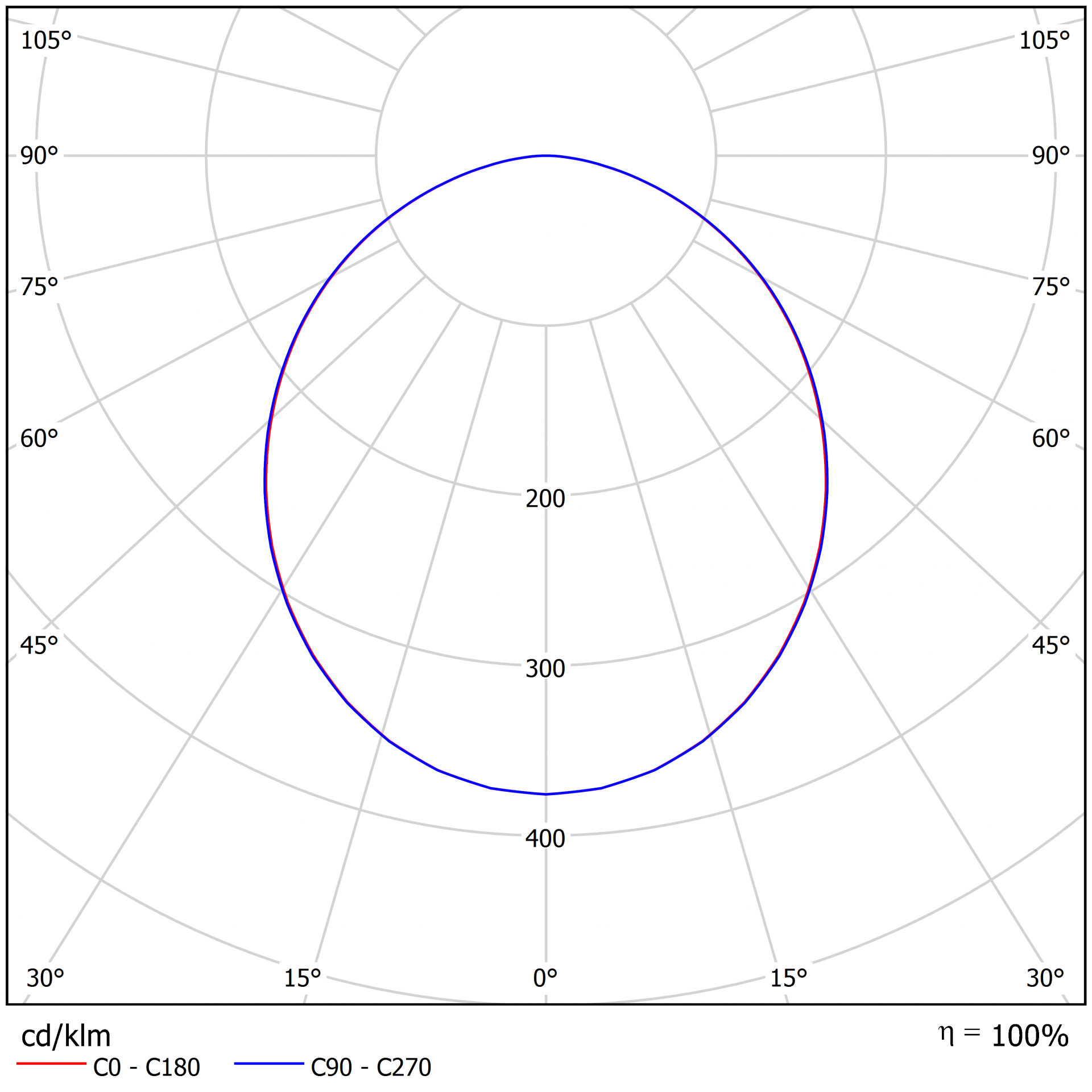

Beam angle
87,6 °
Color temperature
4000 K
Light color
840
UGR
20.6
Service life
50000 h, L80
Light yield
91 lm/w
Ambient temperature (Min)
0 °C
Ambient temperature (Max)
+25 °C
Mounting
Ceiling mounting
Diameter
464 mm
Product dimensions Height
90 mm
Product weight
4 kg
Packaging dimensions Length
480 mm
Packaging dimensions Width
480 mm
Packaging dimensions Height
140 mm
Weight incl. packaging
4.2 kg
Color
white
Housing material
Aluminium
Certification
CE
Insulation class
1
Protection type (IP)
IP20
Glow wire test
650 °C
Connection cross-section
1.5 mm²
Type of dimming
DALI
System performance
33 W
Input voltage AC
220-240V / 50-60Hz V
Starting current
13.6 A
Power factor
0.97 PF
Starting time
304 µs
Number of power supply units on LS B10A
18 pcs.
Number of power supply units on LS B16A
28 pcs.
Number of power supply units at LS C10A
30 pcs.
Number of power supply units at LS C16A
46 pcs.
DC suitability
Yes
Electrical design
with internal control gear, Dimmable
Light source
LED
Rated luminous flux
3000 lm
Colour rendering index
> 80 Ra
Colour tolerance
3
Beam angle
87,6 °
Color temperature
4000 K
Light color
840
UGR
20.6
Service life
50000 h, L80
Light yield
91 lm/w
Ambient temperature (Min)
0 °C
Ambient temperature (Max)
+25 °C
Mounting
Ceiling mounting
