LED ceiling- and wall-mounted luminaire, HUGO series, as the basic lighting for rooms in a commercial environment and at home. Housing made from aluminium, white, powder-coated. Diffuser made from plastic (PMMA), opal, UV-stabilised. Operating unit can be switched or dimmed (DALI dimmer), integrated. Version with CASAMBI Bluetooth control available. DC compatible.
Product data
Diameter
400 mm
Insulation class
1
Product dimensions Height
87 mm
Protection type (IP)
IP40
Product weight
4 kg
Glow wire test
650 °C
Packaging dimensions Length
505 mm
Connection cross-section
1.5 mm²
Packaging dimensions Width
405 mm
System performance
17 W
Packaging dimensions Height
100 mm
Input voltage AC
220-240V / 50-60Hz V
Weight incl. packaging
4.2 kg
Starting current
23 A
Color
white
Power factor
0.97 PF
Housing material
Aluminium
Starting time
140 µs
Certification
CE, ENEC
Number of power supply units on LS B10A
23 pcs.
Number of power supply units on LS B16A
38 pcs.
Number of power supply units at LS C10A
39 pcs.
Number of power supply units at LS C16A
64 pcs.
DC suitability
Yes
Electrical design
with internal control gear, Switchable
Light source
LED
Rated luminous flux
2000 lm
Colour rendering index
> 80 Ra
Colour tolerance
3

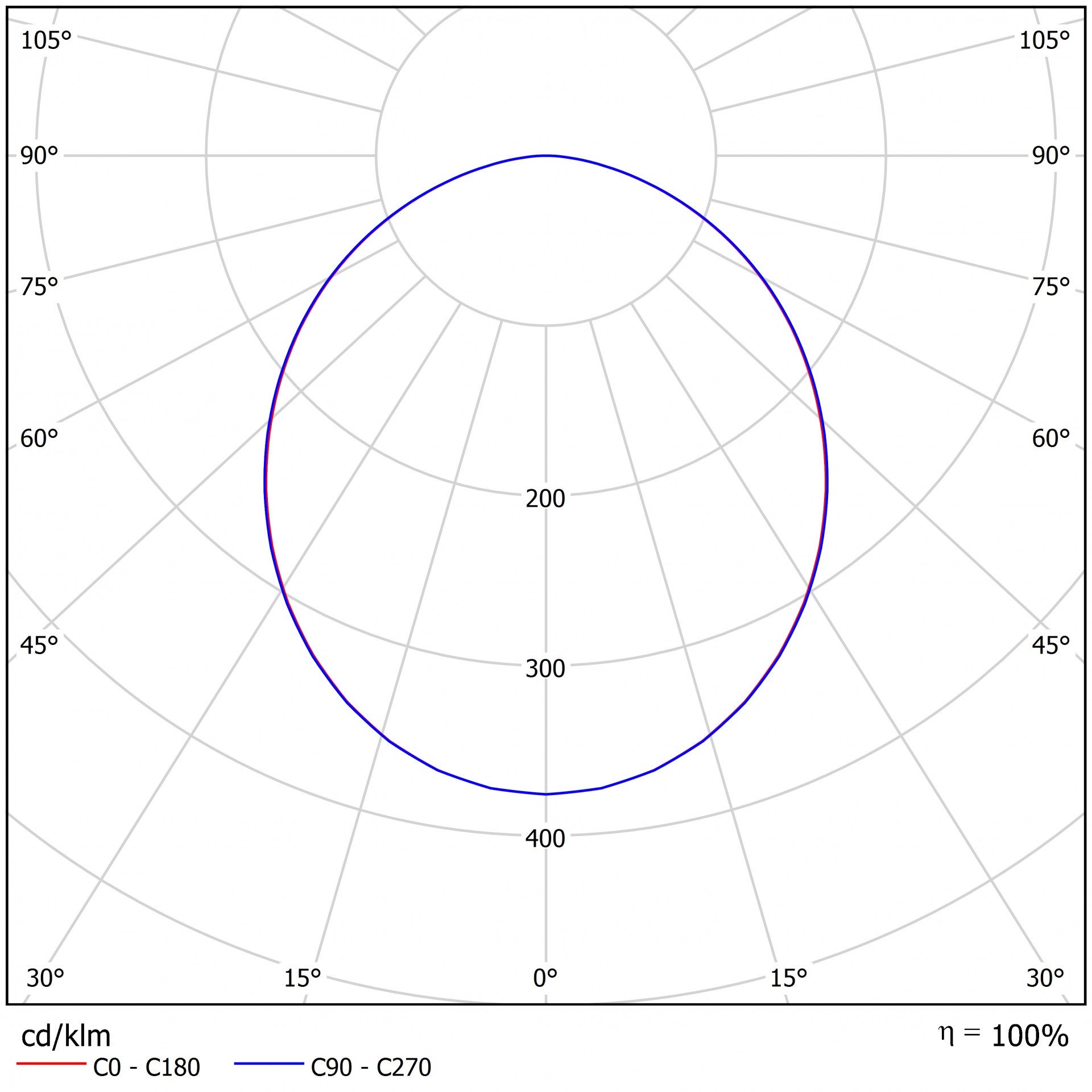

Beam angle
105,6/106 °
Color temperature
4000 K
Light color
840
UGR
22.1
Service life
50000 h, L80
Light yield
118 lm/w
Ambient temperature (Min)
0 °C
Ambient temperature (Max)
+25 °C
Mounting
Pendulum ceiling construction
Diameter
400 mm
Product dimensions Height
87 mm
Product weight
4 kg
Packaging dimensions Length
505 mm
Packaging dimensions Width
405 mm
Packaging dimensions Height
100 mm
Weight incl. packaging
4.2 kg
Color
white
Housing material
Aluminium
Certification
CE, ENEC
Insulation class
1
Protection type (IP)
IP40
Glow wire test
650 °C
Connection cross-section
1.5 mm²
System performance
17 W
Input voltage AC
220-240V / 50-60Hz V
Starting current
23 A
Power factor
0.97 PF
Starting time
140 µs
Number of power supply units on LS B10A
23 pcs.
Number of power supply units on LS B16A
38 pcs.
Number of power supply units at LS C10A
39 pcs.
Number of power supply units at LS C16A
64 pcs.
DC suitability
Yes
Electrical design
with internal control gear, Switchable
Light source
LED
Rated luminous flux
2000 lm
Colour rendering index
> 80 Ra
Colour tolerance
3
Beam angle
105,6/106 °
Color temperature
4000 K
Light color
840
UGR
22.1
Service life
50000 h, L80
Light yield
118 lm/w
Ambient temperature (Min)
0 °C
Ambient temperature (Max)
+25 °C
Mounting
Pendulum ceiling construction
