LED moisture-proof luminaire, LUKA series, IP66. Resistant to ammonia and oil. Housing made from steel plate. Diffuser made from safety glass. Feed-through wiring present. Power supply, can be switched or dimmed (DALI dimmer), integrated. DC compatibility and NANO protection on request. Suitable for use in the food industry. Area of application: car washes, chemical industry, kitchens etc.
Product data

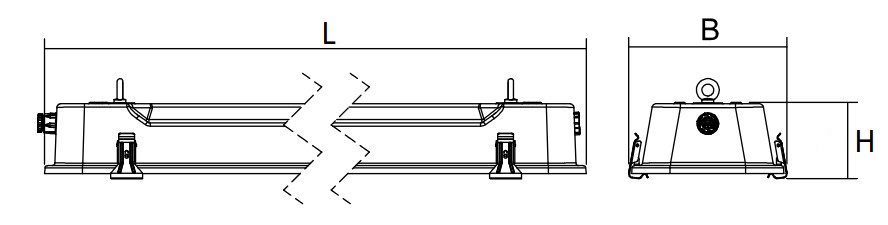

Product dimensions Length
1605 mm
Certification
CE
Product dimensions Width
192 mm
Insulation class
1
Product dimensions Height
90 mm
Protection type (IP)
IP66
Product weight
8.4 kg
System performance
84 W
Packaging dimensions Length
1630 mm
Input voltage AC
220-240V / 50-60Hz V
Packaging dimensions Width
250 mm
Starting current
18 A
Packaging dimensions Height
150 mm
Power factor
0.9 PF
Weight incl. packaging
9.2 kg
Starting time
144 µs
Color
white
Number of power supply units at LS C16A
30 pcs.
Housing material
Steel sheet
DC suitability
Yes
Electrical design
with internal control gear, Switchable
Light source
LED
Rated luminous flux
9900 lm
Colour rendering index
> 80 Ra
Colour tolerance
3
Beam angle

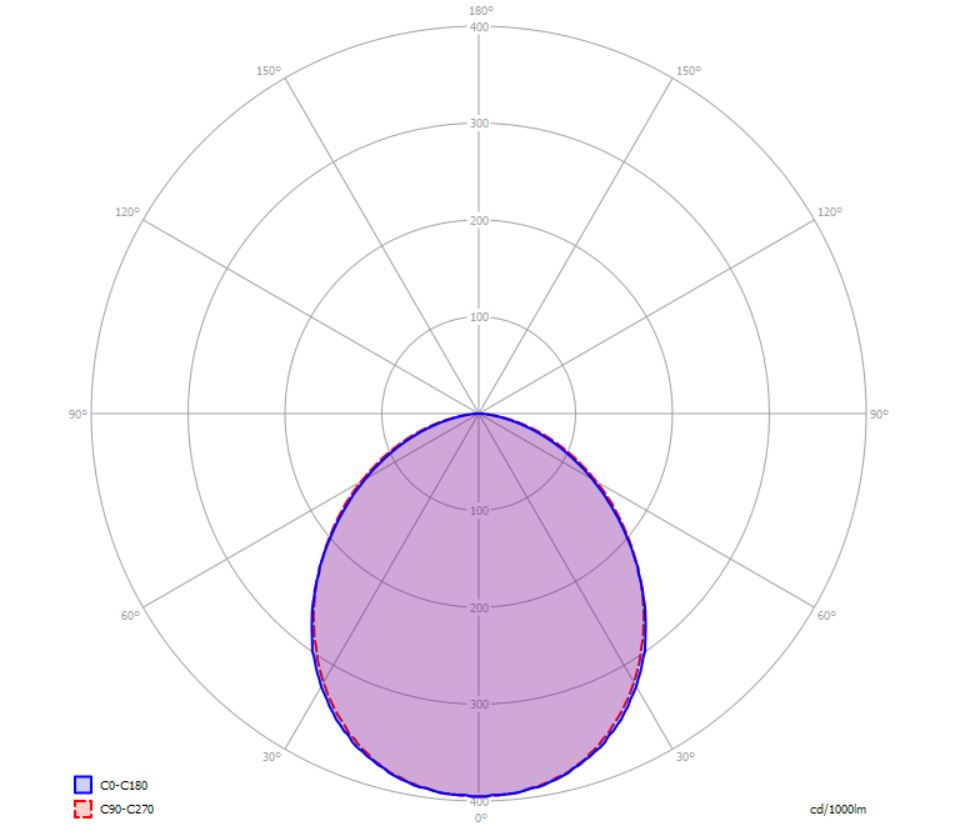

60 °
Color temperature
4000 K
Light color
840
UGR
21.5
Service life
70000 h, L80
Light yield
118 lm/w
Ambient temperature (Min)
-20 °C
Ambient temperature (Max)
+40 °C
Mounting
Recessed mounting
Product dimensions Length
1605 mm
Product dimensions Width
192 mm
Product dimensions Height
90 mm
Product weight
8.4 kg
Packaging dimensions Length
1630 mm
Packaging dimensions Width
250 mm
Packaging dimensions Height
150 mm
Weight incl. packaging
9.2 kg
Color
white
Housing material
Steel sheet
Certification
CE
Insulation class
1
Protection type (IP)
IP66
System performance
84 W
Input voltage AC
220-240V / 50-60Hz V
Starting current
18 A
Power factor
0.9 PF
Starting time
144 µs
Number of power supply units at LS C16A
30 pcs.
DC suitability
Yes
Electrical design
with internal control gear, Switchable
Light source
LED
Rated luminous flux
9900 lm
Colour rendering index
> 80 Ra
Colour tolerance
3
Beam angle
60 °
Color temperature
4000 K
Light color
840
UGR
21.5
Service life
70000 h, L80
Light yield
118 lm/w
Ambient temperature (Min)
-20 °C
Ambient temperature (Max)
+40 °C
Mounting
Recessed mounting
