Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

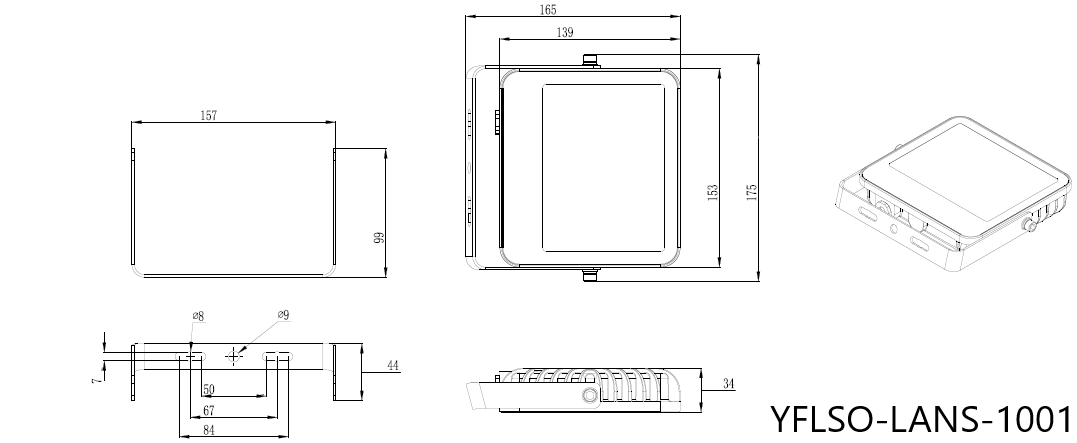

Product data
Product dimensions Length
175 mm
Rated power
10 W
Product dimensions Width
165 mm
Input voltage AC
220-240V / 50-60Hz V
Product dimensions Height
34 mm
Power factor
0.9 PF
Product weight
700 g
DC suitability
Yes
Color
Black
Electrical design
with internal control gear
Housing material
Aluminum die-cast
Light source
LED
Certification
CE, RoHS
Rated luminous flux
1400 lm
Insulation class
1
Colour rendering index
> 70 Ra
Protection type (IP)
IP66

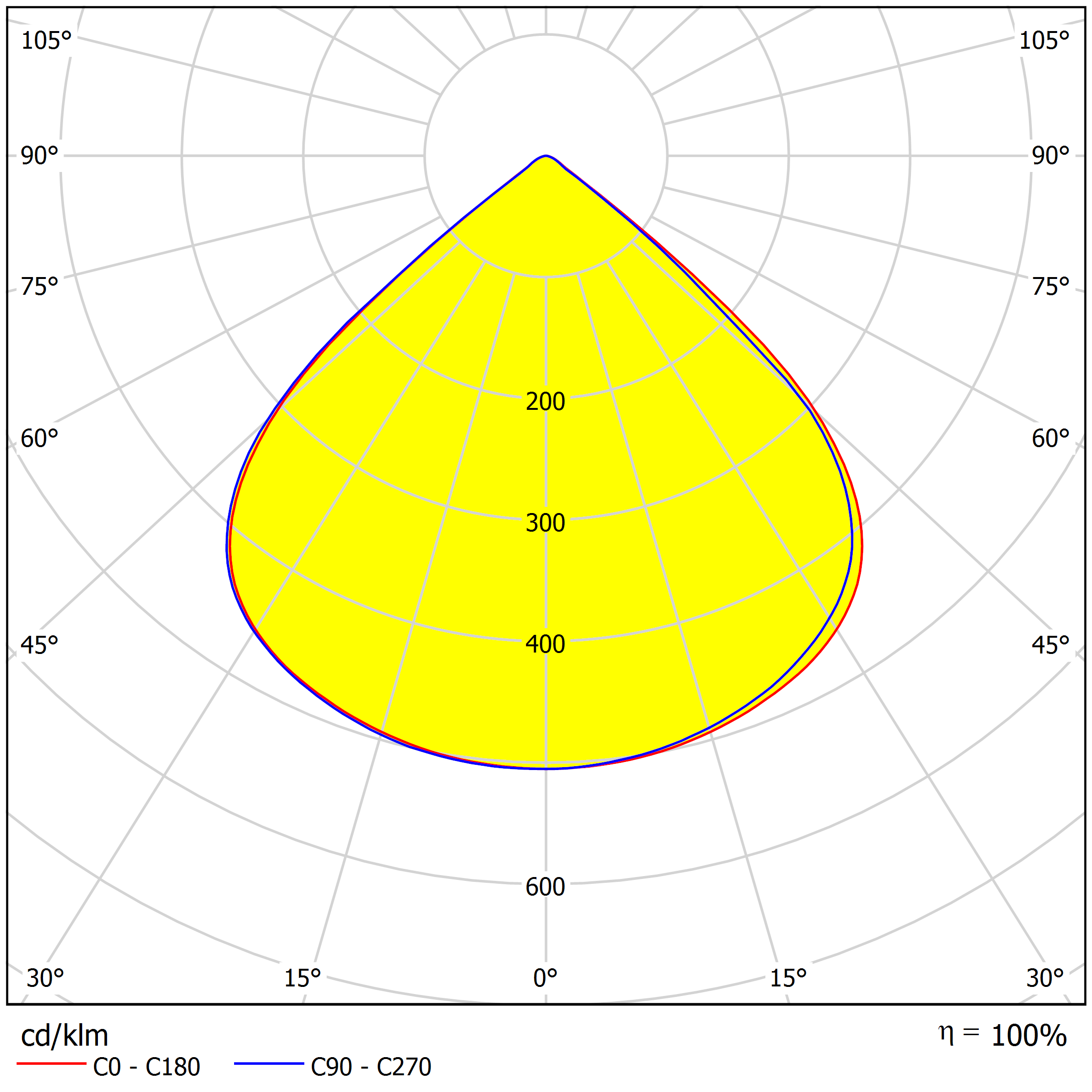

Beam angle
97 °
Shock resistance level (IK)
8
Color temperature
4000 K
Light color
740
Service life
120000 h, L80
Light yield
140 lm/w
Ambient temperature (Min)
-30 °C
Ambient temperature (Max)
50 °C
Input voltage DC
216 V
Mounting
Universal
Product dimensions Length
175 mm
Product dimensions Width
165 mm
Product dimensions Height
34 mm
Product weight
700 g
Color
Black
Housing material
Aluminum die-cast
Certification
CE, RoHS
Insulation class
1
Protection type (IP)
IP66
Shock resistance level (IK)
8
Rated power
10 W
Input voltage AC
220-240V / 50-60Hz V
Power factor
0.9 PF
DC suitability
Yes
Electrical design
with internal control gear
Light source
LED
Rated luminous flux
1400 lm
Colour rendering index
> 70 Ra
Beam angle
97 °
Color temperature
4000 K
Light color
740
Service life
120000 h, L80
Light yield
140 lm/w
Ambient temperature (Min)
-30 °C
Ambient temperature (Max)
50 °C
Input voltage DC
216 V
Mounting
Universal
