LED recessed and surface-mounted downlight, RAVIO series. IP20 (for the surface-mounted version). Housing made from plastic (PC) and passive aluminium cooler. Diffuser made from plastic, opal. Operating unit can be switched or dimmed (DALI dimmer), external (integrated in the surface-mounted version). Version with Casambi Bluetooth control available. DC compatibility on request.
Product data

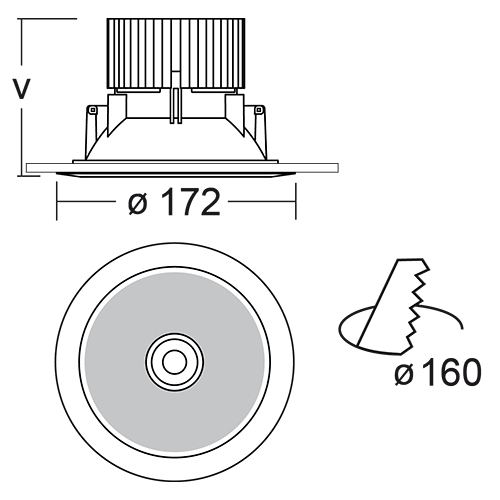

Diameter
172 mm
Certification
CE, ENEC
Product dimensions Height
80 mm
Insulation class
2
Product weight
0.6 kg
Protection type (IP)
IP44
Packaging dimensions Length
190 mm
Glow wire test
650 °C
Packaging dimensions Width
190 mm
Connection cross-section
1.5 mm²
Packaging dimensions Height
145 mm
System performance
41 W
Weight incl. packaging
0.7 kg
Input voltage AC
220-240V / 50-60Hz V
Diameter
160 mm
Power factor
0.95 PF
Color
white
Light source
LED
Housing material
Aluminium
Rated luminous flux
4000 lm
Colour rendering index
> 80 Ra
Colour tolerance
3

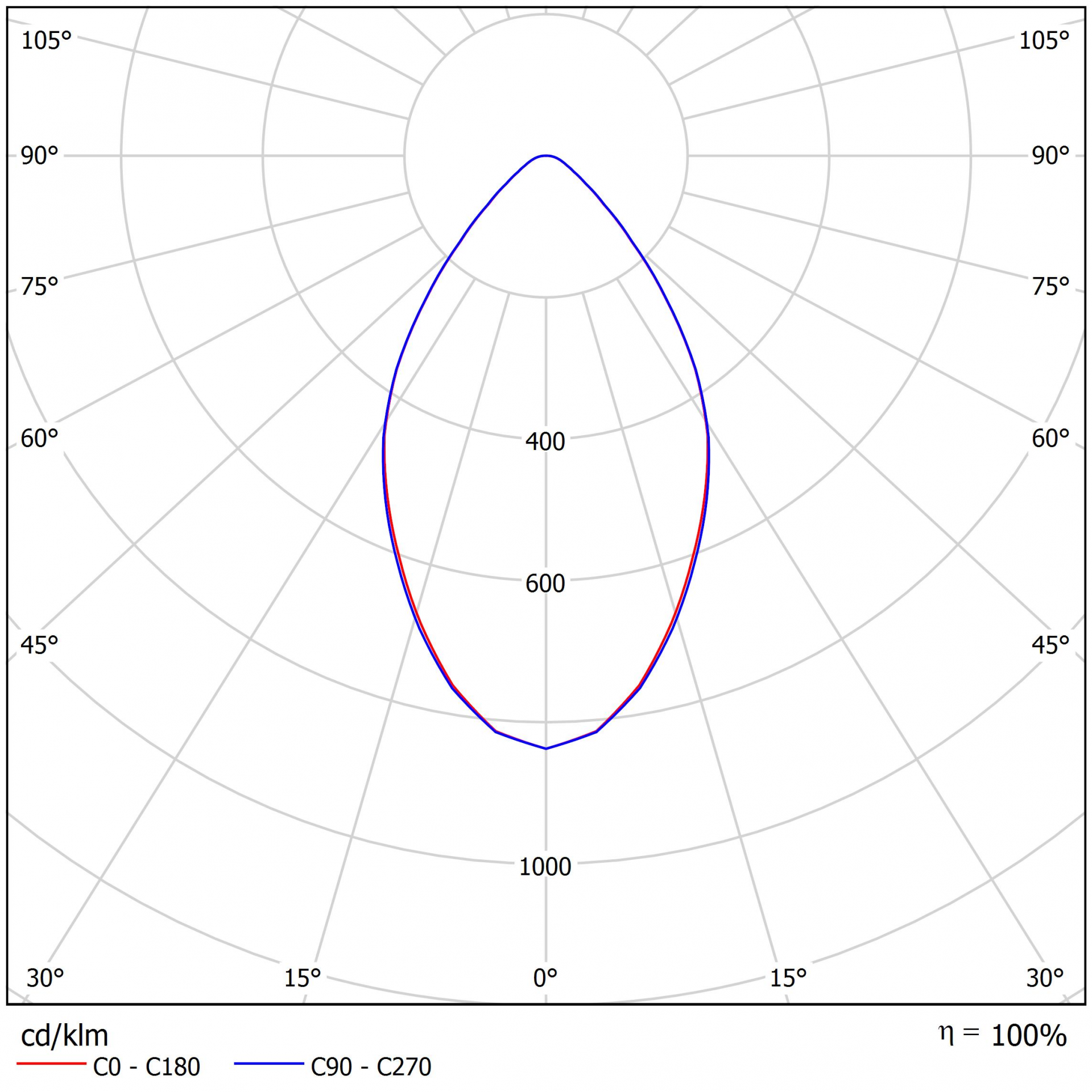

Beam angle
64,2/64,4 °
Color temperature
3000 K
Light color
830
Service life
50000 h, L80
Light yield
98 lm/w
Ambient temperature (Min)
0 °C
Ambient temperature (Max)
+25 °C
Mounting
Ceiling mounting
Number of power supply units on LS B10A
8 pcs.
Number of power supply units on LS B16A
16 pcs.
Number of power supply units at LS C10A
16 pcs.
Number of power supply units at LS C16A
32 pcs.
Electrical design
with internal control gear, Switchable
Diameter
172 mm
Product dimensions Height
80 mm
Product weight
0.6 kg
Packaging dimensions Length
190 mm
Packaging dimensions Width
190 mm
Packaging dimensions Height
145 mm
Weight incl. packaging
0.7 kg
Diameter
160 mm
Color
white
Housing material
Aluminium
Certification
CE, ENEC
Insulation class
2
Protection type (IP)
IP44
Glow wire test
650 °C
Connection cross-section
1.5 mm²
System performance
41 W
Input voltage AC
220-240V / 50-60Hz V
Power factor
0.95 PF
Light source
LED
Rated luminous flux
4000 lm
Colour rendering index
> 80 Ra
Colour tolerance
3
Beam angle
64,2/64,4 °
Color temperature
3000 K
Light color
830
Service life
50000 h, L80
Light yield
98 lm/w
Ambient temperature (Min)
0 °C
Ambient temperature (Max)
+25 °C
Mounting
Ceiling mounting
Number of power supply units on LS B10A
8 pcs.
Number of power supply units on LS B16A
16 pcs.
Number of power supply units at LS C10A
16 pcs.
Number of power supply units at LS C16A
32 pcs.
Electrical design
with internal control gear, Switchable
