Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
LED recessed and surface-mounted downlight, RAVIO series. IP20 (for the surface-mounted version). Housing made from plastic (PC) and passive aluminium cooler. Diffuser made from plastic, opal. Operating unit can be switched or dimmed (DALI dimmer), external (integrated in the surface-mounted version). Version with Casambi Bluetooth control available. DC compatibility on request.
Product data

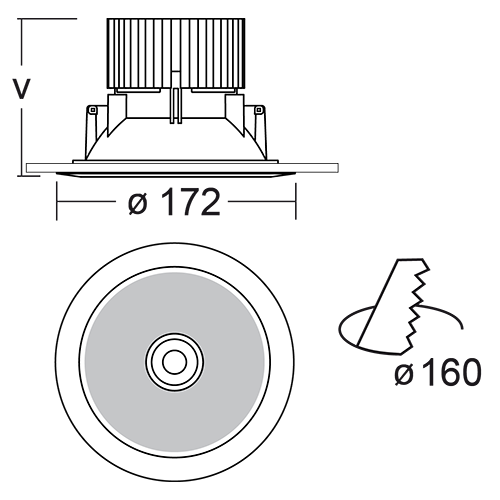

Diameter
172 mm
Certification
CE, ENEC
Product dimensions Height
80 mm
Insulation class
2
Product weight
0.6 kg
Protection type (IP)
IP44
Packaging dimensions Length
190 mm
Glow wire test
650 °C
Packaging dimensions Width
190 mm
Connection cross-section
1.5 mm²
Packaging dimensions Height
145 mm
Type of dimming
DALI
Weight incl. packaging
0.7 kg
System performance
41 W
Diameter
160 mm
Input voltage AC
220-240V / 50-60Hz V
Color
white
Starting current
28 A
Housing material
Aluminium
Power factor
0.98 PF
Starting time
195 µs
Light source
LED
Rated luminous flux
4150 lm
Colour rendering index
> 80 Ra
Colour tolerance
3

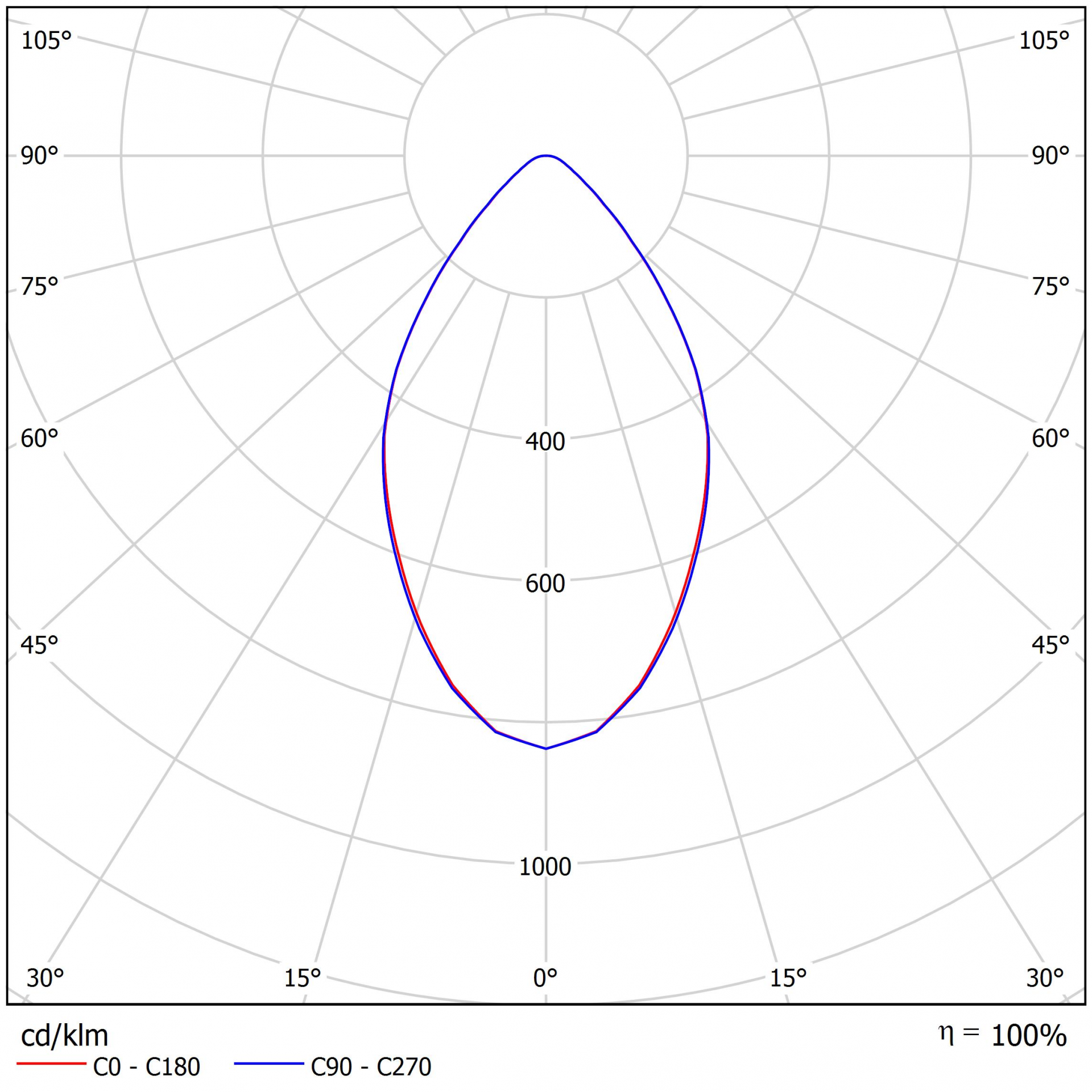

Beam angle
64,2/64,4 °
Color temperature
4000 K
Light color
840
Service life
50000 h, L80
Light yield
101 lm/w
Ambient temperature (Min)
0 °C
Ambient temperature (Max)
+25 °C
Mounting
Ceiling mounting
Number of power supply units on LS B10A
13 pcs.
Number of power supply units on LS B16A
22 pcs.
Number of power supply units at LS C10A
21 pcs.
Number of power supply units at LS C16A
36 pcs.
Electrical design
with internal control gear, Dimmable
