XPIU009ML

Safety luminaire Centralised power supply systems
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Polycarbonate cylinder safety luminaire with explosion protection for gas and dust Ex zones.

Prepared for two cable entries for feed-through wiring. By attaching a pictogram, can also be used as an emergency exit sign luminaire.

By means of mounting adapter for wall/ceiling mounting or suspension by means of eye bolt.

Labelling according to 2014/34/EC (ATEX)

Zone 1 / zone 21 gas and dust

- Ex d IIB T6 Gb / Ex d IIB T6 Gb
- Ex t IIIC T85ºC Db


Manufactured in accordance with
-EN 60079-0:2018, EN 60079-1:2014, EN 60079-31:2014

-Certified by INERIS 20ATEX0005X

Control and monitoring via central power supply system.


Product data

Luminaire type
Safety luminaire
Supply
Centralised power supply systems
Mounting
Universal
Monitoring
Central power supply (ML)
Pictograph
No
Bridging time
CPS
Illuminant
LED
Battery
/
Housing material
Aluminum die-cast, Polycarbonate
Operating mode
Permanent circuit
Housing color
Yellow
Input voltageAC
230 V
Protection type (IP)
IP66
Input frequency
50 / 60 Hz
Impact resistance (IK)
5
Power max.
11 W
Certification
WEEE, CE, Explosion-protected
Power DS
11 W
Insulation class
1
Power BS
1,5 W
Ambient temperature DS
-20 °C to 55 °C
Ambient temperature BS
-20 °C to 55 °C

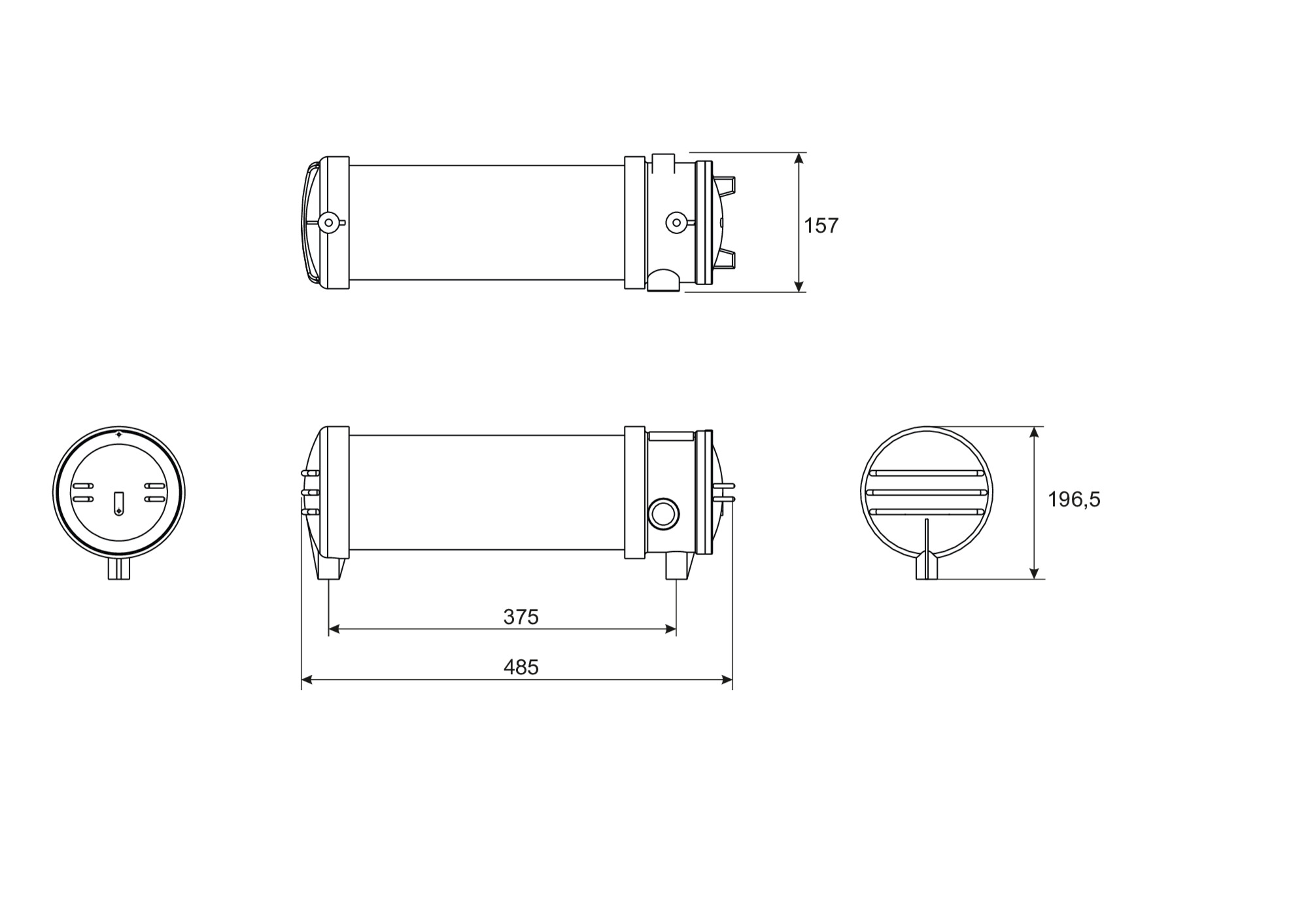

Depth
485 mm
Width
157 mm
Height
197 mm
Weight
4.28
Weight incl. packaging
4.78
Connection cross-section
2.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
No
Dimming function
No

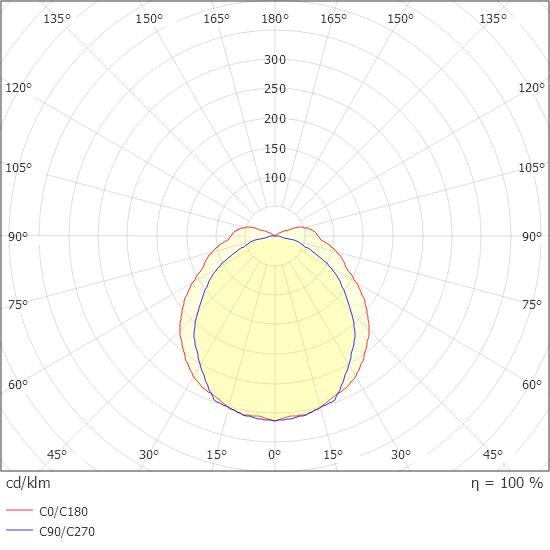

Luminous flux mains
1200 lm
Luminous flux emergency
1200 lm
Customs tariff number
9405114090
EAN
4260682145444
Luminaire type
Safety luminaire
Mounting
Universal
Pictograph
No
Illuminant
LED
Housing material
Aluminum die-cast, Polycarbonate
Housing color
Yellow
Protection type (IP)
IP66
Impact resistance (IK)
5
Certification
WEEE, CE, Explosion-protected
Insulation class
1
Supply
Centralised power supply systems
Monitoring
Central power supply (ML)
Bridging time
CPS
Battery
/
Operating mode
Permanent circuit
Input voltageAC
230 V
Input frequency
50 / 60 Hz
Power max.
11 W
Power DS
11 W
Power BS
1,5 W
Ambient temperature DS
-20 °C to 55 °C
Ambient temperature BS
-20 °C to 55 °C
Depth
485 mm
Width
157 mm
Height
197 mm
Weight
4.28
Weight incl. packaging
4.78
Connection cross-section
2.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
No
Dimming function
No
Luminous flux mains
1200 lm
Luminous flux emergency
1200 lm
Customs tariff number
9405114090
EAN
4260682145444
