WFXW411WL

Exit sign Self-contained
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Modern emergency exit sign wall luminaire in a square format.

For identifying escape and emergency routes. As an option, the luminaire can be used to identify other adjoining rooms.

The high level of protection can be ensured thanks to the easy-to-mount bayonet catch, making the luminaire suitable for varied use.

Wireless central control and monitoring for large installations of up to 50,000 luminaires with Wireless Professional. The requested pictogram (arrow to the right, left, up or down) is supplied as standard.


Product data

Luminaire type
Exit sign
Insulation class
2
Mounting
Wall mounting
Supply
Self-contained
Recognition distance
30 m
Monitoring
Wireless Professional (WL)
Pictograph
acc. to Specification
Bridging time
1 h
Illuminant
LED
Battery
LiFePO4 6,4 V/1,2 Ah
Housing material
Polycarbonate
Operating mode
Non-maintained / maintained
Housing color
White
Input voltageAC
230 V
Protection type (IP)
IP65
Input frequency
50 Hz
Impact resistance (IK)
4
Power max.
7,5 W
Certification
WEEE, CE, 5 years warranty
Power maintained
5,7 W
Power non-maintained
0,8 W
Ambient temperature maintained mode
0 °C to 35 °C
Ambient temperature non-maintained mode
0 °C to 35 °C

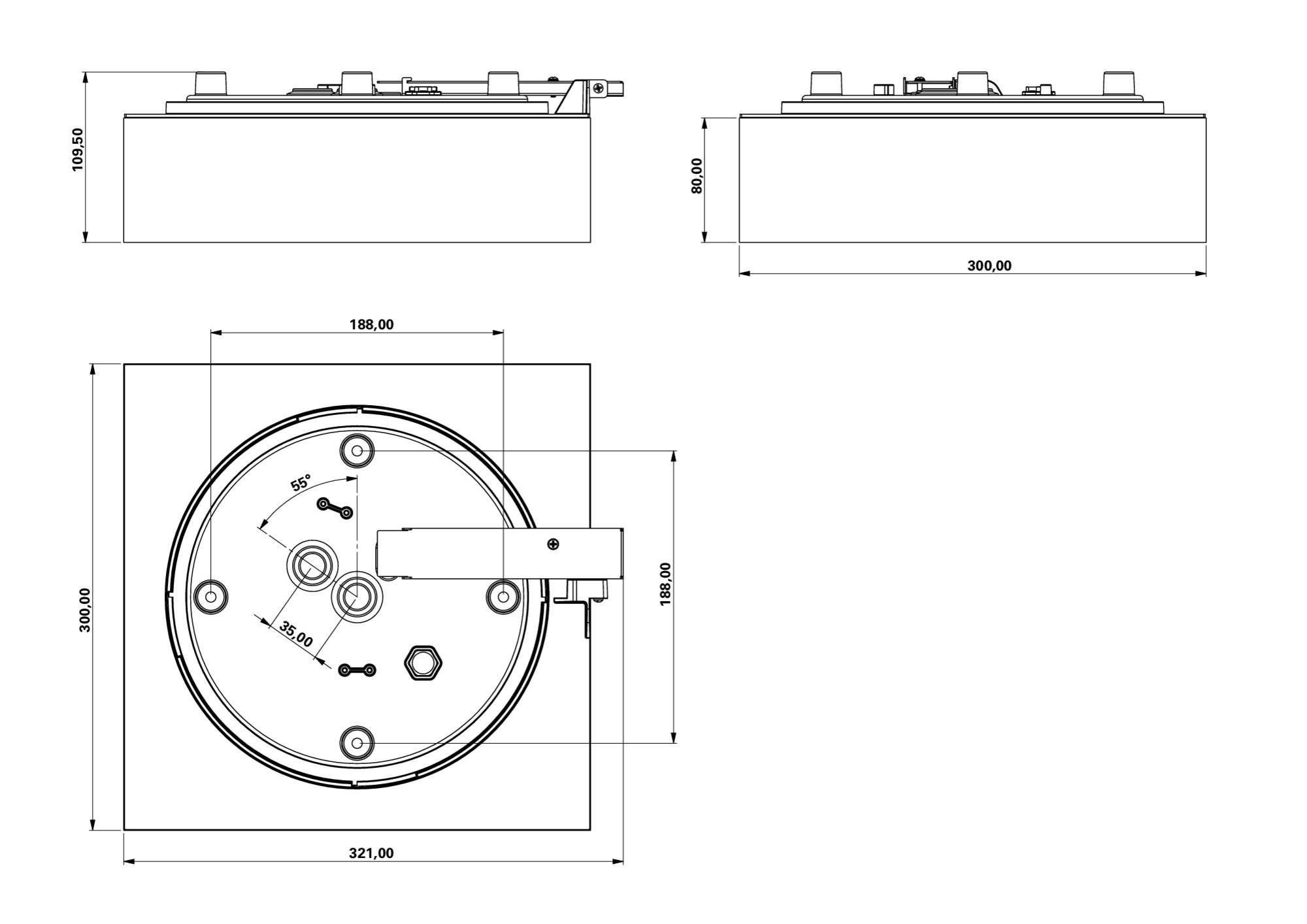

Depth
300 mm
Width
300 mm
Height
110 mm
Weight
1.52
Weight incl. packaging
1.77
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
Yes
Battery connection
Connector
Dimming function
Yes
Luminous flux mains
250 lm
Luminous flux emergency
520 lm
Customs tariff number
94056180
EAN
4260682158437
Luminaire type
Exit sign
Mounting
Wall mounting
Recognition distance
30 m
Pictograph
acc. to Specification
Illuminant
LED
Housing material
Polycarbonate
Housing color
White
Protection type (IP)
IP65
Impact resistance (IK)
4
Certification
WEEE, CE, 5 years warranty
Insulation class
2
Supply
Self-contained
Monitoring
Wireless Professional (WL)
Bridging time
1 h
Battery
LiFePO4 6,4 V/1,2 Ah
Operating mode
Non-maintained / maintained
Input voltageAC
230 V
Input frequency
50 Hz
Power max.
7,5 W
Power maintained
5,7 W
Power non-maintained
0,8 W
Ambient temperature maintained mode
0 °C to 35 °C
Ambient temperature non-maintained mode
0 °C to 35 °C
Depth
300 mm
Width
300 mm
Height
110 mm
Weight
1.52
Weight incl. packaging
1.77
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
Yes
Battery connection
Connector
Dimming function
Yes
Luminous flux mains
250 lm
Luminous flux emergency
520 lm
Customs tariff number
94056180
EAN
4260682158437

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
