WEF428WL-AZ

Emergency light Self-contained
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

High-grade zinc die-cast safety luminaire for recessed mounting in the wall. This is intended for mounting in conventional double switch boxes where the mounting frame can be aligned to the box. The zinc die-cast ornamental cover is locked using a fastener that cannot be seen from the outside.

The radiating characteristics run parallel to the wall to help perfectly illuminate escape and emergency routes.

Wireless central control and monitoring for large installations of up to 50,000 luminaires with Wireless Professional.


Product data

Luminaire type
Emergency light
Supply
Self-contained
Mounting
Recessed wall mounting
Monitoring
Wireless Professional (WL)
Pictograph
No
Bridging time
8 h
Illuminant
LED
Battery
LiFePO4 6,4 V/1,2 Ah
Housing material
Zinc die-cast
Operating mode
Non-maintained / maintained
Housing color
Anthracite
Input voltageAC
230 V
Protection type (IP)
IP20
Input frequency
50 Hz
Impact resistance (IK)
7
Power max.
5,1 W
Certification
WEEE, CE, 5 years warranty
Power maintained
3,9 W
Insulation class
2
Power non-maintained
0,8 W
Ambient temperature maintained mode
-5 °C to 40 °C
Ambient temperature non-maintained mode
-5 °C to 40 °C

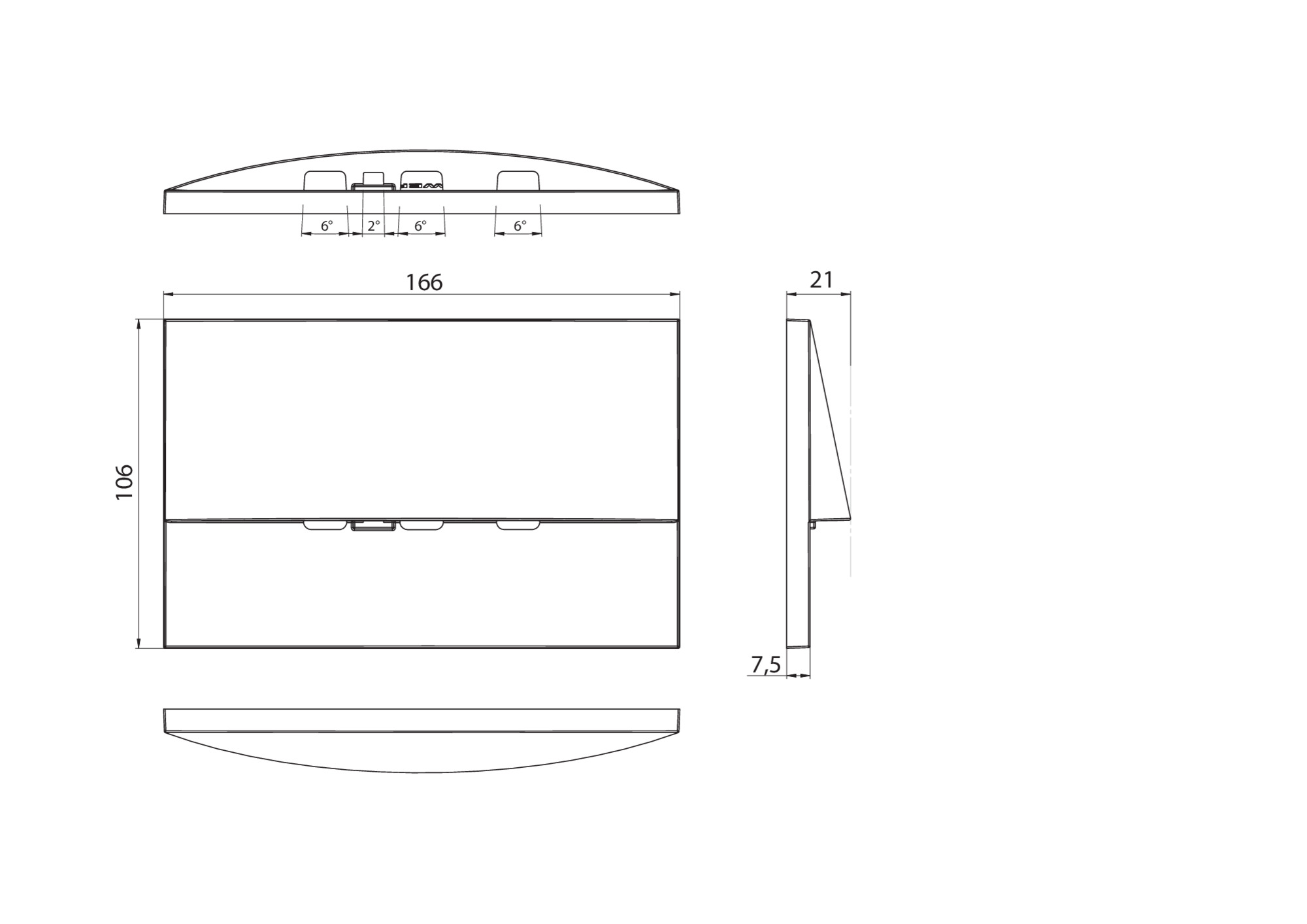

Depth
20 mm
Width
161 mm
Height
107 mm
Installation length
155 mm
Installation width
82 mm
Installation height
70 mm
Weight
0.63
Weight incl. packaging
0.66
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
Yes
Battery connection
Connector
Dimming function
Yes
Luminous flux mains
470 lm
Luminous flux emergency
75 lm
Customs tariff number
94056180
EAN
4260766557323
Luminaire type
Emergency light
Mounting
Recessed wall mounting
Pictograph
No
Illuminant
LED
Housing material
Zinc die-cast
Housing color
Anthracite
Protection type (IP)
IP20
Impact resistance (IK)
7
Certification
WEEE, CE, 5 years warranty
Insulation class
2
Supply
Self-contained
Monitoring
Wireless Professional (WL)
Bridging time
8 h
Battery
LiFePO4 6,4 V/1,2 Ah
Operating mode
Non-maintained / maintained
Input voltageAC
230 V
Input frequency
50 Hz
Power max.
5,1 W
Power maintained
3,9 W
Power non-maintained
0,8 W
Ambient temperature maintained mode
-5 °C to 40 °C
Ambient temperature non-maintained mode
-5 °C to 40 °C
Depth
20 mm
Width
161 mm
Height
107 mm
Installation length
155 mm
Installation width
82 mm
Installation height
70 mm
Weight
0.63
Weight incl. packaging
0.66
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
Yes
Battery connection
Connector
Dimming function
Yes
Luminous flux mains
470 lm
Luminous flux emergency
75 lm
Customs tariff number
94056180
EAN
4260766557323

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
