WAF428WL-AZ

Safety luminaire Single Battery
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

High-grade zinc die-cast safety luminaire for surface mounting on the wall.

The radiating characteristics run parallel to the wall to help perfectly illuminate escape and emergency routes.

Wireless central control and monitoring for large installations of up to 50,000 luminaires with Wireless Professional.


Product data

Luminaire type
Safety luminaire
Supply
Single Battery
Mounting
Wall mounting
Monitoring
Wireless Professional (WL)
Pictograph
No
Bridging time
8 h
Illuminant
LED
Battery
LiFePO4 6,4 V/1,2 Ah
Housing material
Zinc die-cast
Operating mode
Standby circuit / permanent circuit
Housing color
Anthracite
Input voltageAC
230 V
Protection type (IP)
IP20
Input frequency
50 Hz
Impact resistance (IK)
4
Power max.
5,1 W
Certification
WEEE, CE
Power DS
3,9 W
Insulation class
2
Power BS
0,8 W
Ambient temperature DS
-5 °C - 35 °C
Ambient temperature BS
-5 °C - 40 °C

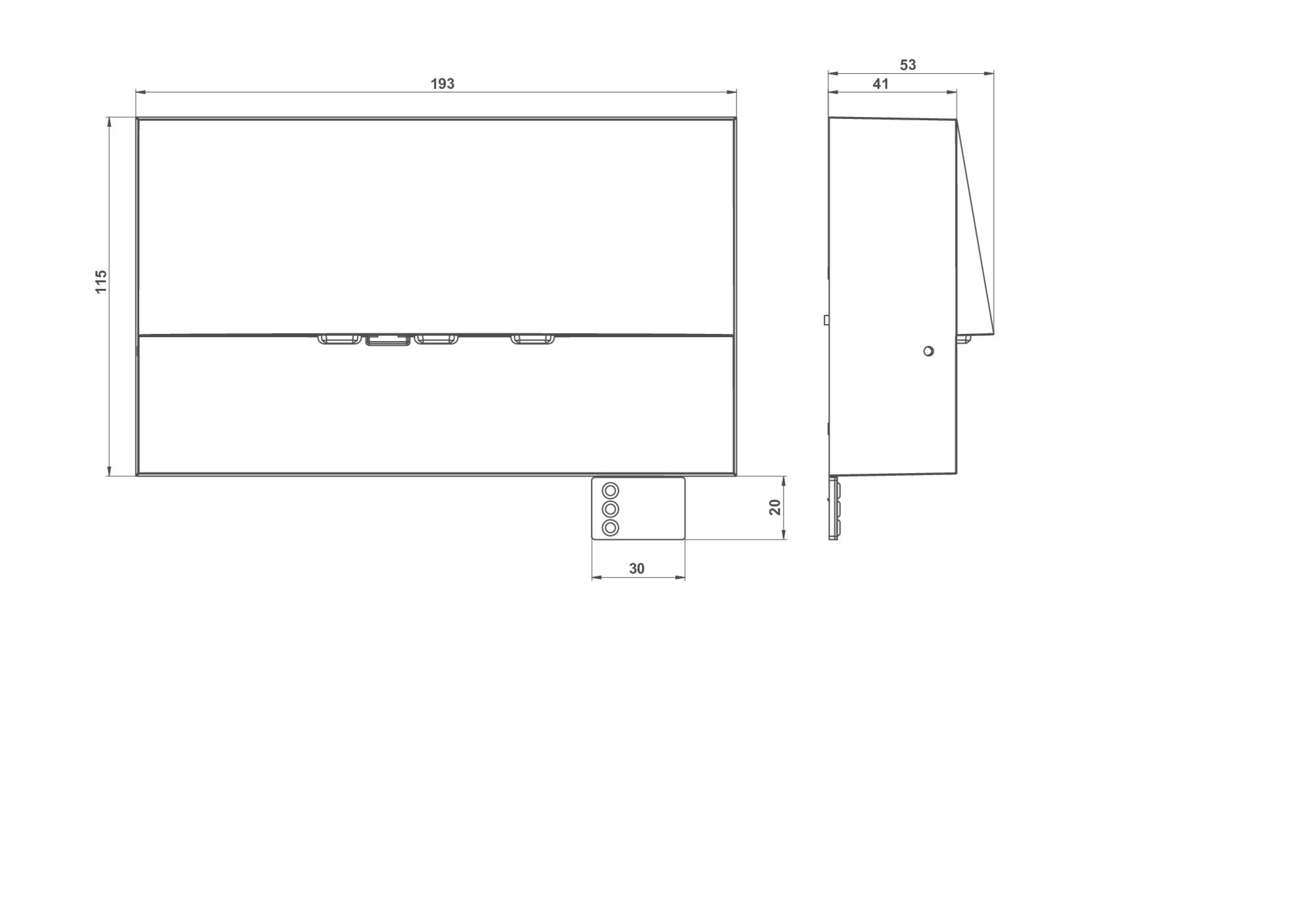

Depth
53 mm
Width
193 mm
Height
115 mm
Weight
0.22
Weight incl. packaging
0.25
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
Yes
Battery connection
Connector
Dimming function
Yes
Luminous flux mains
470 lm
Luminous flux emergency
75 lm
Customs tariff number
94056180
EAN
4260766551956
Luminaire type
Safety luminaire
Mounting
Wall mounting
Pictograph
No
Illuminant
LED
Housing material
Zinc die-cast
Housing color
Anthracite
Protection type (IP)
IP20
Impact resistance (IK)
4
Certification
WEEE, CE
Insulation class
2
Supply
Single Battery
Monitoring
Wireless Professional (WL)
Bridging time
8 h
Battery
LiFePO4 6,4 V/1,2 Ah
Operating mode
Standby circuit / permanent circuit
Input voltageAC
230 V
Input frequency
50 Hz
Power max.
5,1 W
Power DS
3,9 W
Power BS
0,8 W
Ambient temperature DS
-5 °C - 35 °C
Ambient temperature BS
-5 °C - 40 °C
Depth
53 mm
Width
193 mm
Height
115 mm
Weight
0.22
Weight incl. packaging
0.25
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
Yes
Battery connection
Connector
Dimming function
Yes
Luminous flux mains
470 lm
Luminous flux emergency
75 lm
Customs tariff number
94056180
EAN
4260766551956

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
