WAF421SC-E

Emergency light Self-contained
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

High-grade zinc die-cast safety luminaire for surface mounting on the wall.

The radiating characteristics run parallel to the wall to help perfectly illuminate escape and emergency routes.

Automatic monitoring of safety luminaire with SelfControl.


Product data

Luminaire type
Emergency light
Supply
Self-contained
Mounting
Wall mounting
Monitoring
SelfControl (SC)
Pictograph
No
Bridging time
1 h
Illuminant
LED
Battery
LiFePO4 6,4 V/1,2 Ah
Housing material
Zinc die-cast
Operating mode
Non-maintained / maintained
Housing color
Stainless steel
Input voltageAC
180 V - 230 V
Protection type (IP)
IP20
Input frequency
50 Hz
Impact resistance (IK)
4
Power max.
4,2 W
Certification
WEEE, CE, 5 years warranty
Power maintained
3,3 W
Insulation class
2
Power non-maintained
0,9 W
Ambient temperature maintained mode
-5 °C to 35 °C
Ambient temperature non-maintained mode
-5 °C to 40 °C

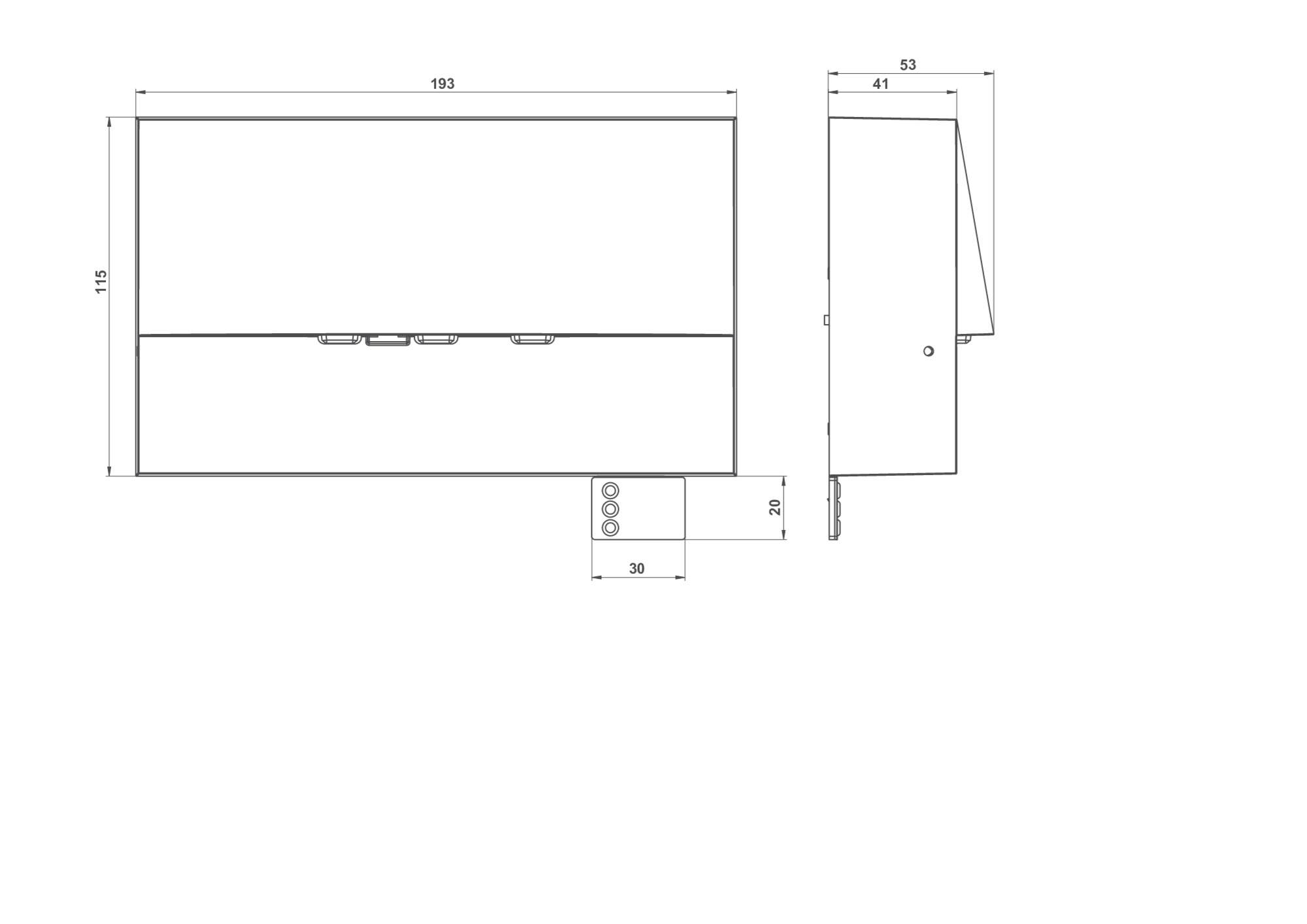

Depth
53 mm
Width
193 mm
Height
115 mm
Weight
0.22
Weight incl. packaging
0.25
Connection cross-section
2,5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
Connector
Dimming function
No
Luminous flux mains
210 lm
Luminous flux emergency
210 lm
Customs tariff number
94056180
EAN
4260766556654
Luminaire type
Emergency light
Mounting
Wall mounting
Pictograph
No
Illuminant
LED
Housing material
Zinc die-cast
Housing color
Stainless steel
Protection type (IP)
IP20
Impact resistance (IK)
4
Certification
WEEE, CE, 5 years warranty
Insulation class
2
Supply
Self-contained
Monitoring
SelfControl (SC)
Bridging time
1 h
Battery
LiFePO4 6,4 V/1,2 Ah
Operating mode
Non-maintained / maintained
Input voltageAC
180 V - 230 V
Input frequency
50 Hz
Power max.
4,2 W
Power maintained
3,3 W
Power non-maintained
0,9 W
Ambient temperature maintained mode
-5 °C to 35 °C
Ambient temperature non-maintained mode
-5 °C to 40 °C
Depth
53 mm
Width
193 mm
Height
115 mm
Weight
0.22
Weight incl. packaging
0.25
Connection cross-section
2,5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
Connector
Dimming function
No
Luminous flux mains
210 lm
Luminous flux emergency
210 lm
Customs tariff number
94056180
EAN
4260766556654

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
