WAF029ML-AZ

Emergency light Centralised power supply systems
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

High-grade zinc die-cast safety luminaire for surface mounting on the wall.

The radiating characteristics run parallel to the wall to help perfectly illuminate escape and emergency routes.

Control and monitoring via central power supply system.


Product data

Luminaire type
Emergency light
Supply
Centralised power supply systems
Mounting
Wall mounting
Monitoring
Central power supply (ML)
Pictograph
No
Bridging time
CPS
Illuminant
LED
Battery
/
Housing material
Zinc die-cast
Operating mode
single luminaire switching
Housing color
Anthracite
Input voltageAC
230 V
Protection type (IP)
IP20
Input frequency
50 / 60 Hz
Impact resistance (IK)
4
Input voltage DC
216 V
Certification
WEEE, CE
Power max.
4,5 W
Insulation class
2
Power maintained
4,5 W
Power non-maintained
1,1 W
Ambient temperature maintained mode
-20 °C to 35 °C
Ambient temperature non-maintained mode
-20 °C to 40 °C

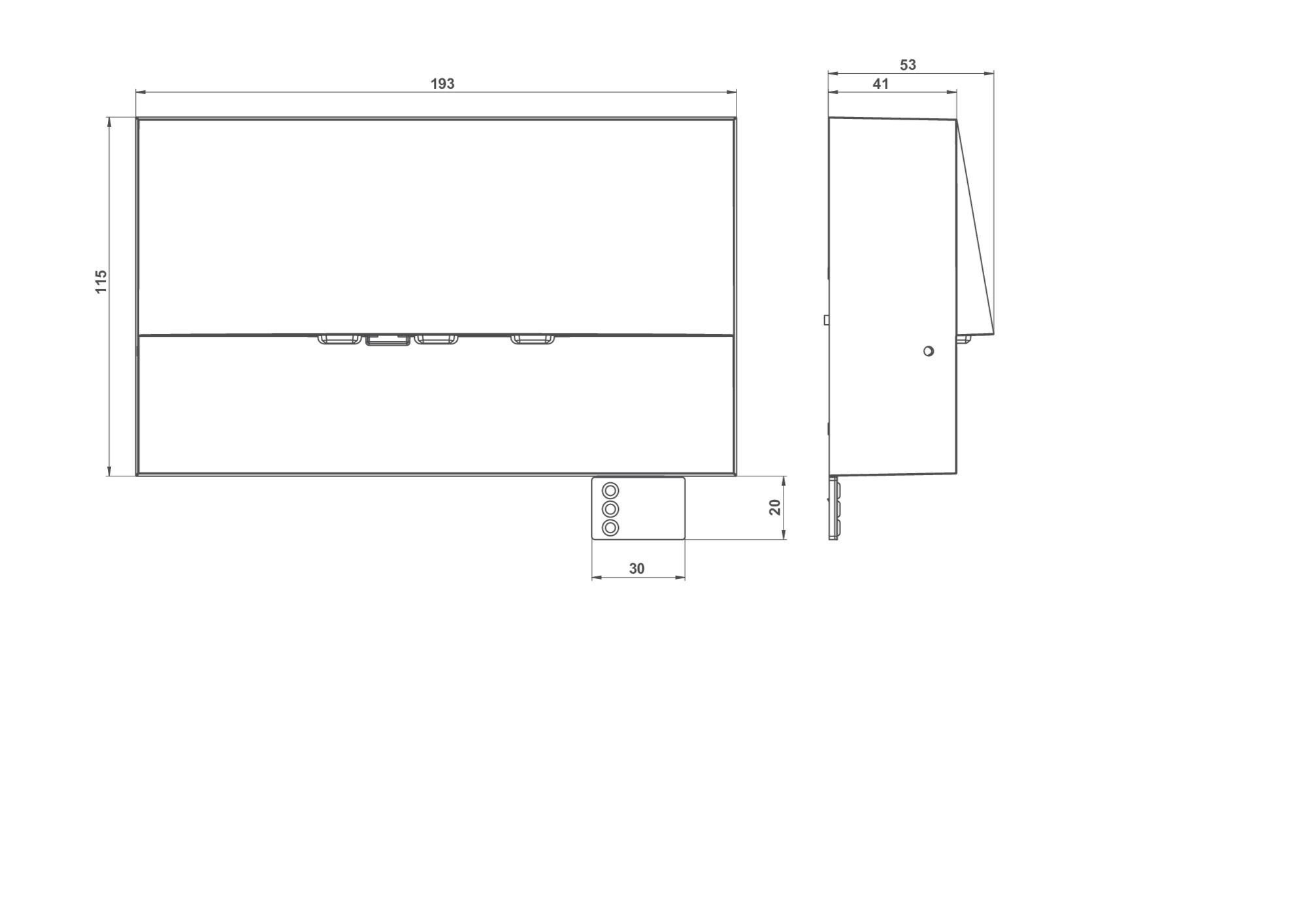

Depth
53 mm
Width
193 mm
Height
115 mm
Weight
0.07
Weight incl. packaging
0.1
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
No
Dimming function
Yes
Luminous flux mains
420 lm
Luminous flux emergency
420 lm
Customs tariff number
94056180
EAN
4260581710972
Luminaire type
Emergency light
Mounting
Wall mounting
Pictograph
No
Illuminant
LED
Housing material
Zinc die-cast
Housing color
Anthracite
Protection type (IP)
IP20
Impact resistance (IK)
4
Certification
WEEE, CE
Insulation class
2
Supply
Centralised power supply systems
Monitoring
Central power supply (ML)
Bridging time
CPS
Battery
/
Operating mode
single luminaire switching
Input voltageAC
230 V
Input frequency
50 / 60 Hz
Input voltage DC
216 V
Power max.
4,5 W
Power maintained
4,5 W
Power non-maintained
1,1 W
Ambient temperature maintained mode
-20 °C to 35 °C
Ambient temperature non-maintained mode
-20 °C to 40 °C
Depth
53 mm
Width
193 mm
Height
115 mm
Weight
0.07
Weight incl. packaging
0.1
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
No
Dimming function
Yes
Luminous flux mains
420 lm
Luminous flux emergency
420 lm
Customs tariff number
94056180
EAN
4260581710972

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
