QCW029ML-BM

General light, Emergency light Centralised power supply systems
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Round zinc die-cast luminaire with integrated motion detector for general-purpose lighting and illuminating escape and emergency routes in accordance with DIN EN 60598-1, DIN EN 60598-2-22 and DIN EN 1838.

A robust variant in a timeless design, suited to indoor and outdoor use. When mounting, the emergency light LED can be swung out without the need for tools, to perfectly illuminate the escape and emergency routes when mounted on a wall, for example.

Control and monitoring via central power supply system. Our motion detector (BM) reliably detects movements and automatically turns on the light in mains operation.


Product data

Luminaire type
General light, Emergency light
Supply
Centralised power supply systems
Mounting
Universal
Monitoring
Central power supply (ML)
Pictograph
No
Bridging time
CPS
Illuminant
LED
Battery
/
Housing material
Zinc die-cast
Operating mode
Permanent circuit
Housing color
White
Input voltageAC
230 V
Protection type (IP)
IP54
Input frequency
50 Hz
Impact resistance (IK)
10
Input voltage DC
216 V
Certification
WEEE, CE, D-Sign
Power max.
19,5 W
Insulation class
1
Power maintained
17,5 W
Power non-maintained
2 W
Ambient temperature maintained mode
-5 °C to 40 °C
Ambient temperature non-maintained mode
-5 °C to 40 °C

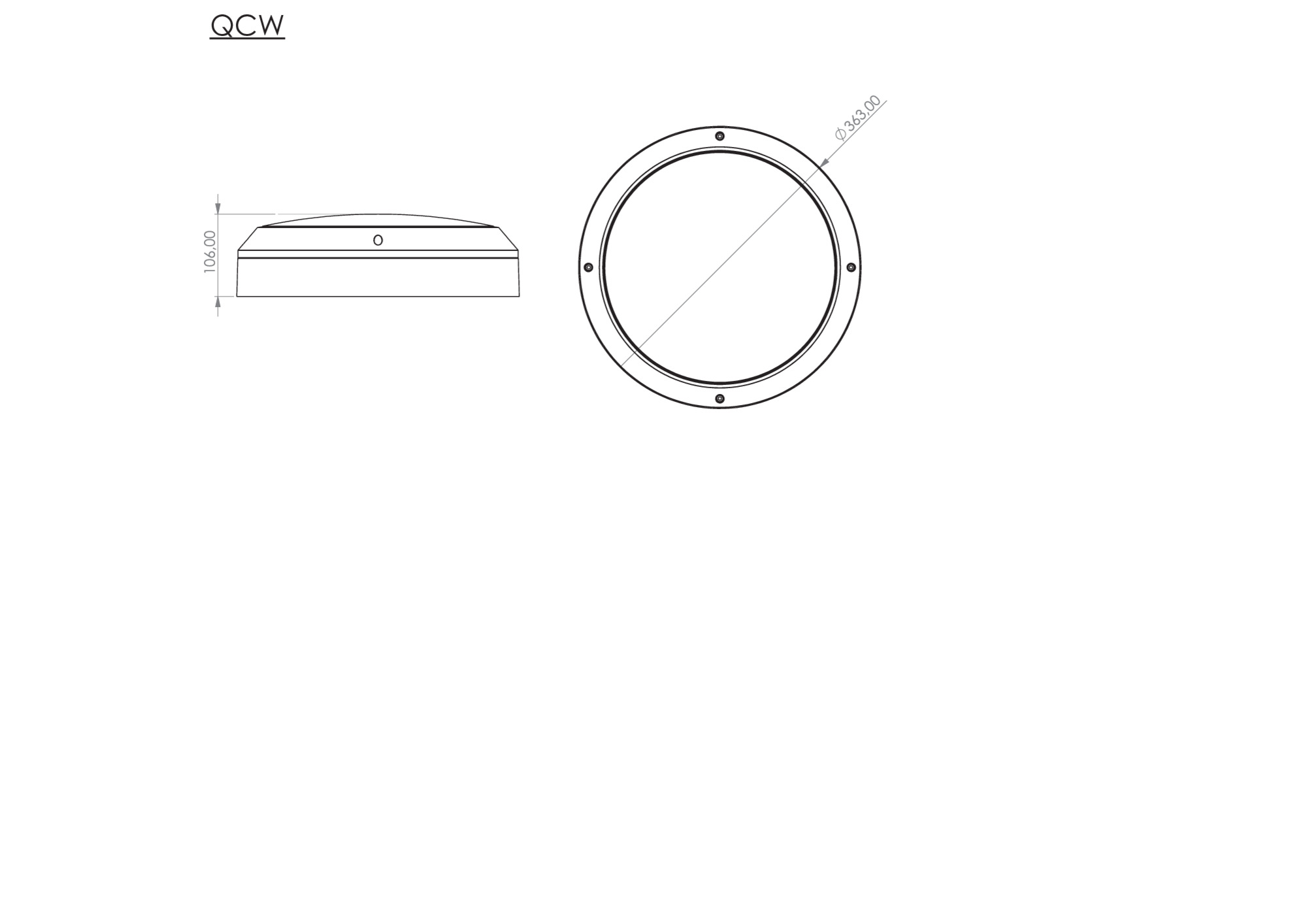

Height
106 mm
Diameter
363 mm
Weight
2.59
Weight incl. packaging
2.92
Connection cross-section
1.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
No
Dimming function
No
Luminous flux mains
1600 lm
Luminous flux emergency
1600 lm
Customs tariff number
94056180
EAN
4260682146137
Luminaire type
General light, Emergency light
Mounting
Universal
Pictograph
No
Illuminant
LED
Housing material
Zinc die-cast
Housing color
White
Protection type (IP)
IP54
Impact resistance (IK)
10
Certification
WEEE, CE, D-Sign
Insulation class
1
Supply
Centralised power supply systems
Monitoring
Central power supply (ML)
Bridging time
CPS
Battery
/
Operating mode
Permanent circuit
Input voltageAC
230 V
Input frequency
50 Hz
Input voltage DC
216 V
Power max.
19,5 W
Power maintained
17,5 W
Power non-maintained
2 W
Ambient temperature maintained mode
-5 °C to 40 °C
Ambient temperature non-maintained mode
-5 °C to 40 °C
Height
106 mm
Diameter
363 mm
Weight
2.59
Weight incl. packaging
2.92
Connection cross-section
1.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
No
Dimming function
No
Luminous flux mains
1600 lm
Luminous flux emergency
1600 lm
Customs tariff number
94056180
EAN
4260682146137

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
