QCW029ML-AZ

General light, Safety luminaire Centralised power supply systems
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Round zinc die-cast LED luminaire, as combined safety luminaire in a timeless design.

Alongside the general-purpose lighting, it also includes an integrated safety light function. When mounting, the emergency light LED can be swung out without the need for tools, to perfectly illuminate the escape and emergency routes when mounted on a wall, for example.

Control and monitoring via central power supply system.


Product data

Luminaire type
General light, Safety luminaire
Supply
Centralised power supply systems
Mounting
Universal
Monitoring
Central power supply (ML)
Pictograph
No
Bridging time
CPS
Illuminant
LED
Battery
/
Housing material
Zinc die-cast
Operating mode
single luminaire switching
Housing color
Anthracite
Input voltageAC
230 V
Protection type (IP)
IP54
Input frequency
50 / 60 Hz
Impact resistance (IK)
10
Input voltage DC
216 V
Certification
WEEE, CE, D-Sign
Power max.
19 W
Insulation class
1
Power DS
17 W
Power BS
1,1 W
Ambient temperature DS
-5 °C to 40 °C
Ambient temperature BS
-5 °C to 40 °C

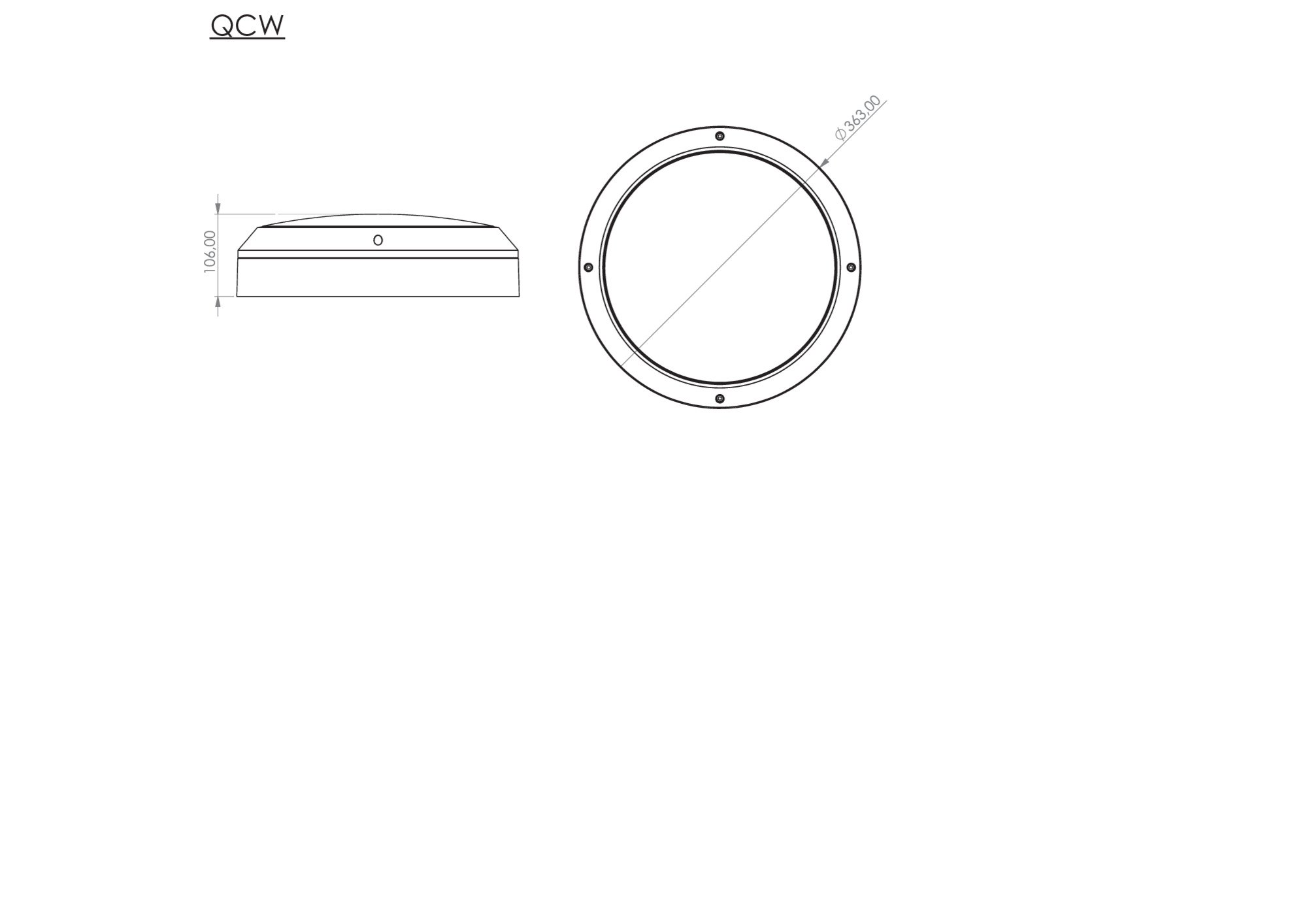

Height
106 mm
Diameter
363 mm
Weight
2.57
Weight incl. packaging
2.9
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
No
Dimming function
Yes
Luminous flux mains
1600 lm
Luminous flux emergency
470 lm
Customs tariff number
94056180
EAN
4260682141620
Luminaire type
General light, Safety luminaire
Mounting
Universal
Pictograph
No
Illuminant
LED
Housing material
Zinc die-cast
Housing color
Anthracite
Protection type (IP)
IP54
Impact resistance (IK)
10
Certification
WEEE, CE, D-Sign
Insulation class
1
Supply
Centralised power supply systems
Monitoring
Central power supply (ML)
Bridging time
CPS
Battery
/
Operating mode
single luminaire switching
Input voltageAC
230 V
Input frequency
50 / 60 Hz
Input voltage DC
216 V
Power max.
19 W
Power DS
17 W
Power BS
1,1 W
Ambient temperature DS
-5 °C to 40 °C
Ambient temperature BS
-5 °C to 40 °C
Height
106 mm
Diameter
363 mm
Weight
2.57
Weight incl. packaging
2.9
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
No
Dimming function
Yes
Luminous flux mains
1600 lm
Luminous flux emergency
470 lm
Customs tariff number
94056180
EAN
4260682141620

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
