QCW009

General light, Safety luminaire Centralised power supply systems
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Round zinc die-cast luminaire for general lighting and illumination of escape and rescue routes according to DIN EN 60598-1, DIN EN 60598-2-22 and DIN EN 1838.

In robust construction and timeless design, suitable for indoor and outdoor use.


Product data

Luminaire type
General light, Safety luminaire
Supply
Centralised power supply systems
Mounting
Universal
Monitoring
Without monitoring
Pictograph
No
Bridging time
CPS
Illuminant
LED
Battery
/
Housing material
Zinc die-cast
Operating mode
Permanent circuit
Housing color
white
Input voltageAC
230 V
Protection type (IP)
IP54
Input frequency
50 Hz
Impact resistance (IK)
10
Input voltage DC
216 V
Certification
WEEE, CE, D-Sign
Power max.
17 W
Insulation class
1
Power DS
17 W
Ambient temperature DS
-5 °C to 40 °C
Ambient temperature BS
-5 °C to 40 °C

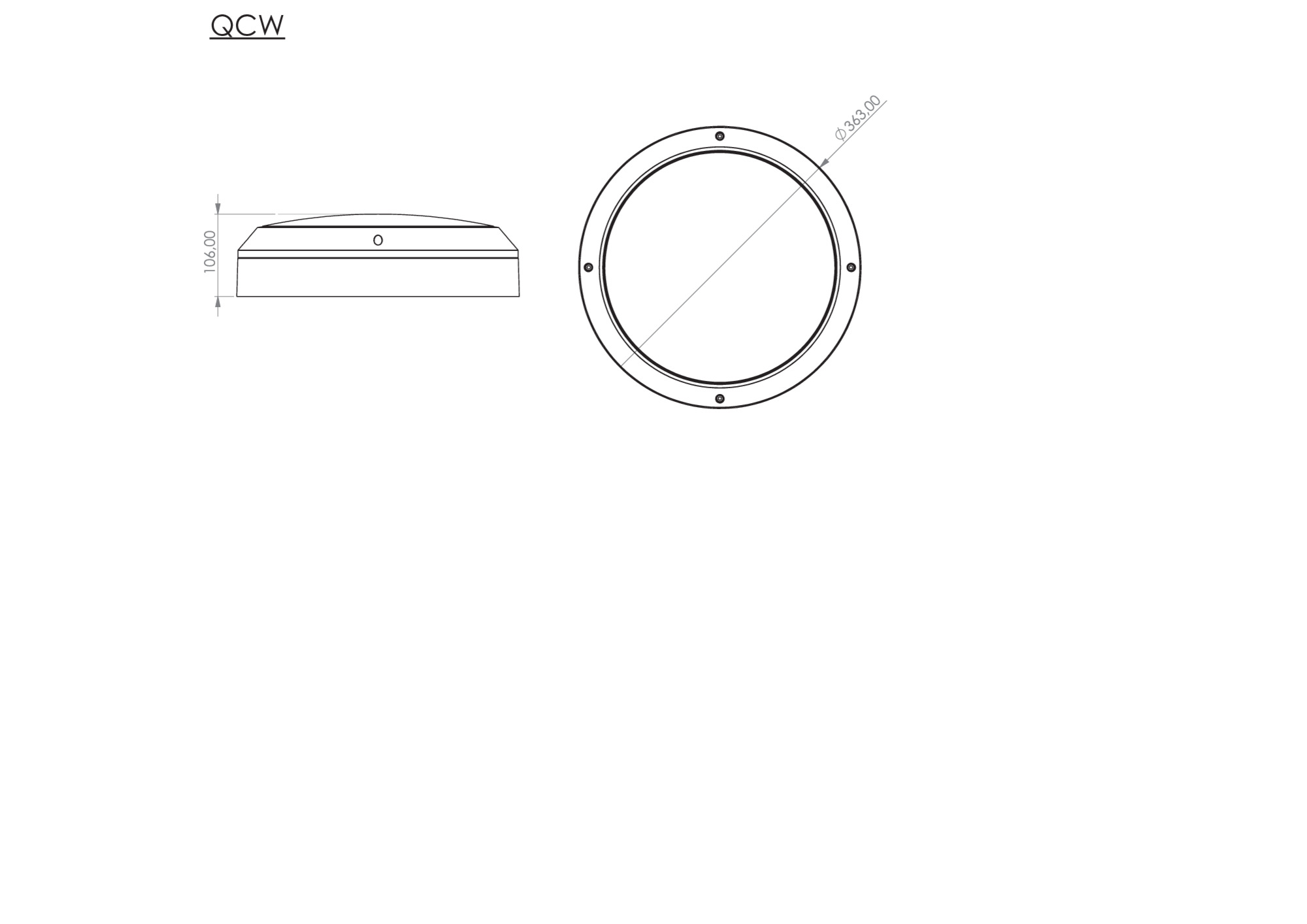

Height
106 mm
Diameter
363 mm
Weight
2.59
Weight incl. packaging
2.92
Connection cross-section
1.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
No
Dimming function
No
Luminous flux mains
1600 lm
Luminous flux emergency
1600 lm
Customs tariff number
94056180
EAN
4260682141675
Luminaire type
General light, Safety luminaire
Mounting
Universal
Pictograph
No
Illuminant
LED
Housing material
Zinc die-cast
Housing color
white
Protection type (IP)
IP54
Impact resistance (IK)
10
Certification
WEEE, CE, D-Sign
Insulation class
1
Supply
Centralised power supply systems
Monitoring
Without monitoring
Bridging time
CPS
Battery
/
Operating mode
Permanent circuit
Input voltageAC
230 V
Input frequency
50 Hz
Input voltage DC
216 V
Power max.
17 W
Power DS
17 W
Ambient temperature DS
-5 °C to 40 °C
Ambient temperature BS
-5 °C to 40 °C
Height
106 mm
Diameter
363 mm
Weight
2.59
Weight incl. packaging
2.92
Connection cross-section
1.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
No
Dimming function
No
Luminous flux mains
1600 lm
Luminous flux emergency
1600 lm
Customs tariff number
94056180
EAN
4260682141675

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
