QAW421SC-SI

General light, Safety luminaire Single Battery
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Round aluminium LED luminaire, general-purpose luminaire with integrated safety light function for illuminating escape and emergency routes.

Automatic monitoring of safety luminaire with SelfControl.


Product data

Luminaire type
General light, Safety luminaire
Supply
Single Battery
Mounting
Universal
Monitoring
SelfControl (SC)
Pictograph
No
Bridging time
1 h
Illuminant
LED
Battery
LiFePO4 3,2 V/3,3 Ah
Housing material
Aluminium
Operating mode
Standby circuit / permanent circuit
Housing color
Anodised aluminium
Input voltageAC
230 V
Protection type (IP)
IP20
Input frequency
50 / 60 Hz
Impact resistance (IK)
≥ 3
Power max.
29 W
Certification
WEEE, CE
Power DS
26,2 W
Insulation class
1
Power BS
0,2 W
Ambient temperature DS
-5 °C - 30 °C
Ambient temperature BS
-5 °C - 35 °C

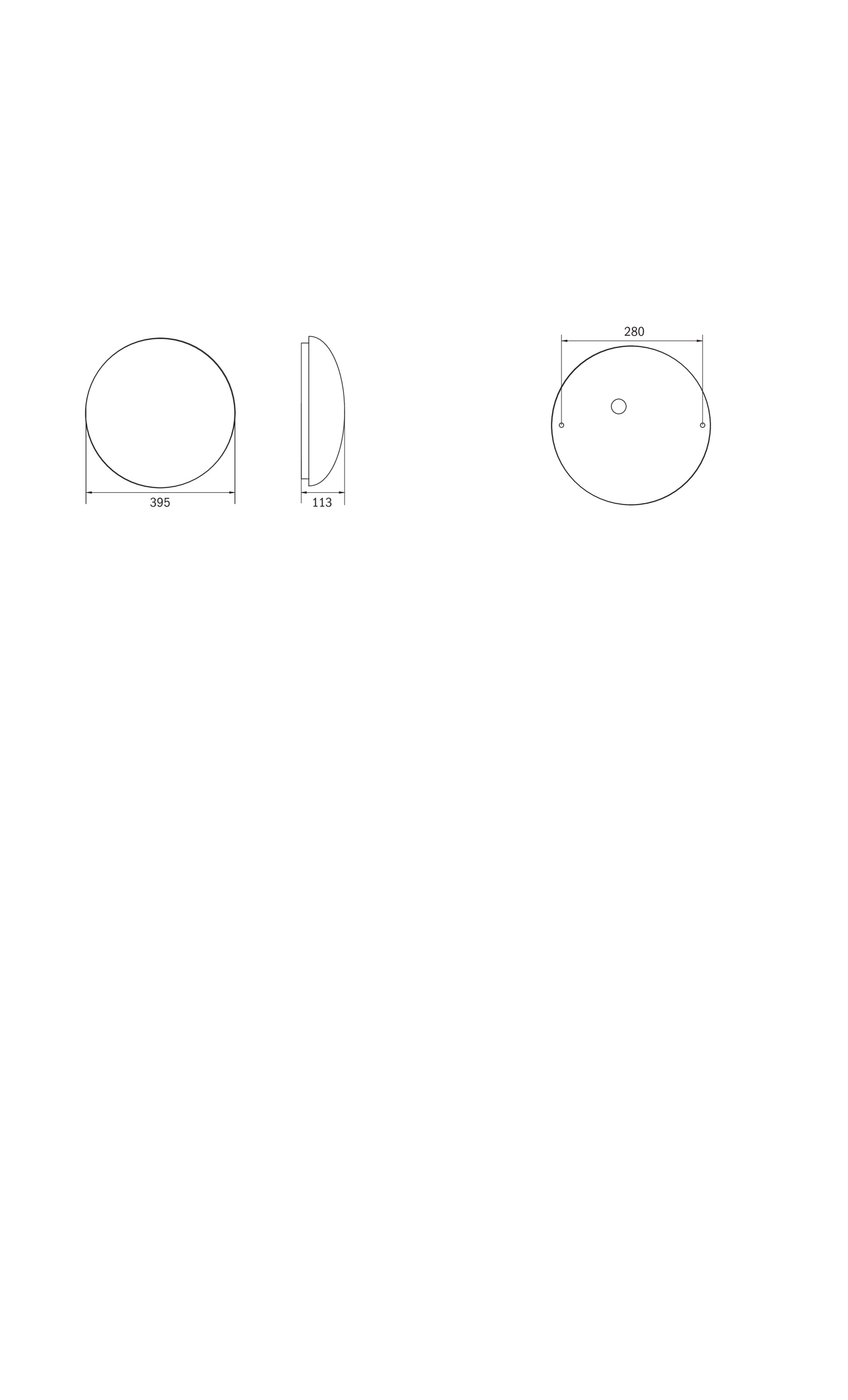

Height
113 mm
Diameter
395 mm
Weight
0.78
Weight incl. packaging
1.1
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
Connector
Dimming function
Yes

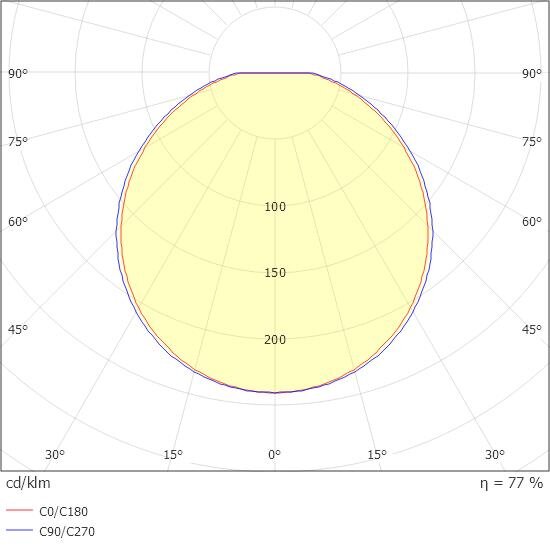

Luminous flux mains
2300 lm
Luminous flux emergency
250 lm
Customs tariff number
94056180
EAN
4262483025185
Luminaire type
General light, Safety luminaire
Mounting
Universal
Pictograph
No
Illuminant
LED
Housing material
Aluminium
Housing color
Anodised aluminium
Protection type (IP)
IP20
Impact resistance (IK)
≥ 3
Certification
WEEE, CE
Insulation class
1
Supply
Single Battery
Monitoring
SelfControl (SC)
Bridging time
1 h
Battery
LiFePO4 3,2 V/3,3 Ah
Operating mode
Standby circuit / permanent circuit
Input voltageAC
230 V
Input frequency
50 / 60 Hz
Power max.
29 W
Power DS
26,2 W
Power BS
0,2 W
Ambient temperature DS
-5 °C - 30 °C
Ambient temperature BS
-5 °C - 35 °C
Height
113 mm
Diameter
395 mm
Weight
0.78
Weight incl. packaging
1.1
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
Connector
Dimming function
Yes
Luminous flux mains
2300 lm
Luminous flux emergency
250 lm
Customs tariff number
94056180
EAN
4262483025185

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
