QAW009-BM

General light, Emergency light Centralised power supply systems
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Round metal luminaire for general-purpose lighting and illuminating escape and emergency routes in accordance with DIN EN 60598-1, DIN EN 60598-2-22 and DIN EN 1838.

This luminaire is designed for central battery operation. During both emergency and mains operation, the LED luminaire is run at 26W, 2300lm, 4000 K.


Product data

Luminaire type
General light, Emergency light
Supply
Centralised power supply systems
Mounting
Universal
Monitoring
Without monitoring
Pictograph
No
Bridging time
CPS
Illuminant
LED
Battery
/
Housing material
Aluminium
Operating mode
Non-maintained / maintained
Housing color
White
Input voltageAC
230 V
Protection type (IP)
IP20
Input frequency
50 Hz
Impact resistance (IK)
≥ 3
Input voltage DC
216 V
Certification
WEEE, CE
Power max.
26 W
Insulation class
1
Power maintained
26 W
Power non-maintained
0 W
Ambient temperature maintained mode
-20 °C to 30 °C
Ambient temperature non-maintained mode
-20 °C to 40 °C

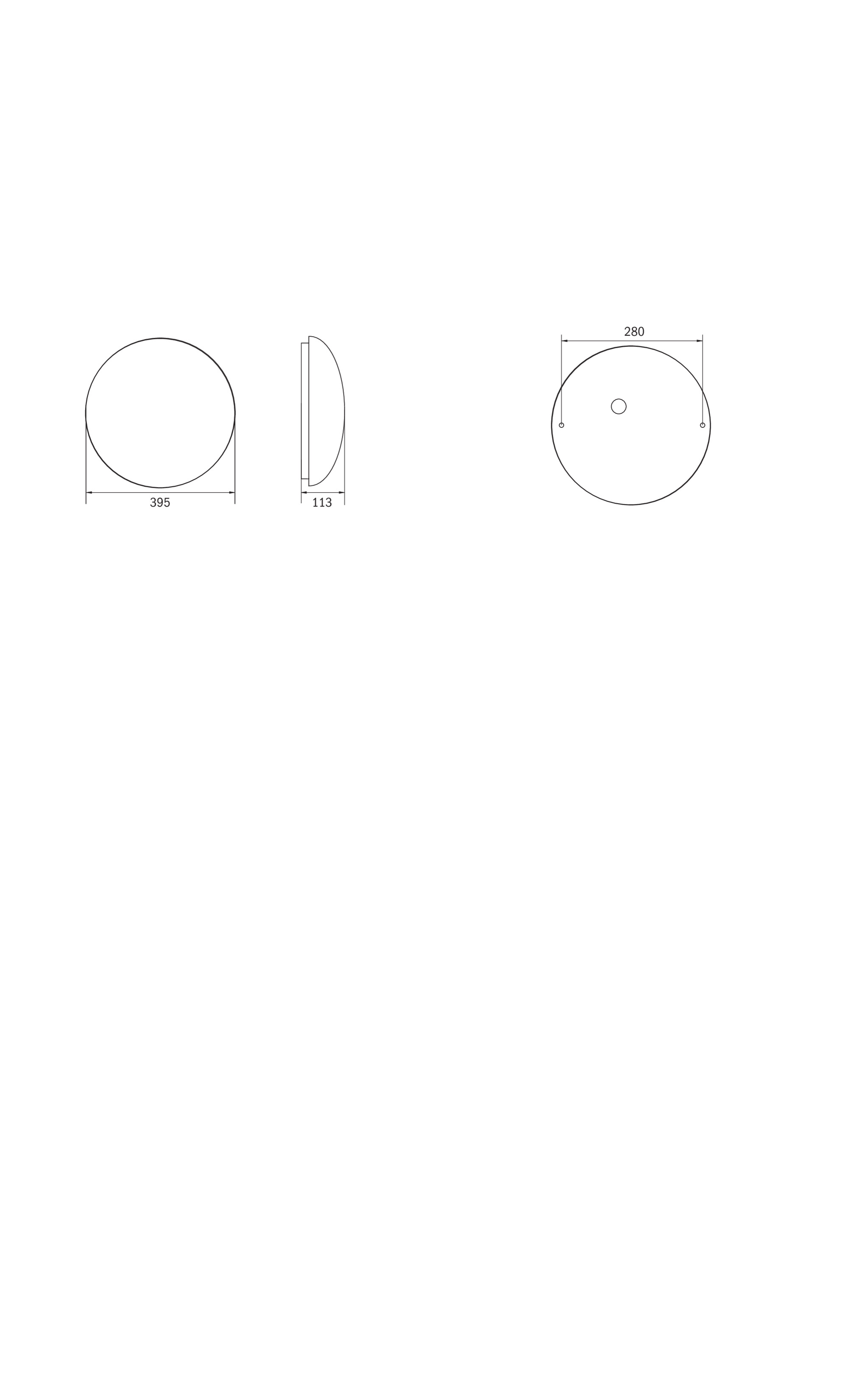

Height
113 mm
Diameter
395 mm
Weight
0.75
Weight incl. packaging
1.07
Connection cross-section
1.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
No
Dimming function
No

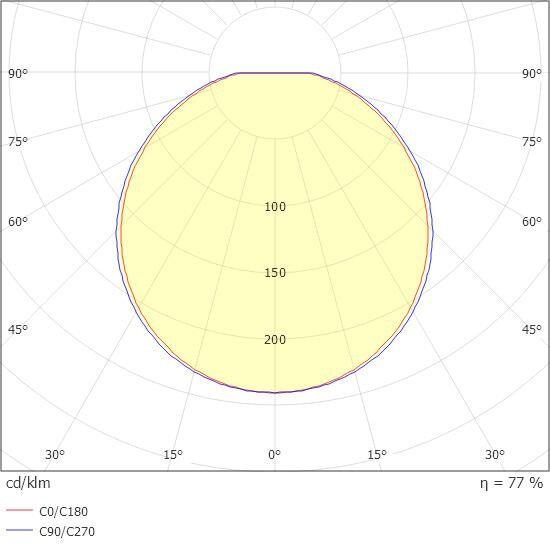

Luminous flux mains
2300 lm
Luminous flux emergency
2300 lm
Customs tariff number
94056180
EAN
4260659563363
Luminaire type
General light, Emergency light
Mounting
Universal
Pictograph
No
Illuminant
LED
Housing material
Aluminium
Housing color
White
Protection type (IP)
IP20
Impact resistance (IK)
≥ 3
Certification
WEEE, CE
Insulation class
1
Supply
Centralised power supply systems
Monitoring
Without monitoring
Bridging time
CPS
Battery
/
Operating mode
Non-maintained / maintained
Input voltageAC
230 V
Input frequency
50 Hz
Input voltage DC
216 V
Power max.
26 W
Power maintained
26 W
Power non-maintained
0 W
Ambient temperature maintained mode
-20 °C to 30 °C
Ambient temperature non-maintained mode
-20 °C to 40 °C
Height
113 mm
Diameter
395 mm
Weight
0.75
Weight incl. packaging
1.07
Connection cross-section
1.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
No
Dimming function
No
Luminous flux mains
2300 lm
Luminous flux emergency
2300 lm
Customs tariff number
94056180
EAN
4260659563363

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
