PMW039

Emergency light Centralised power supply systems
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Plastic safety luminaire with convex shaped surround.

To help with mounting, levelling screws are integrated to compensate for uneven surfaces.

The luminaire can be mounted by fitting on the wall and ceiling as well as fitting in the ceiling in conjunction with the mounting frame available.

The luminaire is fitted with the innovative flexible plug-in system for rapid use of the right lens. The hall lens is supplied with every luminaire. A round lens, spotlight lens and beam lens are available as options.


Product data

Luminaire type
Emergency light
Supply
Centralised power supply systems
Mounting
Universal
Monitoring
Without monitoring
Pictograph
No
Bridging time
CPS
Illuminant
LED
Battery
/
Housing material
Polycarbonate
Operating mode
Permanent circuit
Housing color
White
Input voltageAC
230 V
Protection type (IP)
IP65
Input frequency
50 / 60 Hz
Impact resistance (IK)
6
Input voltage DC
100-254 V
Certification
CE, WEEE, D-Sign, TÜV Rheinland Type approved, ENEC, HACCP
Power max.
9 W
Insulation class
2
Power maintained
9 W
Power non-maintained
0 W
Ambient temperature maintained mode
-5 °C to 40 °C
Ambient temperature non-maintained mode
-5 °C to 40 °C

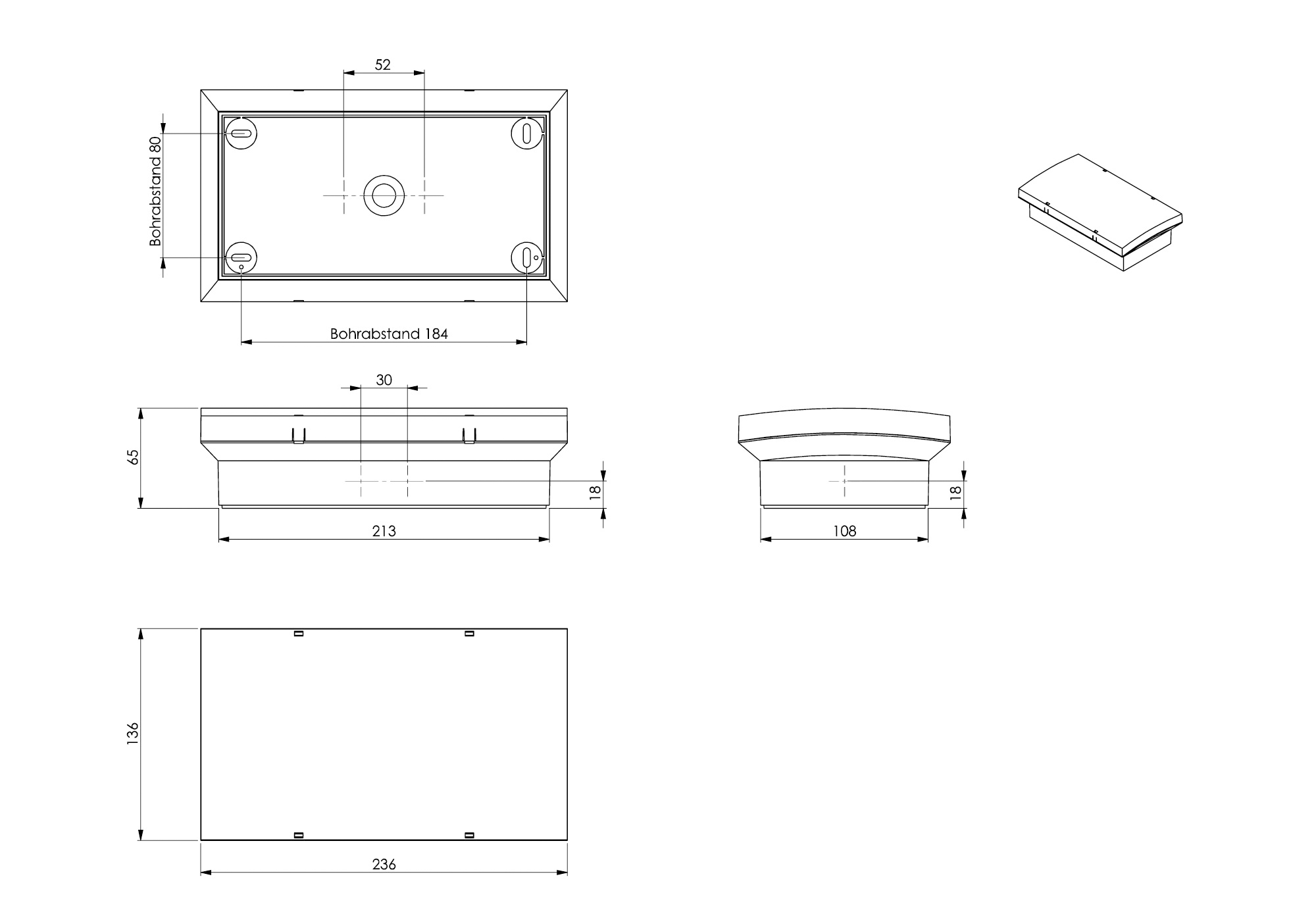

Depth
65 mm
Width
236 mm
Height
136 mm
Weight
0.64
Weight incl. packaging
0.77
Connection cross-section
1.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
No
Dimming function
No
Luminous flux mains
780 lm
Luminous flux emergency
780 lm
Customs tariff number
94056120
EAN
4260766551789
Luminaire type
Emergency light
Mounting
Universal
Pictograph
No
Illuminant
LED
Housing material
Polycarbonate
Housing color
White
Protection type (IP)
IP65
Impact resistance (IK)
6
Certification
CE, WEEE, D-Sign, TÜV Rheinland Type approved, ENEC, HACCP
Insulation class
2
Supply
Centralised power supply systems
Monitoring
Without monitoring
Bridging time
CPS
Battery
/
Operating mode
Permanent circuit
Input voltageAC
230 V
Input frequency
50 / 60 Hz
Input voltage DC
100-254 V
Power max.
9 W
Power maintained
9 W
Power non-maintained
0 W
Ambient temperature maintained mode
-5 °C to 40 °C
Ambient temperature non-maintained mode
-5 °C to 40 °C
Depth
65 mm
Width
236 mm
Height
136 mm
Weight
0.64
Weight incl. packaging
0.77
Connection cross-section
1.5 mm²
Switching input
No
Emergency light blocking
No
Battery connection
No
Dimming function
No
Luminous flux mains
780 lm
Luminous flux emergency
780 lm
Customs tariff number
94056120
EAN
4260766551789

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
