PFW413WL-TT

Exit sign Single Battery
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

Robust plastic emergency exit sign or safety luminaire.

Use as an emergency exit sign luminaire for wall mounting.

Or without the use of pictograms as a safety luminaire with the prismatic cover included, preferably for ceiling mounting.

Wireless central control and monitoring for large installations of up to 50,000 luminaires with Wireless Professional. The innovative integrated lens holder with a rapid fitting fixture permits the flexible use of various lens types. Using the right lens allows the distribution of light to be matched perfectly to the application and simplifies illumination which satisfies all relevant standards. A round lens and hall lens are supplied with every luminaire, allowing it to be adapted perfectly to the respective mounting situation. Other lenses, such as a spotlight lens, beam lens or H lens, are available as options. The luminaire is fitted with the innovative flexible plug-in system for rapid use of the right lens. The hall lens is supplied with every luminaire. A round lens, spotlight lens and beam lens are available as options.


Product data

Luminaire type
Exit sign
Insulation class
1
Mounting
Wall mounting
Supply
Single Battery
Recognition distance
24 m
Monitoring
Wireless Professional (WL)
Pictograph
Set
Bridging time
3 h
Illuminant
LED
Battery
/
Housing material
Plastic
Operating mode
Standby circuit / permanent circuit
Housing color
white
Input voltageAC
230 V
Protection type (IP)
IP65
Input frequency
50 Hz
Impact resistance (IK)
5
Power max.
5,5 W
Certification
WEEE, CE, D-Sign
Power DS
3,6 W
Power BS
0,7 W
Ambient temperature DS
-15 °C - 40 °C
Ambient temperature BS
-15 °C - 40 °C

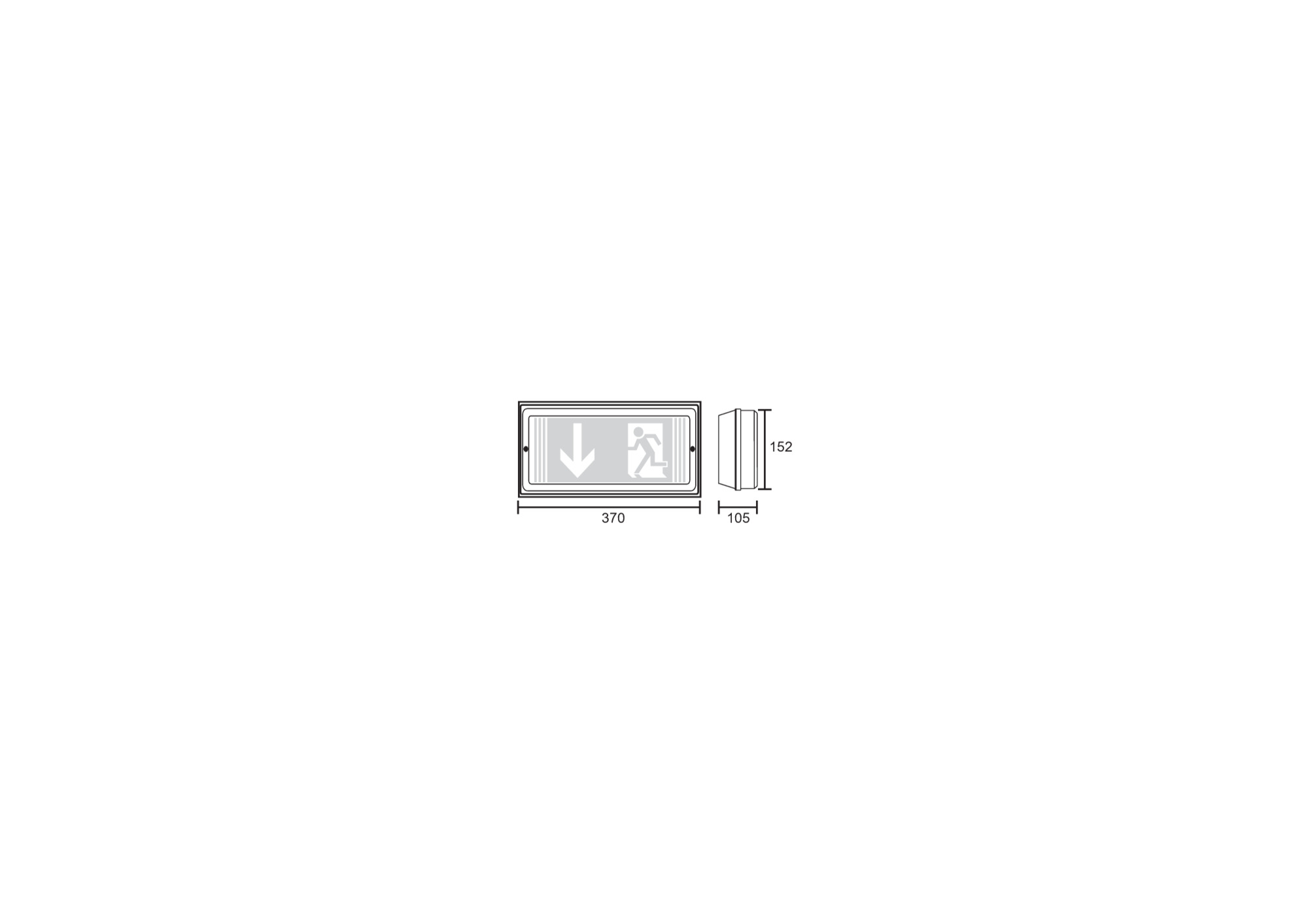

Depth
370 mm
Width
105 mm
Height
152 mm
Weight
0.94
Weight incl. packaging
1.07
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
Yes
Battery connection
Connector
Dimming function
Yes
EAN
4260766557910
Luminaire type
Exit sign
Mounting
Wall mounting
Recognition distance
24 m
Pictograph
Set
Illuminant
LED
Housing material
Plastic
Housing color
white
Protection type (IP)
IP65
Impact resistance (IK)
5
Certification
WEEE, CE, D-Sign
Insulation class
1
Supply
Single Battery
Monitoring
Wireless Professional (WL)
Bridging time
3 h
Battery
/
Operating mode
Standby circuit / permanent circuit
Input voltageAC
230 V
Input frequency
50 Hz
Power max.
5,5 W
Power DS
3,6 W
Power BS
0,7 W
Ambient temperature DS
-15 °C - 40 °C
Ambient temperature BS
-15 °C - 40 °C
Depth
370 mm
Width
105 mm
Height
152 mm
Weight
0.94
Weight incl. packaging
1.07
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
Yes
Battery connection
Connector
Dimming function
Yes
EAN
4260766557910

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic


Accessories
