MMWT009ML

Exit sign, Emergency light Centralised power supply systems
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications
Characteristics and certifications

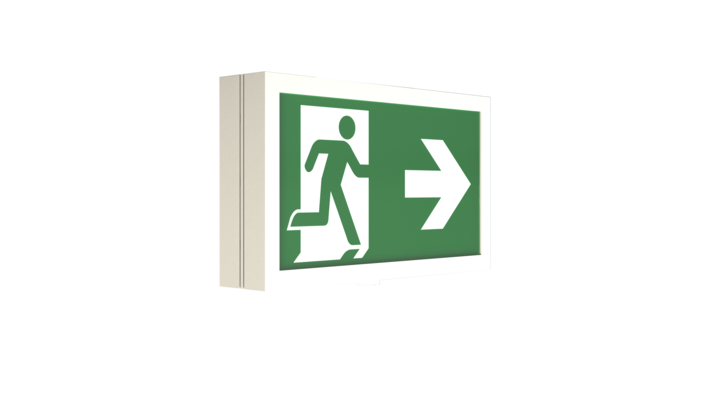

Slim, high-quality, zinc die-cast emergency exit sign luminaire with a modern design for wall mounting.

Control and monitoring via central power supply system. Planning certainty is provided by tool-free, variable use of the pictograms on site. A set of pictograms corresponding to DIN ISO 7010 (arrow to the right, left, up and down) is supplied as standard.


Product data

Luminaire type
Exit sign, Emergency light
Supply
Centralised power supply systems
Mounting
Wall mounting
Monitoring
Central power supply (ML)
Recognition distance
21 m
Bridging time
CPS
Pictograph
Set
Battery
/
Housing material
Zinc die-cast
Operating mode
single luminaire switching
Housing color
White
Input voltageAC
230 V
Protection type (IP)
IP40
Input frequency
50 / 60 Hz
Impact resistance (IK)
≥ 3
Input voltage DC
216 V
Certification
WEEE, CE
Power max.
3,9 W
Insulation class
1
Power maintained
2,9 W
Power non-maintained
1,1 W
Ambient temperature maintained mode
-20 °C to 40 °C
Ambient temperature non-maintained mode
-20 °C to 40 °C
Depth
48 mm
Width
236 mm
Height
138 mm
Weight
0.07
Weight incl. packaging
0.185
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
No
Dimming function
Yes
Luminous flux emergency
100 lm
Customs tariff number
94056180
EAN
4260659563073
Luminaire type
Exit sign, Emergency light
Mounting
Wall mounting
Recognition distance
21 m
Pictograph
Set
Housing material
Zinc die-cast
Housing color
White
Protection type (IP)
IP40
Impact resistance (IK)
≥ 3
Certification
WEEE, CE
Insulation class
1
Supply
Centralised power supply systems
Monitoring
Central power supply (ML)
Bridging time
CPS
Battery
/
Operating mode
single luminaire switching
Input voltageAC
230 V
Input frequency
50 / 60 Hz
Input voltage DC
216 V
Power max.
3,9 W
Power maintained
2,9 W
Power non-maintained
1,1 W
Ambient temperature maintained mode
-20 °C to 40 °C
Ambient temperature non-maintained mode
-20 °C to 40 °C
Depth
48 mm
Width
236 mm
Height
138 mm
Weight
0.07
Weight incl. packaging
0.185
Connection cross-section
2.5 mm²
Switching input
Yes
Emergency light blocking
No
Battery connection
No
Dimming function
Yes
Luminous flux emergency
100 lm
Customs tariff number
94056180
EAN
4260659563073

Recommended areas of application

Educational institutions
Places of assembly
Sports facilities
Car park
Retail trade
Hotel & Gastronomy
Office building
Industry
Medical & care facilities
Transport & Traffic
